2012 Yamaha YZFR1 (YZFR1BW) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2012 Yamaha YZFR1 (YZFR1BW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

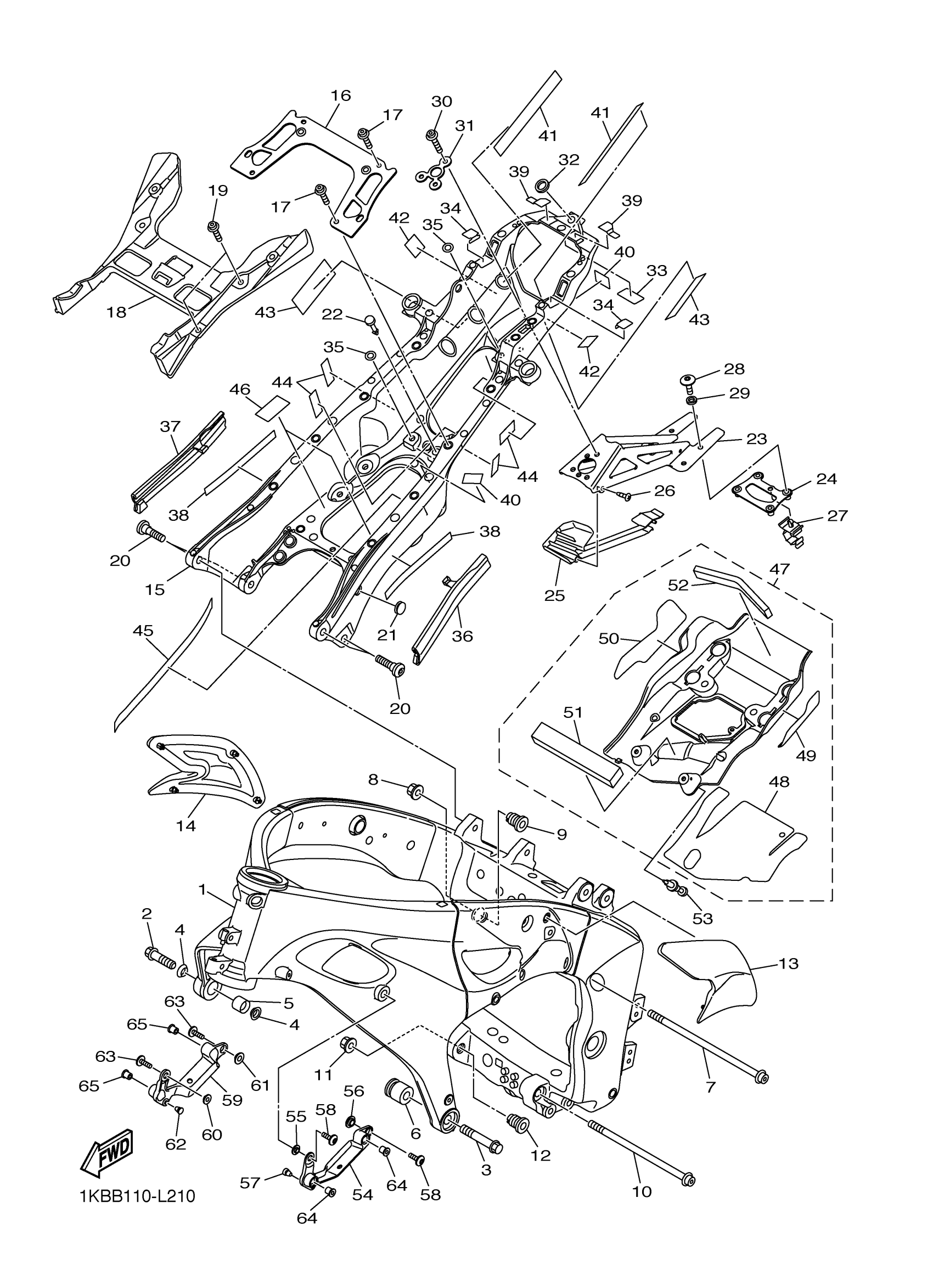

2012 Yamaha YZFR1 (YZFR1BW) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

14B-21110-20-00

1
Out of stock

2

BOLT, FLANGE

90105-12062-00

1

$13.08

In stock

3

BOLT, FLANGE

95812-12080-00

1

$4.74

In stock

4

BOSS, ENGINE MOUNT

14B-21414-00-00

1

$19.35

In stock

5

BOSS, ENGINE MOUNT

14B-21424-00-00

1

$26.89

In stock

6

BOSS

14B-2141R-00-00

1
Out of stock

7

BOLT, HEXAGON SOCKET HEAD

90110-10024-00

1
Out of stock

8

NUT

90179-10028-00

1
Out of stock

9

BOLT, ENGINE ADJUSTING

14B-21495-00-00

1
Out of stock

10

BOLT, HEXAGON SOCKET HEAD

90110-10023-00

1
Out of stock

11

NUT

90179-10028-00

1
Out of stock

12

BOLT, ENGINE ADJUSTING

14B-21495-00-00

1
Out of stock

13

SEAT, KNEE GRIP 1

14B-24121-00-00

—
Out of stock

14

SEAT, KNEE GRIP 2

14B-24122-00-00

—
Out of stock

15

REAR FRAME COMP.

14B-21190-00-00

1
Out of stock

16

BRACKET

14B-21131-00-00

—
Out of stock

17

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

—

$7.45

In stock

18

REINF., FRAME RR. ASSY

1KB-Y212E-00-00

—
Out of stock

19

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

—

$7.45

In stock

20

SCREW 1

1KB-211C5-09-00

—
Out of stock

21

PLUG

90338-15004-00

—

$6.26

In stock

22

RIVET (8M6)

90269-04025-00

—
Out of stock

23

REAR STAY COMP.

14B-21640-10-00

—
Out of stock

24

STAY, PLATE

14B-21682-00-00

—
Out of stock

25

COVER, REAR FENDER 1

14B-2163A-01-00

—
Out of stock

26

SCREW, TAPPING

97702-50016-00

—

$1.98

In stock

27

CLAMP(4NX)

90464-14228-00

—

$4.29

In stock

28

BOLT,HEX. SOCKET BUTTON

90111-06129-00

—

$6.25

In stock

29

WASHER 6464337400

90201-06040-00

1
Out of stock

30

BOLT

90109-06031-00

1

$1.92

In stock

31

WASHER, SPECIAL 1

14B-21615-00-00

—
Out of stock

32

DAMPER

13S-21746-00-00

—

$6.46

In stock

33

SEAL 1

14B-22873-00-00

—

$2.53

In stock

34

SEAL 2

14B-22874-00-00

—
Out of stock

35

SEAL 3

13S-2173M-00-00

—

$6.18

In stock

36

SEAL 4

1KB-22876-00-00

—
Out of stock

37

SEAL, 5

1KB-22877-00-00

—
Out of stock

38

TAPE, 2

13S-21567-00-00

—

$13.11

In stock

39

SEAL, 7

14B-22879-00-00

—
Out of stock

40

DAMPER 3

14B-28425-00-00

—
Out of stock

41

DAMPER, PLATE 1

3C5-2414H-00-00

—

$4.74

In stock

42

DAMPER 2

14B-28227-00-00

—

$1.98

In stock

43

DAMPER 1

2S2-2214F-70-00

—
Out of stock

44

DAMPER 3

14B-28237-00-00

—
Out of stock

45

DAMPER, PLATE

90520-03010-00

—
Out of stock

46

DAMPER 4

14B-28435-00-00

—

$2.42

In stock

47

COVER ASSY 2

14B-2110N-20-00

—
Out of stock

48

SEAT 1

14B-2112B-00-00

—
Out of stock

49

SHEET,2

14B-2113C-00-00

—
Out of stock

50

. SHEET, 3

14B-2113D-00-00

1
Out of stock

51

DAMPER, PLATE

90520-15001-00

—
Out of stock

52

DAMPER, PLATE

90520-15004-00

—
Out of stock

53

RIVET

90269-06016-00

—
Out of stock

54

BRACKET 3

14B-2836F-00-00

—
Out of stock

55

COLLAR

90387-06217-00

—
Out of stock

56

COLLAR

90387-08079-00

—
Out of stock

57

PLUG(1NL)

90338-07180-00

—

$5.68

In stock

58

BOLT,HEX. SOCKET BUTTON

90111-06140-00

—

$1.78

In stock

59

BRACKET 4

14B-2836G-00-00

—
Out of stock

60

COLLAR

90387-06217-00

—
Out of stock

61

COLLAR

90387-08079-00

—
Out of stock

62

PLUG(1NL)

90338-07180-00

—

$5.68

In stock

63

BOLT,HEX. SOCKET BUTTON

90111-06140-00

—

$1.78

In stock

64

NUT

90179-05013-00

—
Out of stock

65

NUT

90179-05013-00

—
Out of stock
