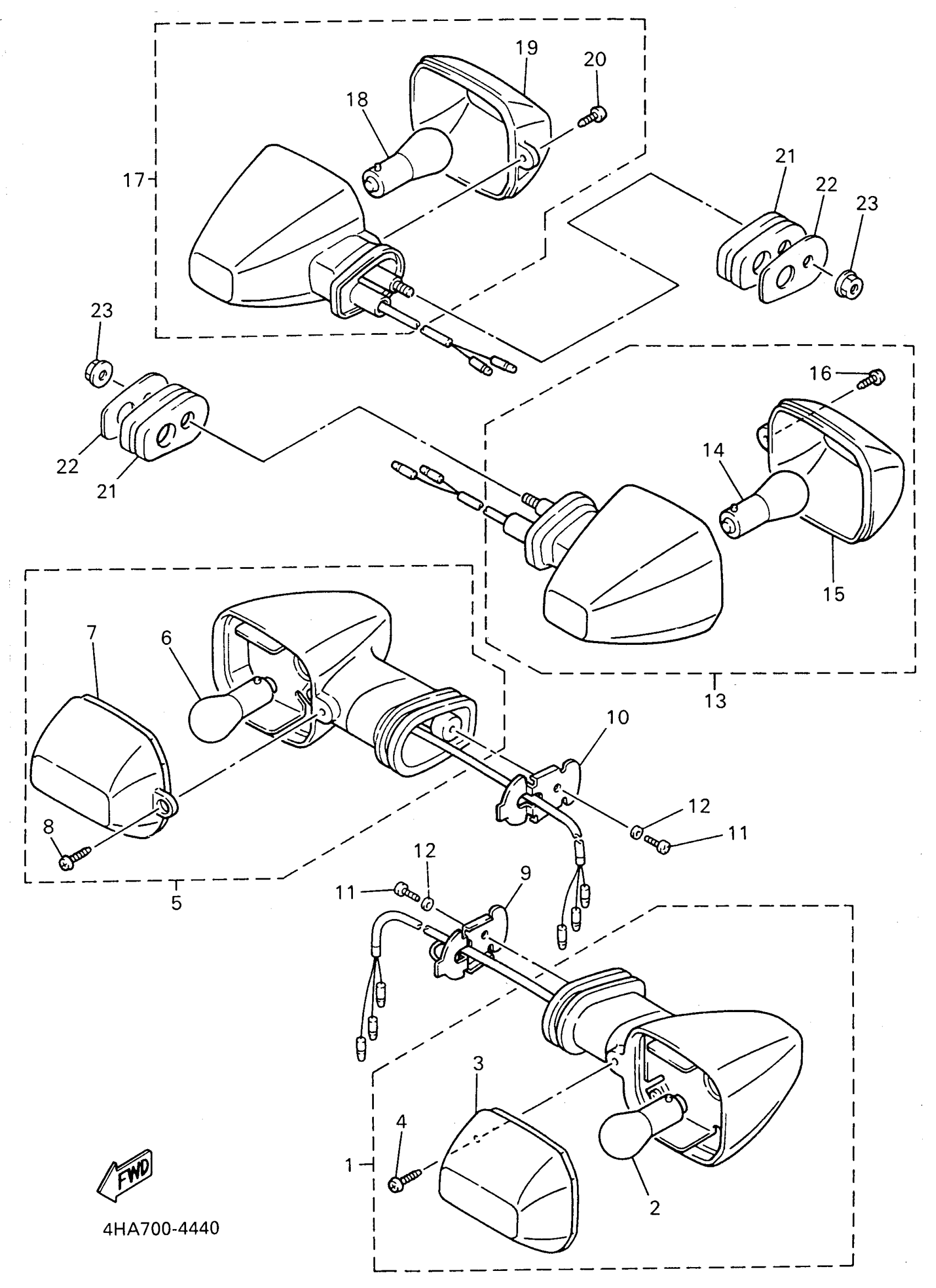

Yamaha YZF750RHC (YZF750R CA) 1996 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

4JH-83310-11-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$10.02

3

LENS, FLASHER

4JH-83332-10-00

$18.42

4

SCREW, PAN TAP.2 SLIT

97707-40610-00

$6.69

5

FRONT FLASHER LIGHT ASSY 2

4JH-83320-11-00

Unavailable

6

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$10.02

7

LENS, FLASHER 2

4JH-83342-10-00

$18.48

8

SCREW, PAN TAP.2 SLIT

97707-40610-00

$6.69

9

STAY, FLASHER 1

4JH-83318-10-00

Unavailable

10

STAY, FLASHER 1

4JH-83318-10-00

Unavailable

11

SCREW, PAN HEAD(JG1)

98507-04008-00

$1.45

12

WASHER(JF2)

92907-04600-00

$1.23

13

REAR FLASHER LIGHT ASSY 1

4JH-83330-20-00

Unavailable

14

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

15

LENS, FLASHER

4JH-83332-10-00

$18.42

16

SCREW, PAN TAP.2 SLIT

97707-40610-00

$6.69

17

FLASHER LIGHT ASSY 2

4JH-83340-20-00

Unavailable

18

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

19

LENS, FLASHER 2

4JH-83342-10-00

$18.48

20

SCREW, PAN TAP.2 SLIT

97707-40610-00

$6.69

21

PLUG, BLIND

4FM-83345-00-00

Unavailable

22

STAY, FLASHER 2

4FM-83369-00-00

Unavailable

23

NUT, FLANGE(4MV)

95707-06500-00

Unavailable
