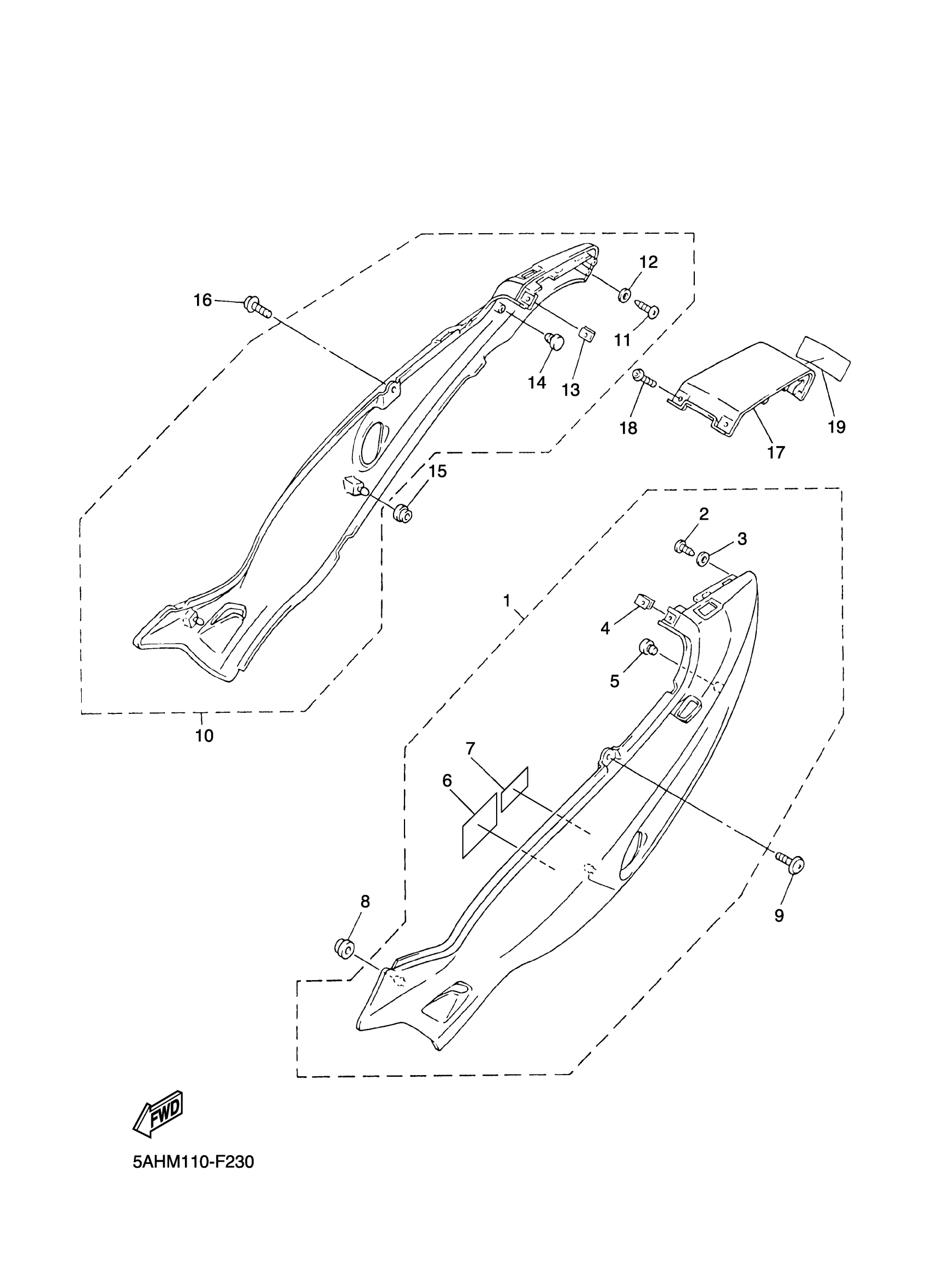

Yamaha YZF600RWC (YZF600R CA) 5AHN 2007 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

4TV-Y2171-1T-P4

Unavailable

1

COVER, SIDE 1 (DEEP PURPLISH BLUE METALLIC C)

4TV-Y2171-1V-P4

Unavailable

2

SCREW, TRUSS TAP.

97707-40010-00

$0.36

3

WASHER, PLATE

90201-042E0-00

$6.29

4

NUT, SPRING

90183-051A0-00

$2.49

5

PLUG (17J)

90338-10132-00

Unavailable

6

. PLATE, EPA 2 (CALIFORNIA)

5AH-2179R-A0-00

Unavailable

6

. PLATE, EPA (NON CALIFORNIA)

5AH-2179W-A0-00

Unavailable

7

PLATE, ROUTING 2

4YN-21686-00-00

$4.02

8

GROMMET(4FU)

90480-13567-00

$3.62

9

SCREW, W/WASHER (4L0)

90159-06060-00

$5.75

10

COVER, SIDE 2 (DEEP PURPLISH BLUE METALLIC C)

4TV-Y2172-P1-P4

Unavailable

11

SCREW, TRUSS TAP.

97707-40010-00

$0.36

12

WASHER, PLATE

90201-042E0-00

$6.29

13

NUT, SPRING

90183-051A0-00

$2.49

14

PLUG (17J)

90338-10132-00

Unavailable

15

GROMMET(4FU)

90480-13567-00

$3.62

16

SCREW, W/WASHER (4L0)

90159-06060-00

$5.75

17

COVER, REAR FENDER (DEEP PURPLISH BLUE METALLIC C)

4TV-21651-00-P2

Unavailable

18

SCREW, BINDING(3XV)

90154-05059-00

Unavailable

19

EMBLEM, YAMAHA

99241-00080-00

Unavailable
