Partiron

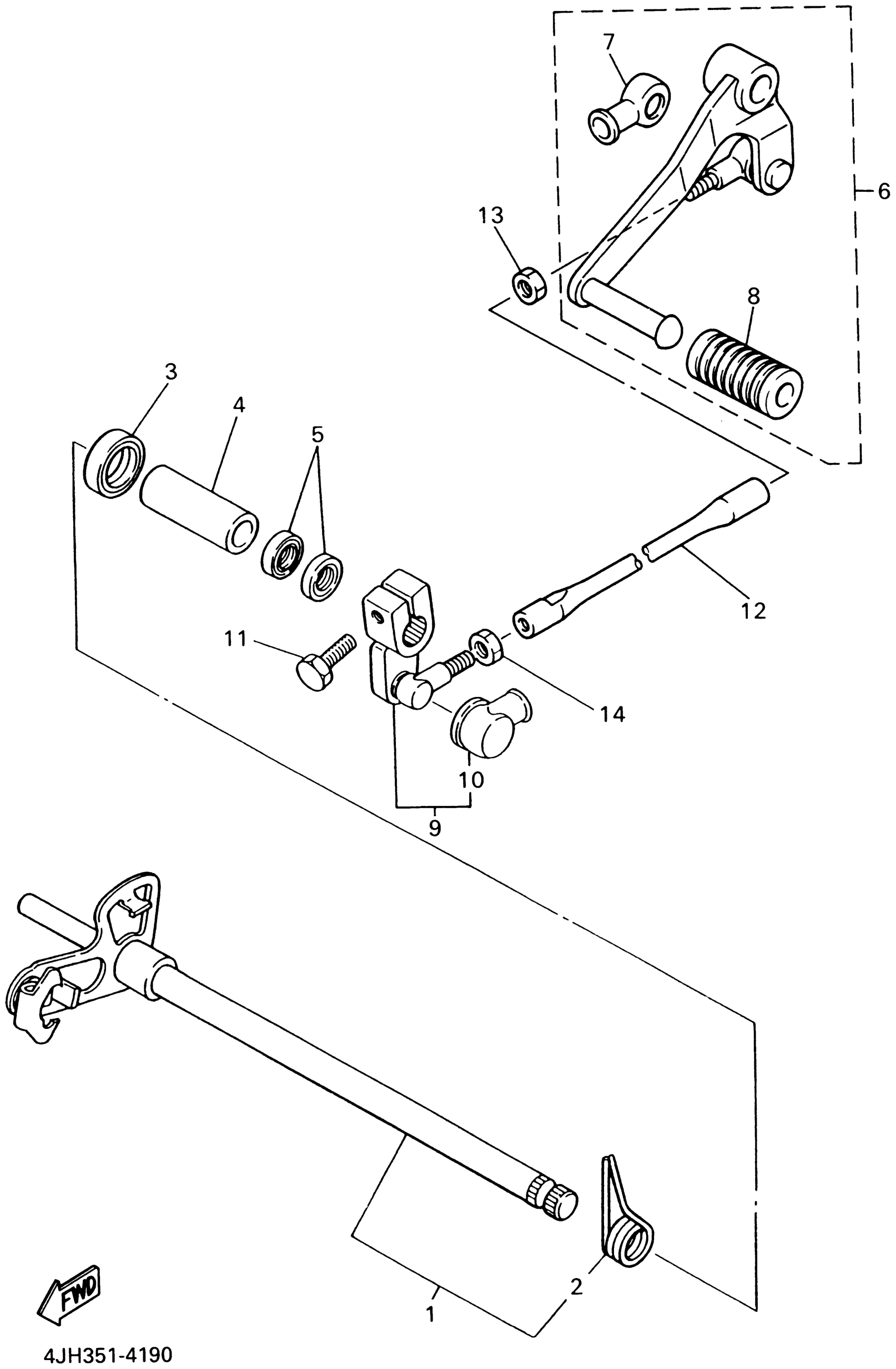

Yamaha YZF600RPC (YZF600R CA) 5AHC 2002 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT SHAFT ASSY

4JH-18101-02-00

Unavailable

2

SPRING, TORSION

90508-32142-00

$4.48

3

SEAL, OIL (30X)

93102-12321-00

$9.45

4

SPACER (5F7)

90560-12211-00

$7.77

5

OIL SEAL

93109-12075-00

$7.79

6

SHIFT PEDAL ASSY

4JH-18110-01-00

Unavailable

7

COVER, DUST

2H9-18154-00-00

$5.12

8

COVER, CHANGE PEDAL

132-18113-01-00

$5.96

9

SHIFT SHAFT ASSY

4JH-18130-00-00

Unavailable

10

COVER, DUST

2H9-18154-00-00

$5.12

11

BOLT, HEXAGON

97017-06020-00

$2.37

12

ROD, SHIFT

4JH-18115-01-00

Unavailable

13

NUT(1KT)

90170-08358-00

$6.22

14

. NUT

95380-08700-00

$3.05
