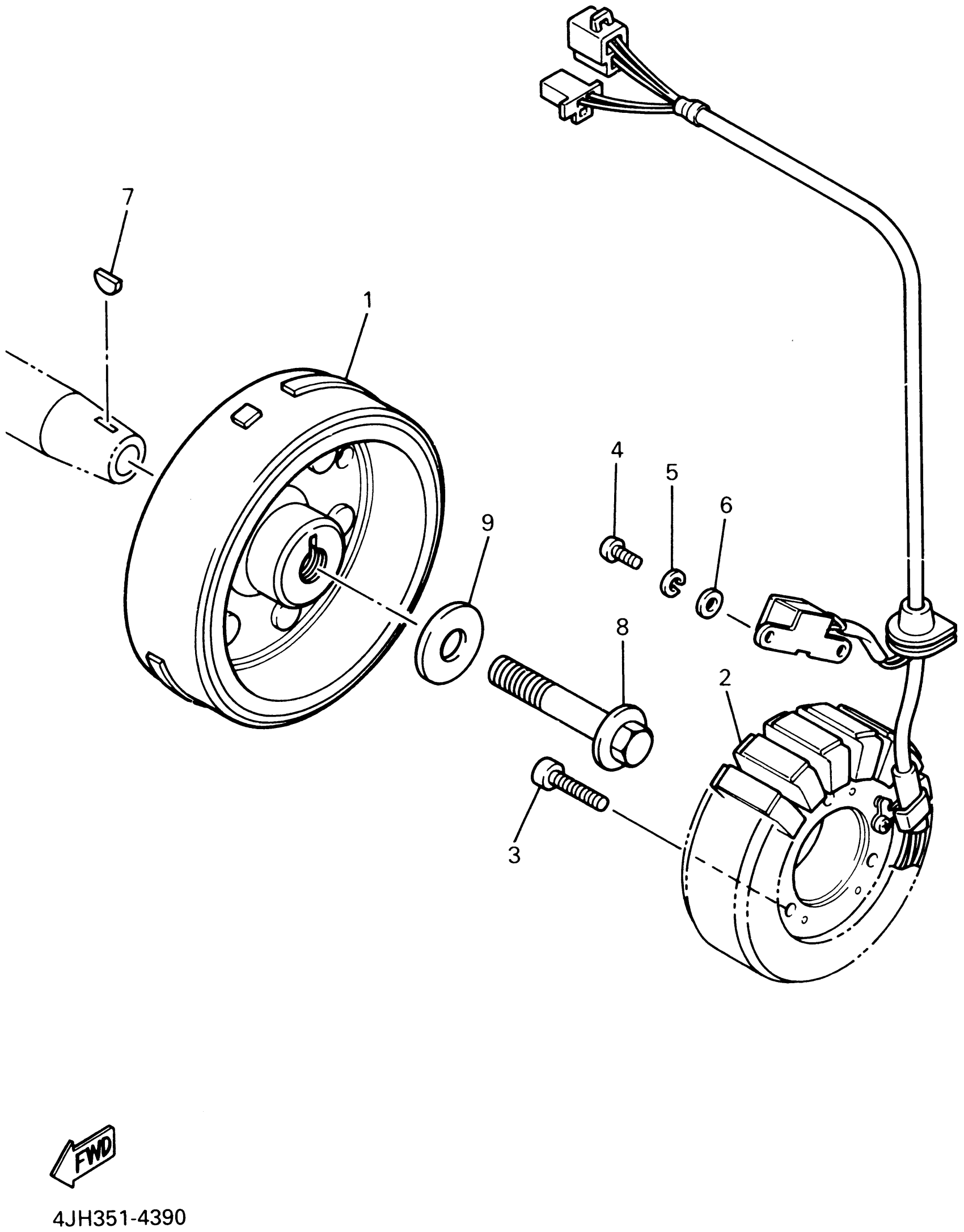

Yamaha YZF600RPC (YZF600R CA) 5AHC 2002 GENERATOR Diagram

#

Description
Price

1

ROTOR ASSY

4TV-81450-00-00

Unavailable

2

STATOR ASSY

4TV-81410-01-00

Unavailable

3

BOLT, BUTTON

92017-06030-00

$6.22

4

SCREW, PAN HEAD(JJ6)

98507-05016-00

$1.31

5

WASHER(1RW)

92907-05600-00

$0.77

6

WASHER PLATE 338839440000

90201-05027-00

Unavailable

7

KEY, WOODRUFF(1WG)

90280-03047-00

$4.54

8

BOLT, WASHER BASED(3LD)

90105-12584-00

Unavailable

9

WASHER (838)

90201-12191-00

$5.70
