1998 Yamaha YZF600R CA (YZF600RKC) Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 1998 Yamaha YZF600R CA (YZF600RKC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

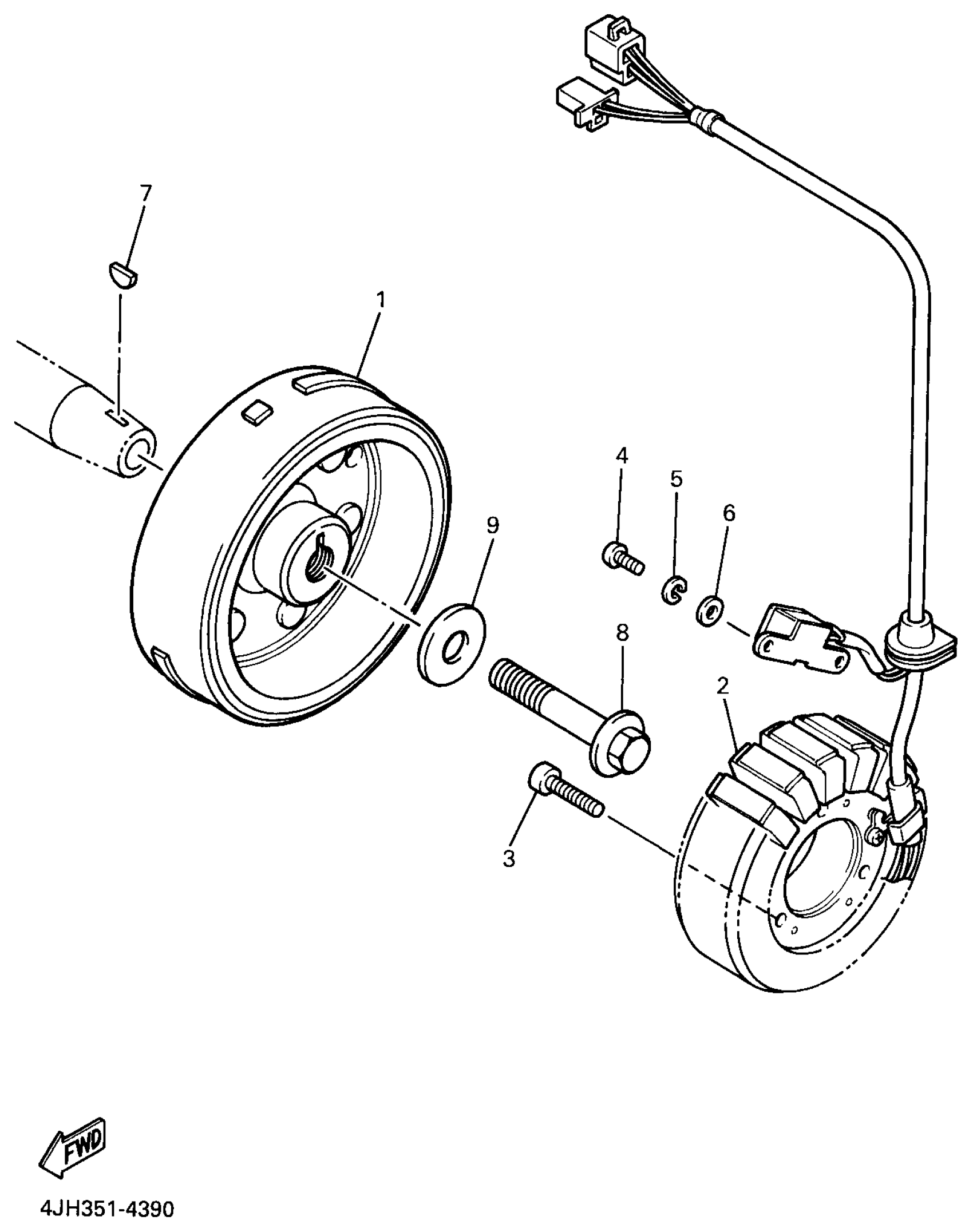

1998 Yamaha YZF600R CA (YZF600RKC) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR ASSY

4TV-81450-00-00

—
Out of stock

2

STATOR ASSY

4TV-81410-01-00

1
Out of stock

3

BOLT, BUTTON

92017-06030-00

1
Out of stock

4

SCREW, PAN HEAD(JJ6)

98507-05016-00

1
Out of stock

5

WASHER(1RW)

92907-05600-00

1
Out of stock

6

WASHER PLATE 338839440000

90201-05027-00

—
Out of stock

7

KEY, WOODRUFF(1WG)

90280-03047-00

1
Out of stock

8

BOLT, WASHER BASED(3LD)

90105-12584-00

—
Out of stock

9

WASHER (838)

90201-12191-00

1
Out of stock
