1998 Yamaha YZF600R CA (YZF600RKC) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1998 Yamaha YZF600R CA (YZF600RKC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

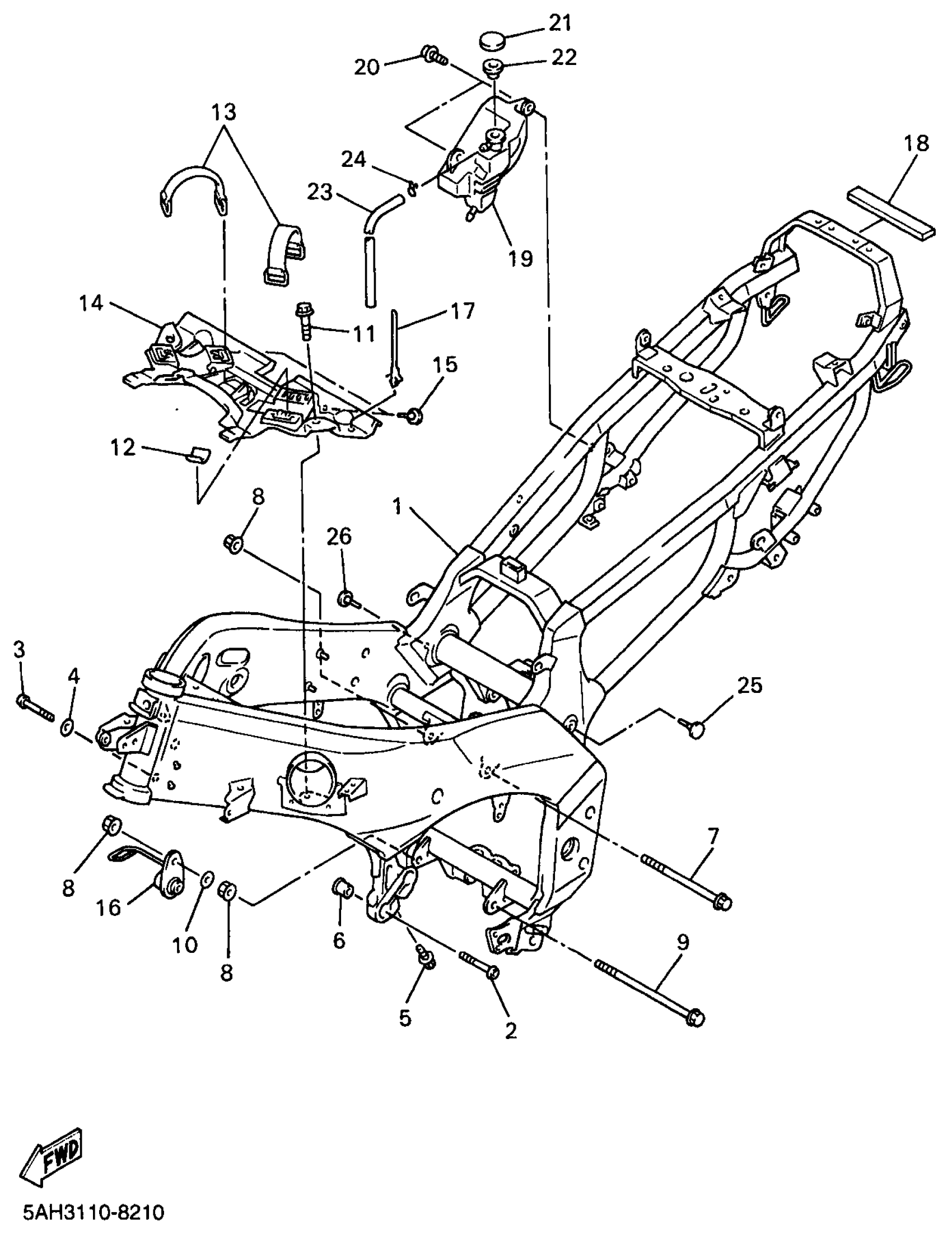

1998 Yamaha YZF600R CA (YZF600RKC) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

4TV-21110-01-35

1
Out of stock

2

. BOLT

91314-10045-00

1
Out of stock

3

BOLT,SOCKET

91314-10050-00

1

$4.06

In stock

4

WASHER, PLATE(4TV)

90201-110T8-00

—
Out of stock

5

BOLT, FLANGE(4TV)

95814-10025-00

1

$6.68

In stock

6

COLLAR

90387-115V8-00

1
Out of stock

7

BOLT, WASHER BASED (5E3)

90105-10183-00

1

$10.25

In stock

8

NUT, FLANGE(8AB)

95707-10500-00

1

$1.66

In stock

9

BOLT,FLANGE

95827-10175-00

1
Out of stock

10

WASHER, PLATE (3L6)

90201-10774-00

1

$6.25

In stock

11

BOLT, WITH WASHER

90119-06242-00

1

$5.86

In stock

12

DAMPER 1

31A-28217-00-00

1
Out of stock

13

BAND

36X-2811G-00-00

—
Out of stock

14

COVER 2

4TV-2117M-00-00

1
Out of stock

15

DAMPER 2

36Y-21639-00-00

1
Out of stock

16

STAY, MUFFLER 2

4JH-21446-00-00

1
Out of stock

17

CLAMP(2TV)

90464-10112-00

—

$6.18

In stock

18

DAMPER 2

4TV-21486-00-00

1
Out of stock

19

TANK, RECOVERY

4FM-21871-02-00

1
Out of stock

20

SCREW, W/WASHER (4L0)

90159-06060-00

—

$6.17

In stock

21

CAP

1AA-21815-00-00

—

$11.09

In stock

22

GASKET

1AA-21874-00-00

—

$6.38

In stock

23

HOSE (L1500)

90445-084J0-00

—

$16.40

In stock

24

CLIP 101235600

90467-08003-00

—

$6.13

In stock

25

DAMPER 2

36Y-21639-00-00

1
Out of stock

26

DAMPER 2

36Y-21639-00-00

1
Out of stock
