1995 Yamaha YZF600R (YZF600RG) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1995 Yamaha YZF600R (YZF600RG), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

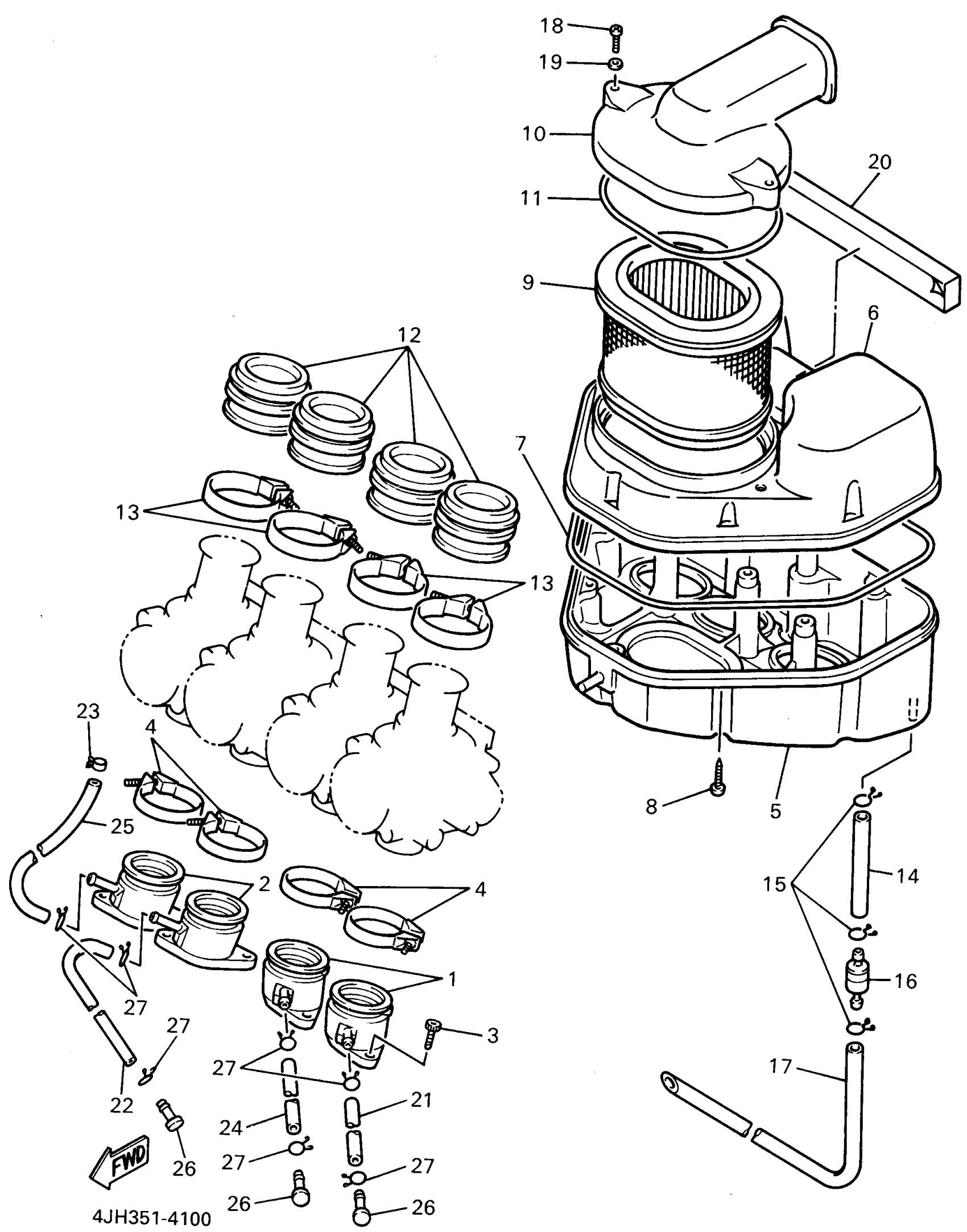

1995 Yamaha YZF600R (YZF600RG) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1

4JH-13586-02-00

—
Out of stock

2

JOINT, CARBURETOR 2

4JH-13596-02-00

—
Out of stock

3

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

4

HOSE CLAMP ASSY

90450-52002-00

—
Out of stock

5

CASE, AIR CLEANER 1

4JH-14411-00-00

1
Out of stock

6

CASE, AIR CLEANER 2

4JH-14421-00-00

1
Out of stock

7

SEAL

1VJ-14462-00-00

1

$16.08

In stock

8

1

$2.03

In stock

9

ELEMENT, AIR CLEANER

4JH-14451-00-00

—
Out of stock

10

CAP, CLEANER CASE 1

4JH-14412-00-00

1
Out of stock

11

SEAL

1VJ-14462-00-00

1

$16.08

In stock

12

JOINT, AIR CLEANER 1

4JH-14453-00-00

1
Out of stock

13

HOSE CLAMP ASSY

90450-62006-00

1

$10.77

In stock

14

HOSE (L198)

90445-11293-00

1

$6.97

In stock

15

CLIP

90467-100A1-00

1
Out of stock

16

FILTER ASSY

4X7-2149Y-00-00

—

$17.23

In stock

17

HOSE (L600)

90445-11012-00

1

$15.99

In stock

18

. SCREW, PAN HEAD

98580-05530-00

1

$3.84

In stock

19

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

20

SEAL

4JH-14467-00-00

1
Out of stock

21

HOSE (L770)

90445-090G9-00

—
Out of stock

22

HOSE (L770)

90445-090G9-00

—
Out of stock

23

CLIP(41W)

90467-08092-00

—

$6.86

In stock

24

HOSE (L770)

90445-090G9-00

—
Out of stock

25

HOSE (L770)

90445-090G9-00

—
Out of stock

26

PLUG

90338-05240-00

1
Out of stock

27

CLIP (8L2)

90467-08017-00

—

$7.51

In stock
