1997 Yamaha YZF1000R CA (YZF1000RJC) Frame Diagram

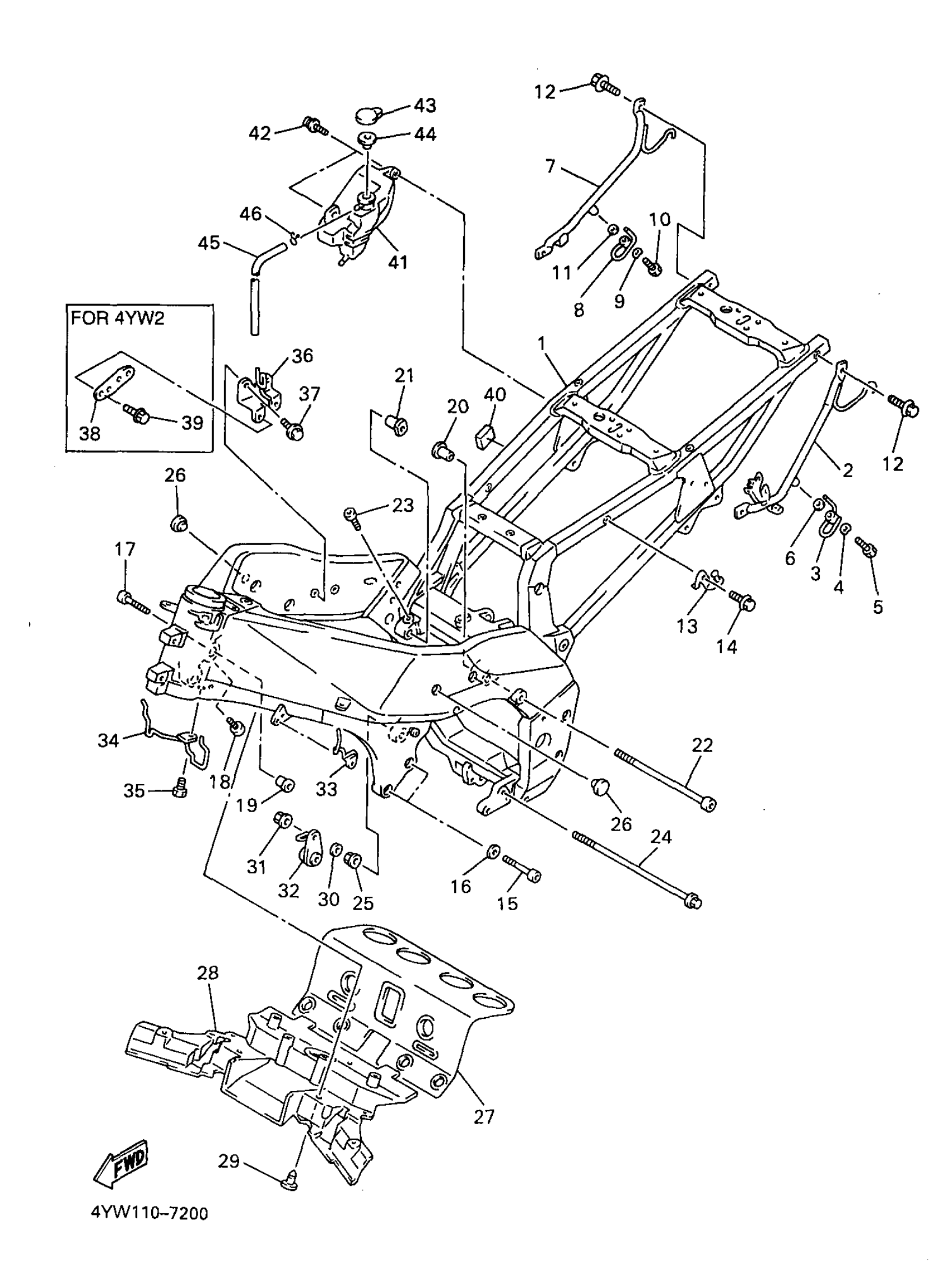

Find the part on the Frame diagram for your 1997 Yamaha YZF1000R CA (YZF1000RJC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRAME COMP.
4SV-21110-00-00
2
HANDLE, STANDING
4SV-2127A-00-00
3
WIRE
4SV-21654-00-00
7
HANDLE, STANDING
4SV-2127A-10-00
8
WIRE
4SV-21654-10-00
13
HANGER, HELMET
4SV-21398-00-00
15
BOLT,SOCKET
91314-10040-00
17
. BOLT
91314-10045-00
19
COLLAR
90387-115V8-00
20
COLLAR
90387-105V7-00
21
NUT
90179-10682-00
22
BOLT, HEXAGON SOCKET HEAD
90110-10169-00
24
BOLT, WASHER BASED(4FM)
90105-10716-00
26
PLUG(2GH)
90338-15202-00
27
COVER
4SV-2117F-00-00
28
GUIDE, AIR
4SV-2137Y-00-00
29
RIVET(4SV)
90269-08078-00
32
STAY, MUFFLER 2
4FM-21446-01-00
33
HOLDER, CABLE
4FM-21161-02-00
34
HOLDER, CLUTCH CABLE
4FM-21162-00-00
35
BOLT
90101-06664-00
36
BRACKET 7
4FM-2116J-10-00
38
BRACKET 8
4FM-2116K-00-00
40
DAMPER
4SV-2174X-00-00
41
TANK, RECOVERY
4FM-21871-02-00
