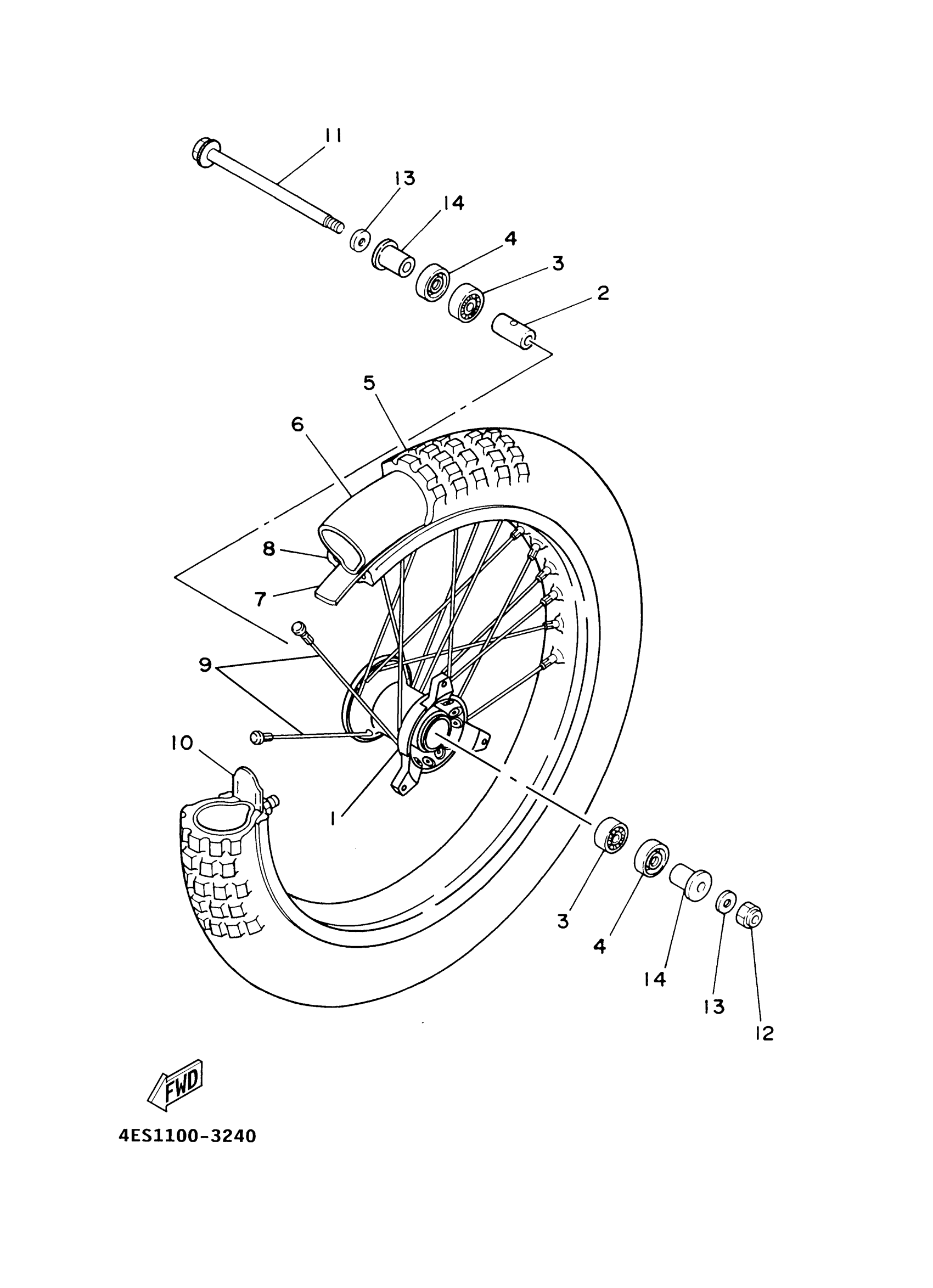

Yamaha YZ85Z (YZ85) 5PAS 2010 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

4ES-25111-01-00

$170.85

2

COLLAR (26H)

90387-124H0-00

$13.86

3

BEARING(82M)

93306-20117-00

$27.89

4

OIL SEAL(4ES)

93106-20031-00

$10.82

5

70/100-17 40M D739FA

94107-17019-00

Unavailable

6

TUBE (70/100-17 TR4)(4ES)

94207-17284-00

$18.59

7

BAND, RIM (22-17)

94307-17166-00

$5.58

8

RIM (1.40-17)(4ES)

94414-17530-00

Unavailable

9

SPOKE SET, FRONT

4ES-25104-20-00

$66.71

10

SPACER, BEAD

1T1-25194-00-00

Unavailable

11

AXLE, WHEEL

4ES-25181-00-00

$39.22

12

NUT, SELF-LOCKING

90185-12010-00

$6.70

13

WASHER, PLATE

90201-12055-00

$6.14

14

COLLAR, WHEEL

4ES-25183-10-00

$28.83
