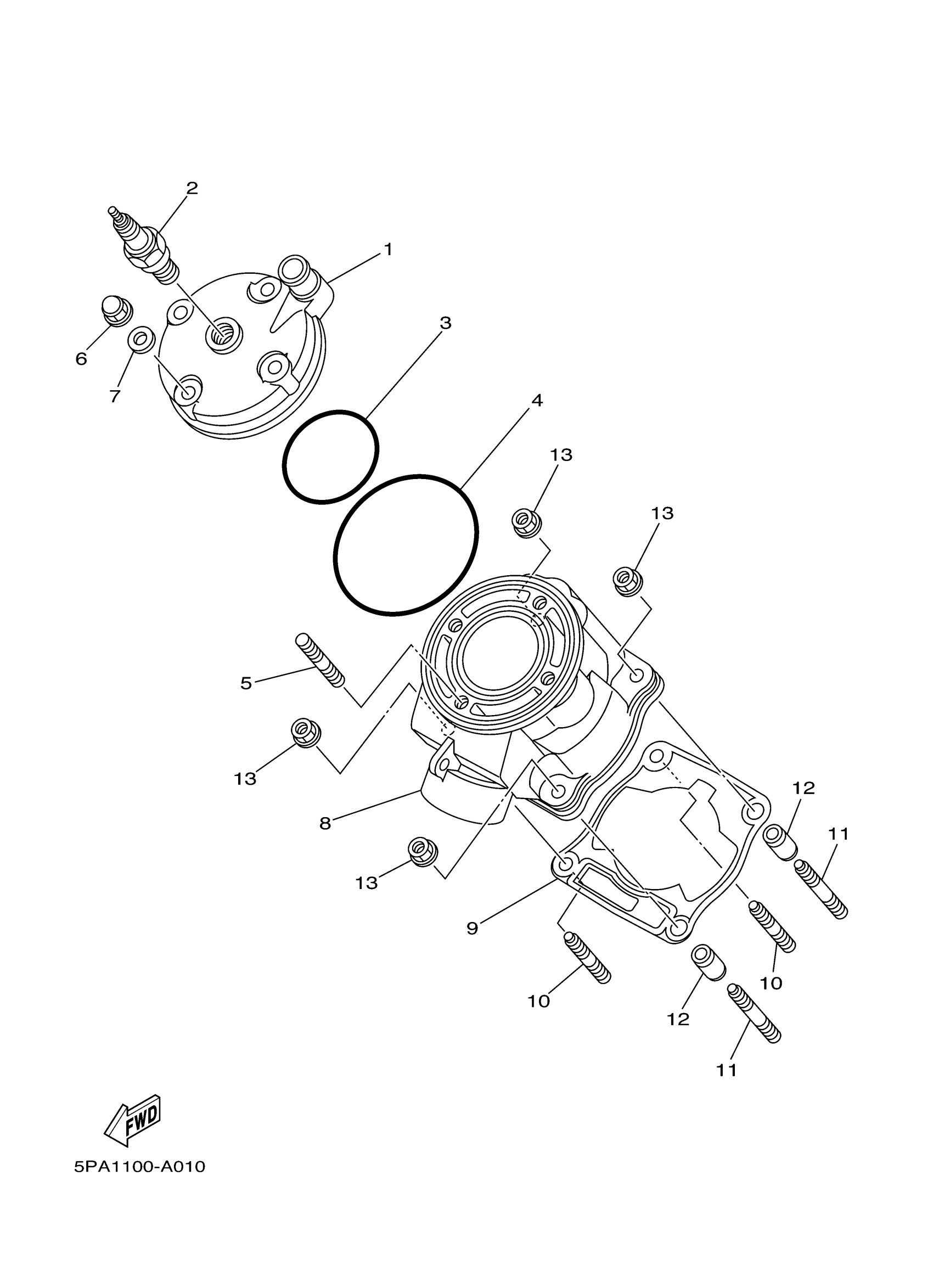

Yamaha YZ85V (YZ85) 5PAD 2006 CYLINDER Diagram

#

Description
Price

1

HEAD, CYLINDER 1

5PA-11111-01-00

Unavailable

2

PLUG, SPARK (NGK BR10EG)

BR1-0EG00-00-00

$6.83

3

O-RING (4G0)

93210-56459-00

$10.29

4

O-RING(4ES)

93210-84724-00

$7.94

5

BOLT, STUD (5V6)

90116-08394-00

$3.93

6

NUT, CROWN (4G0)

90176-08026-00

$10.85

7

WASHER, PLATE

90201-080L8-00

$2.61

8

CYLINDER 1

5PA-11311-30-00

$853.58

9

GASKET, CYLINDER

4ES-11351-00-00

$16.29

10

BOLT, STUD (3R3)

90116-08318-00

$4.34

11

BOLT, STUD (10V)

90116-08388-00

$7.77

12

PIN, DOWEL

99590-10114-00

$4.11

13

NUT(55X)

90179-08491-00

$2.01
