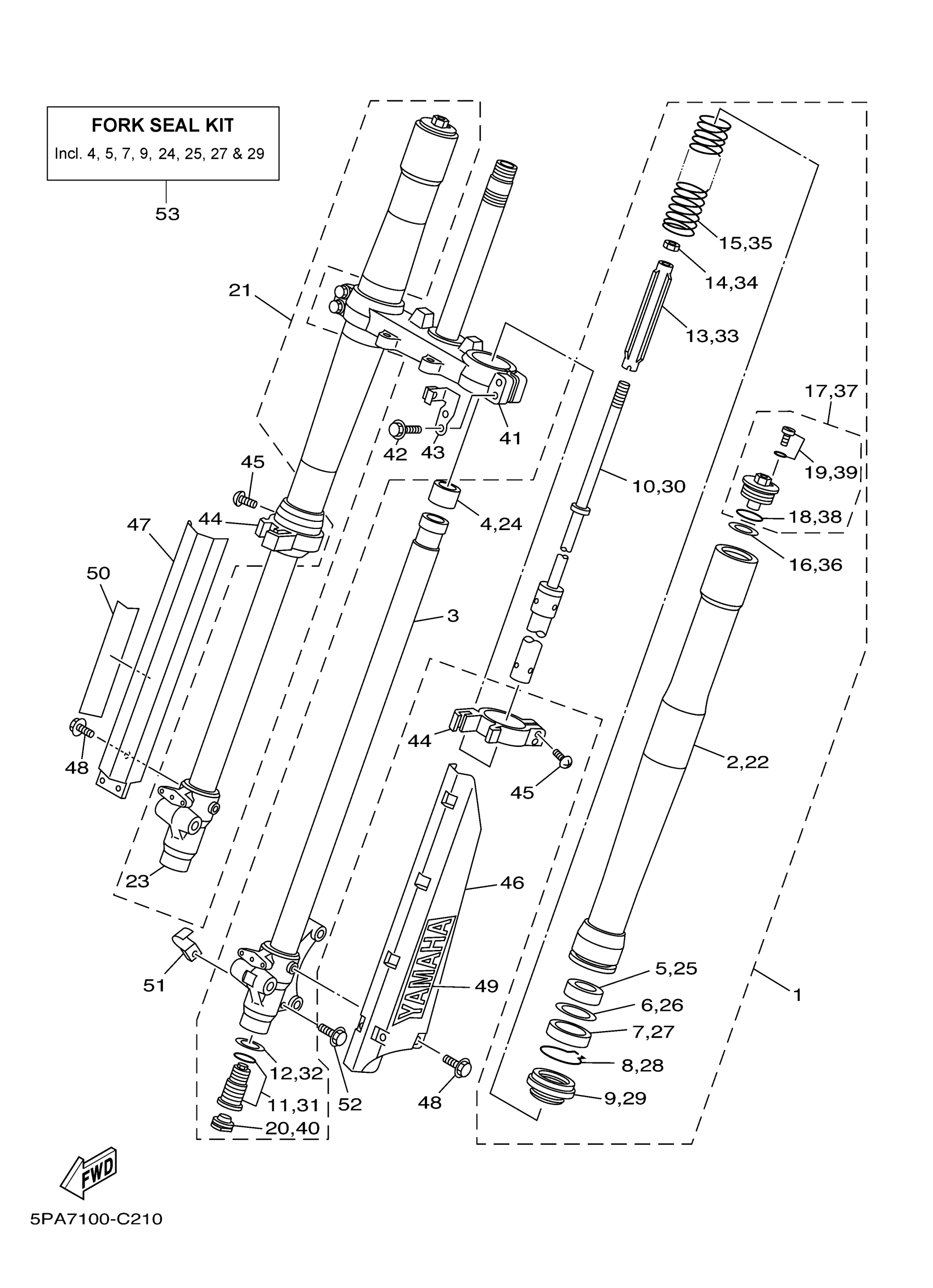

Yamaha YZ85T (YZ85) 5PAA 2005 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

5PA-23102-00-00

Unavailable

2

. TUBE, OUTER (RIGHT)

5PA-23136-00-00

Unavailable

3

INNER TUBE COMP.2

5PA-23120-00-00

Unavailable

4

PISTON, FRONT FORK

5PA-23171-00-00

$25.18

5

METAL, SLIDE 1

5PA-23125-00-00

$12.09

6

WASHER, SPRING UPPER

5K5-23149-00-00

$7.30

7

OIL SEAL

4ES-23145-00-00

$17.34

8

RING, SNAP

4A1-23156-00-00

$4.44

9

SEAL, DUST

4ES-23144-00-00

$19.21

10

CYLINDER COMP., FRONT FORK

5PA-23170-00-00

Unavailable

11

VALVE COMP.

5PA-2316A-00-00

Unavailable

12

GASKET

2HH-23158-L0-00

$8.88

13

SEAT, SPRING UPPER

4ES-23142-00-00

Unavailable

14

NUT

3XJ-23357-L0-00

$0.72

15

SPRING, FRONT FORK

4ES-23141-80-00

Unavailable

16

WASHER, SPRING UPPER

5PA-23149-00-00

Unavailable

17

BOLT, CAP

4ES-23111-10-00

Unavailable

18

O-RING

4V4-23188-L1-00

Unavailable

19

B0LT, SPECIAL

3JD-23394-00-00

Unavailable

20

PLUG

3JD-2312G-L0-00

Unavailable

21

FRONT FORK ASSY (R.H)

5PA-23103-00-00

Unavailable

22

. TUBE, OUTER (RIGHT)

5PA-23136-00-00

Unavailable

23

INNER TUBE COMP.1

5PA-23110-00-00

Unavailable

24

PISTON, FRONT FORK

5PA-23171-00-00

$25.18

25

METAL, SLIDE 1

5PA-23125-00-00

$12.09

26

WASHER, SPRING UPPER

5K5-23149-00-00

$7.30

27

OIL SEAL

4ES-23145-00-00

$17.34

28

RING, SNAP

4A1-23156-00-00

$4.44

29

SEAL, DUST

4ES-23144-00-00

$19.21

30

CYLINDER COMP., FRONT FORK

5PA-23170-00-00

Unavailable

31

VALVE COMP.

5PA-2316A-00-00

Unavailable

32

GASKET

2HH-23158-L0-00

$8.88

33

SEAT, SPRING UPPER

4ES-23142-00-00

Unavailable

34

NUT

3XJ-23357-L0-00

$0.72

35

SPRING, FRONT FORK

4ES-23141-80-00

Unavailable

36

WASHER, SPRING UPPER

5PA-23149-00-00

Unavailable

37

BOLT, CAP

4ES-23111-10-00

Unavailable

38

O-RING

4V4-23188-L1-00

Unavailable

39

B0LT, SPECIAL

3JD-23394-00-00

Unavailable

40

PLUG

3JD-2312G-L0-00

Unavailable

41

UNDER BRACKET COMP.

5PA-23340-01-00

Unavailable

42

BOLT 1

5NY-23346-L0-00

Unavailable

43

GUIDE, CABLE

5PA-2331E-00-00

Unavailable

44

PROTECTER GUIDE COMP., 1

4ES-2314F-00-00

Unavailable

45

SCREW, PAN HEAD

98517-04025-00

$2.75

46

PROTECTER COMP., 1

5PA-2314H-L0-00

Unavailable

47

PROTECTER COMP., 2

5PA-2314J-L0-00

Unavailable

48

BOLT, FLANGE(2UJ)

95024-06010-00

Unavailable

49

EMBLEM, YAMAHA

4XL-2153A-11-00

Unavailable

50

EMBLEM, YAMAHA

4XL-2153A-11-00

Unavailable

51

HOLDER, CABLE 1

4ES-23318-00-00

Unavailable

52

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

53

FORK SEAL KIT (TWO FORKS)

4ES-W003B-00-00

Unavailable
