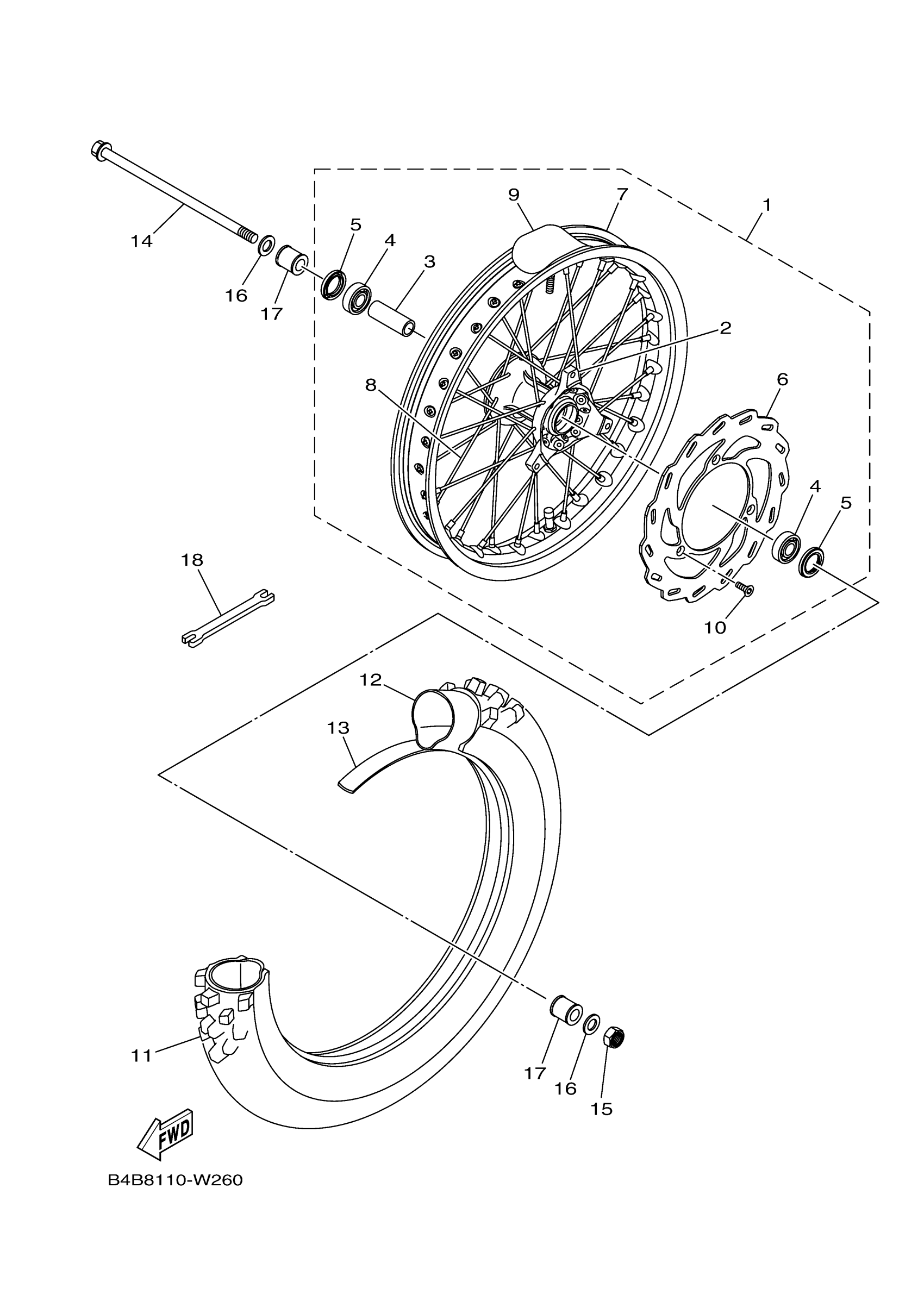

Yamaha YZ85S2 (YZ85) B4BL 2025 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL RIM ASSY

B4B-25102-00-00

$359.99

2

HUB, FRONT

4ES-25111-01-00

$170.85

3

COLLAR (26H)

90387-124H0-00

$13.86

4

BEARING(3WF)

93306-20119-00

$27.33

5

OIL SEAL (22X32X5-818)

93102-22087-00

$9.99

6

DISC, BRAKE (LEFT)

B4B-2582T-00-00

$113.47

7

RIM (1.40-17)

94414-17013-00

Unavailable

8

SPOKE SET, FRONT

4ES-25104-20-00

$66.71

9

SPACER, BEAD

1T1-25194-00-00

Unavailable

10

SCREW, COUNTERSUNK

90151-06080-00

$1.21

11

TIRE (70/100-17 40M MX3SF)

94107-17024-00

$69.05

12

TUBE (70/100-17 TR4)(4ES)

94207-17284-00

$18.59

13

BAND, RIM (22-17)

94307-17166-00

$5.58

14

AXLE, WHEEL

4ES-25181-00-00

$39.22

15

NUT, SELF-LOCKING

90185-12010-00

$6.70

16

WASHER, PLATE

90201-12055-00

Unavailable

17

COLLAR, WHEEL

BR8-25183-00-00

Unavailable

18

WRENCH, HEXAGON

1RH-28166-00-00

Unavailable
