2004 Yamaha YZ85 (YZ85S) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 2004 Yamaha YZ85 (YZ85S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

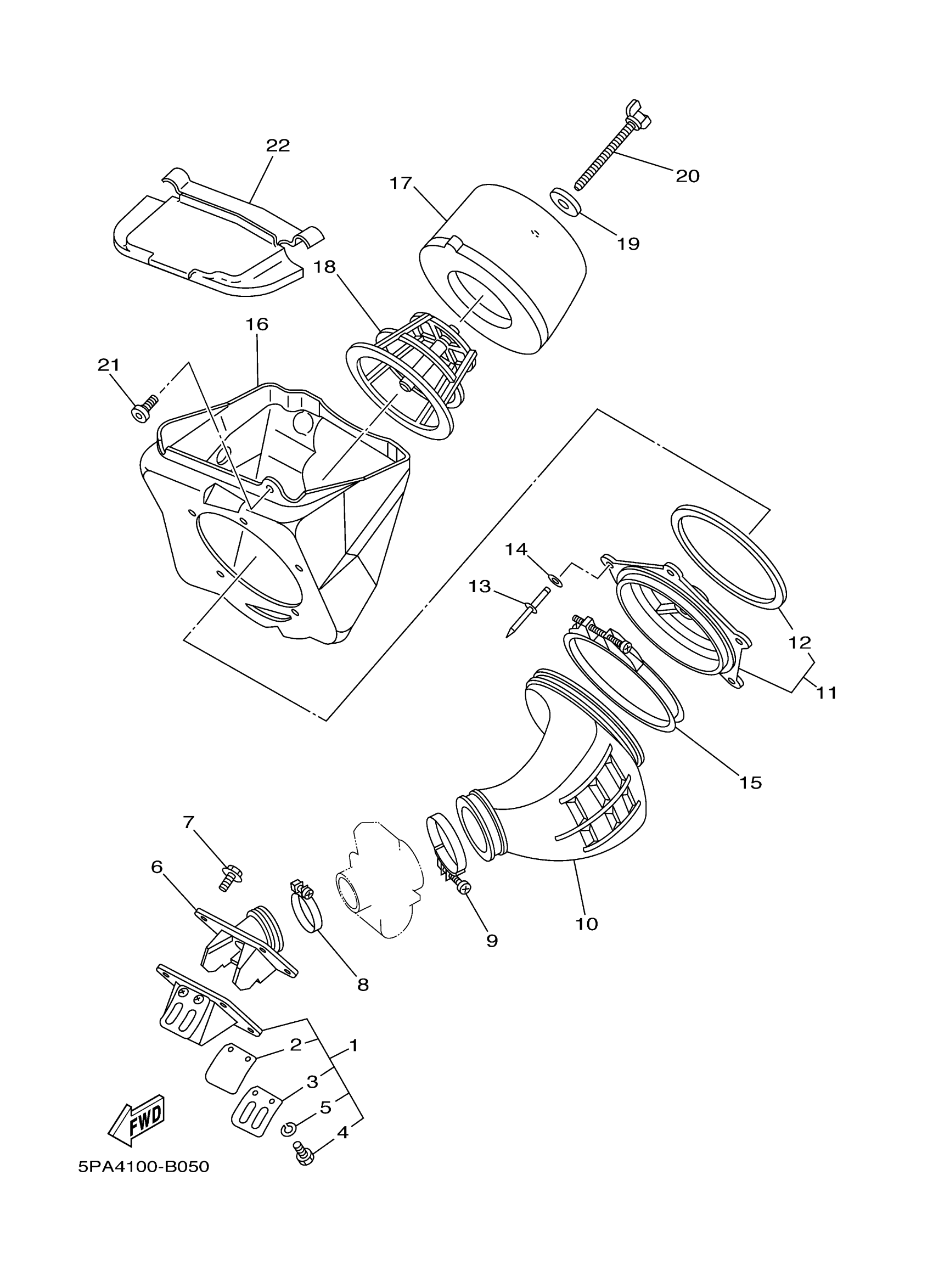

2004 Yamaha YZ85 (YZ85S) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

4ES-13610-00-00

1
Out of stock

2

REED, VALVE

4ES-13613-00-00

1
Out of stock

3

STOPPER, REED VALVE

4ES-13616-00-00

1
Out of stock

4

SCREW, PAN HEAD(3AC)

98517-03008-00

1
Out of stock

5

WASHER, SPRING

92990-03100-00

1
Out of stock

6

JOINT, CARBURETOR

5PA-13565-00-00

1
Out of stock

7

. BOLT, FLANGE

95027-06020-00

1
Out of stock

8

CLAMP, HOSE (5R2)

90460-41191-00

1
Out of stock

9

HOSE CLAMP ASSY

90450-56001-00

1
Out of stock

10

JOINT, AIR CLEANER

5PA-14453-01-00

—
Out of stock

11

HOLDER, GUIDE

5PA-14459-00-00

—
Out of stock

12

SEAL

4ES-14462-00-00

1
Out of stock

13

RIVET, BLIND(80N)

90267-48138-00

1
Out of stock

14

WASHER, PLATE (34L)

90201-043H7-00

1
Out of stock

15

HOSE CLAMP ASSY(4ES)

90450-99064-00

1
Out of stock

16

CASE, AIR CLEANER 1

5PA-14411-10-00

—
Out of stock

17

ELEMENT, AIR CLEANER

5PA-14451-02-00

—
Out of stock

18

GUIDE

5PA-14458-00-00

—
Out of stock

19

WASHER (4H7)

90209-06096-00

—
Out of stock

20

BOLT, WING

90122-06010-00

—
Out of stock

21

BOLT(3XP)

90109-065F3-00

—
Out of stock

22

COVER 1

5PA-14417-01-00

—
Out of stock
