2023 Yamaha YZ85 (YZ85P2) Starter Diagram

← All diagrams

Find the part on the Starter diagram for your 2023 Yamaha YZ85 (YZ85P2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

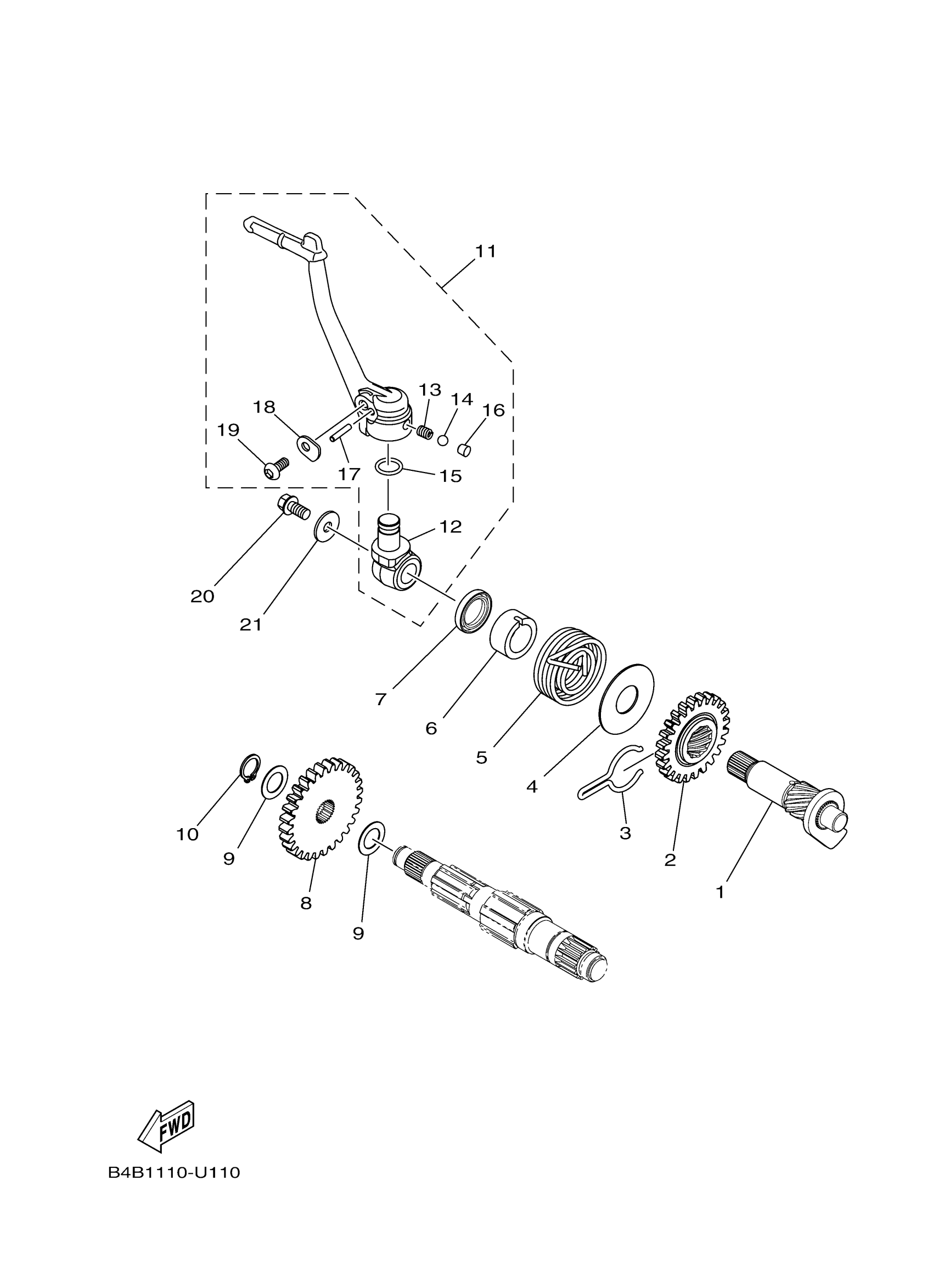

2023 Yamaha YZ85 (YZ85P2) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK AXLE ASSY

5PA-15660-00-00

1

$89.49

In stock

2

GEAR, KICK

5PA-15641-00-00

1

$73.15

In stock

3

CLIP(4ES)

90468-23194-00

1

$7.91

In stock

4

WASHER, PLATE(2UV)

90201-176L4-00

1

$7.69

In stock

5

SPRING, TORSION(2UV)

90508-26750-00

1

$10.57

In stock

6

GUIDE, SPRING

4ES-15664-00-00

1

$26.75

In stock

7

OIL SEAL (15A)

93102-17263-00

1

$8.91

In stock

8

GEAR, KICK IDLE

5PA-15651-00-00

1

$63.35

In stock

9

WASHER, PLATE (10X)

90201-124F8-00

1

$6.29

In stock

10

CIRCLIP(10Y)

99009-12400-00

1

$3.08

In stock

11

KICK CRANK ASSY

BR8-15620-00-00

1

$125.32

In stock

12

BOSS, KICK CRANK

BR8-15621-00-00

1

$50.52

In stock

13

SPRING COMPRESSION278156220000

90501-12081-00

1
Out of stock

14

BALL (12R)

93507-32031-00

1
Out of stock

15

O-RING (256)

93210-12152-00

1

$6.72

In stock

16

PLUG, TAPER(3FA)

90336-06031-00

—

$4.92

In stock

17

PIN, DOWEL(1HX)

93603-16219-00

—
Out of stock

18

PLATE, THRUST 1

4JY-11915-10-00

—

$6.43

In stock

19

BOLT,HEX. SOCKET BUTTON

90111-05053-00

—

$0.63

In stock

20

BOLT, FLANGE DEEP RECESS

95E32-06012-00

—

$0.88

In stock

21

WASHER, PLATE

90201-06020-00

—

$6.28

In stock
