2022 Yamaha YZ85 (YZ85N) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 2022 Yamaha YZ85 (YZ85N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

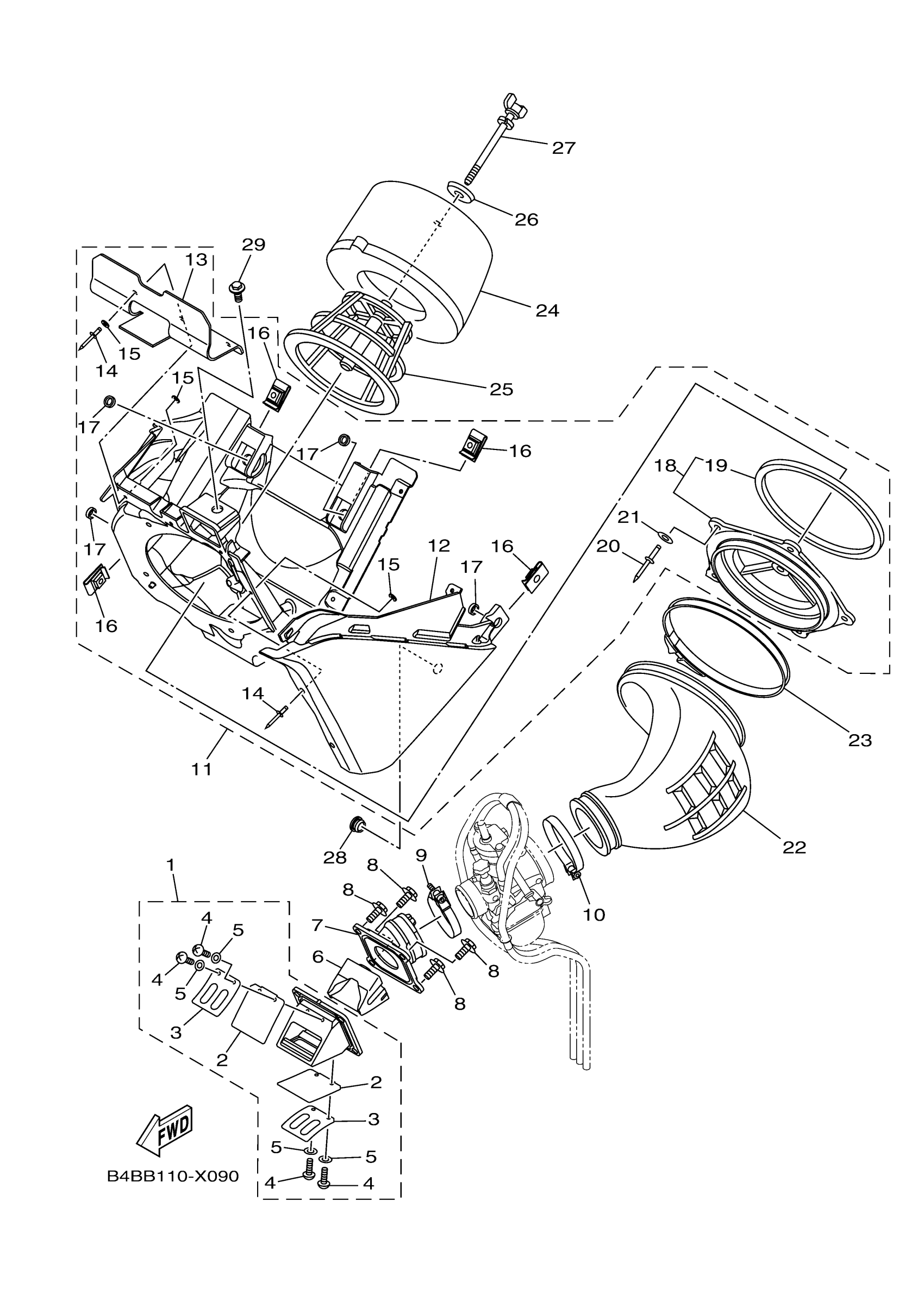

2022 Yamaha YZ85 (YZ85N) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

BR8-13610-00-00

1

$89.92

In stock

2

REED, VALVE

BR8-13613-00-00

1

$9.23

In stock

3

STOPPER, REED VALVE

4ES-13616-00-00

1

$12.20

In stock

4

SCREW, PAN HEAD(78G)

98580-03006-00

—

$6.91

In stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

SPACER, REED VALVE

BR8-13625-00-00

—

$13.08

In stock

7

JOINT, CARBURETOR

BR8-13565-00-00

1

$44.68

In stock

8

BOLT, FLANGE DEEP RECESS

95E32-06016-00

1
Out of stock

9

BAND

4TR-13474-02-00

1

$9.52

In stock

10

HOSE CLAMP ASSY

90450-56001-00

1

$14.77

In stock

11

AIR CLEANER CASE A

B4B-14401-00-00

1

$165.89

In stock

12

COVER 1

B4B-14417-00-00

1

$24.43

In stock

13

COVER, AIR CLEANER

B4B-1449E-00-00

1

$25.17

In stock

14

RIVET, BLIND

90267-32196-00

1

$0.89

In stock

15

WASHER, PLATE 8077743700

90201-03313-00

1

$5.20

In stock

16

NUT, SPRING

90183-060A7-00

—

$6.49

In stock

17

COLLAR

90387-06069-00

—

$6.65

In stock

18

HOLDER, GUIDE

5PA-14459-00-00

—

$35.31

In stock

19

SEAL

4ES-14462-00-00

—

$11.18

In stock

20

RIVET, BLIND(80N)

90267-48138-00

—
Out of stock

21

WASHER, PLATE (34L)

90201-043H7-00

—

$2.57

In stock

22

JOINT, AIR CLEANER

5PA-14453-01-00

—

$125.03

In stock

23

HOSE CLAMP ASSY

90450-99014-00

—

$14.64

In stock

24

ELEMENT, AIR CLEANER

5PA-14451-02-00

—

$33.19

In stock

25

GUIDE

5PA-14458-00-00

—

$26.11

In stock

26

WASHER (4H7)

90209-06096-00

—
Out of stock

27

BOLT, WING

90122-06010-00

—
Out of stock

28

GROMMET

90480-10M28-00

1

$3.54

In stock

29

BOLT

90109-06245-00

—

$4.75

In stock
