2021 Yamaha YZ85 (YZ85M) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 2021 Yamaha YZ85 (YZ85M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

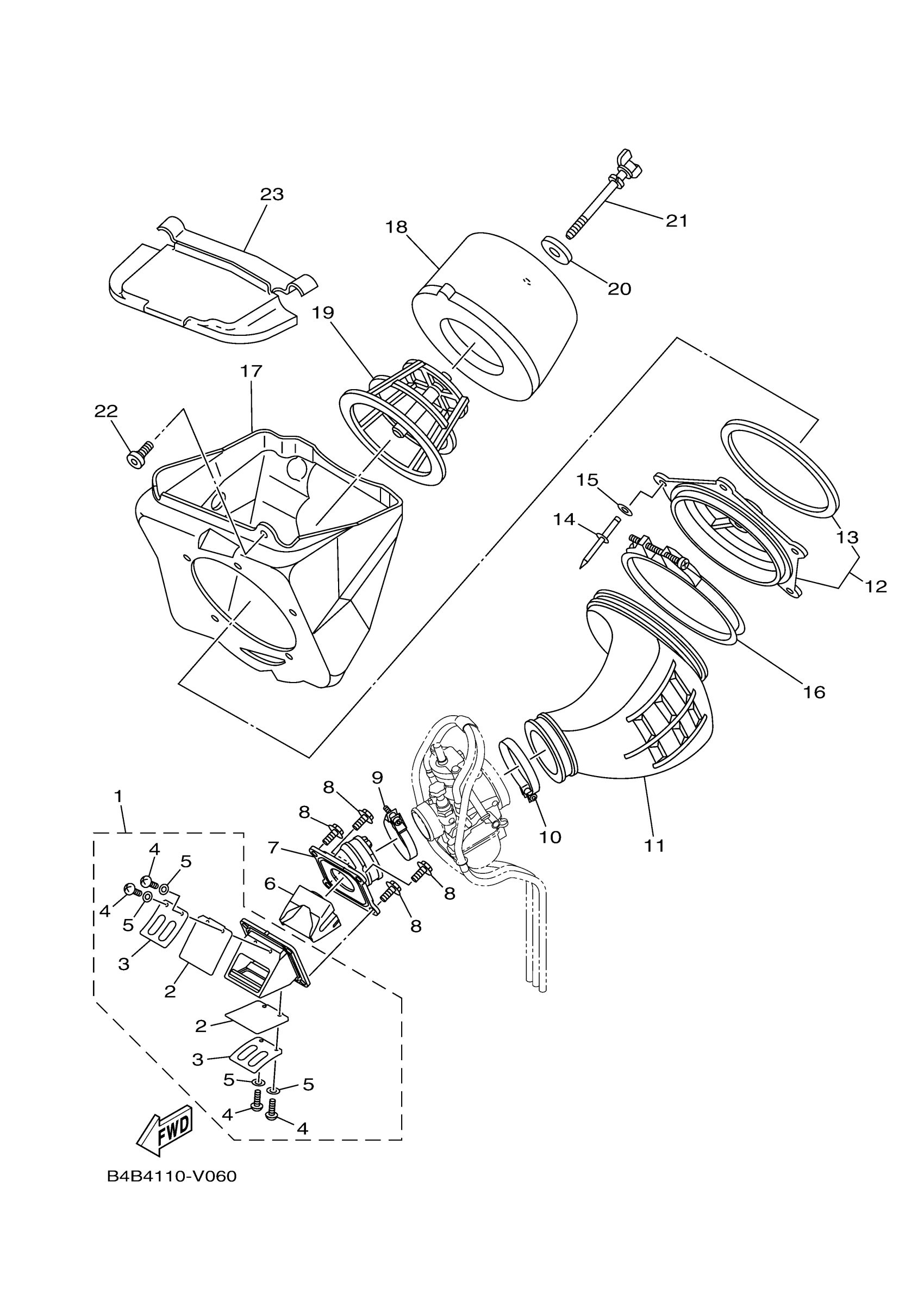

2021 Yamaha YZ85 (YZ85M) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

BR8-13610-00-00

1

$89.92

In stock

2

REED, VALVE

BR8-13613-00-00

1

$9.23

In stock

3

STOPPER, REED VALVE

4ES-13616-00-00

1

$12.20

In stock

4

SCREW, PAN HEAD(78G)

98580-03006-00

—

$6.91

In stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

SPACER, REED VALVE

BR8-13625-00-00

—

$13.08

In stock

7

JOINT, CARBURETOR

BR8-13565-00-00

1

$44.68

In stock

8

BOLT, FLANGE DEEP RECESS

95E32-06016-00

1
Out of stock

9

BAND

4TR-13474-02-00

1

$9.52

In stock

10

HOSE CLAMP ASSY

90450-56001-00

1

$14.77

In stock

11

JOINT, AIR CLEANER

5PA-14453-01-00

—

$125.03

In stock

12

HOLDER, GUIDE

5PA-14459-00-00

—

$35.31

In stock

13

SEAL

4ES-14462-00-00

1

$11.18

In stock

14

RIVET, BLIND(80N)

90267-48138-00

1
Out of stock

15

WASHER, PLATE (34L)

90201-043H7-00

1

$2.57

In stock

16

HOSE CLAMP ASSY(4ES)

90450-99064-00

—
Out of stock

17

CASE, AIR CLEANER 1

5PA-14411-10-00

—

$190.83

In stock

18

ELEMENT, AIR CLEANER

5PA-14451-02-00

—

$33.19

In stock

19

GUIDE

5PA-14458-00-00

—

$26.11

In stock

20

WASHER (4H7)

90209-06096-00

—
Out of stock

21

BOLT, WING

90122-06010-00

—
Out of stock

22

BOLT(3XP)

90109-065F3-00

—

$6.74

In stock

23

COVER 1

5PA-14417-01-00

—
Out of stock
