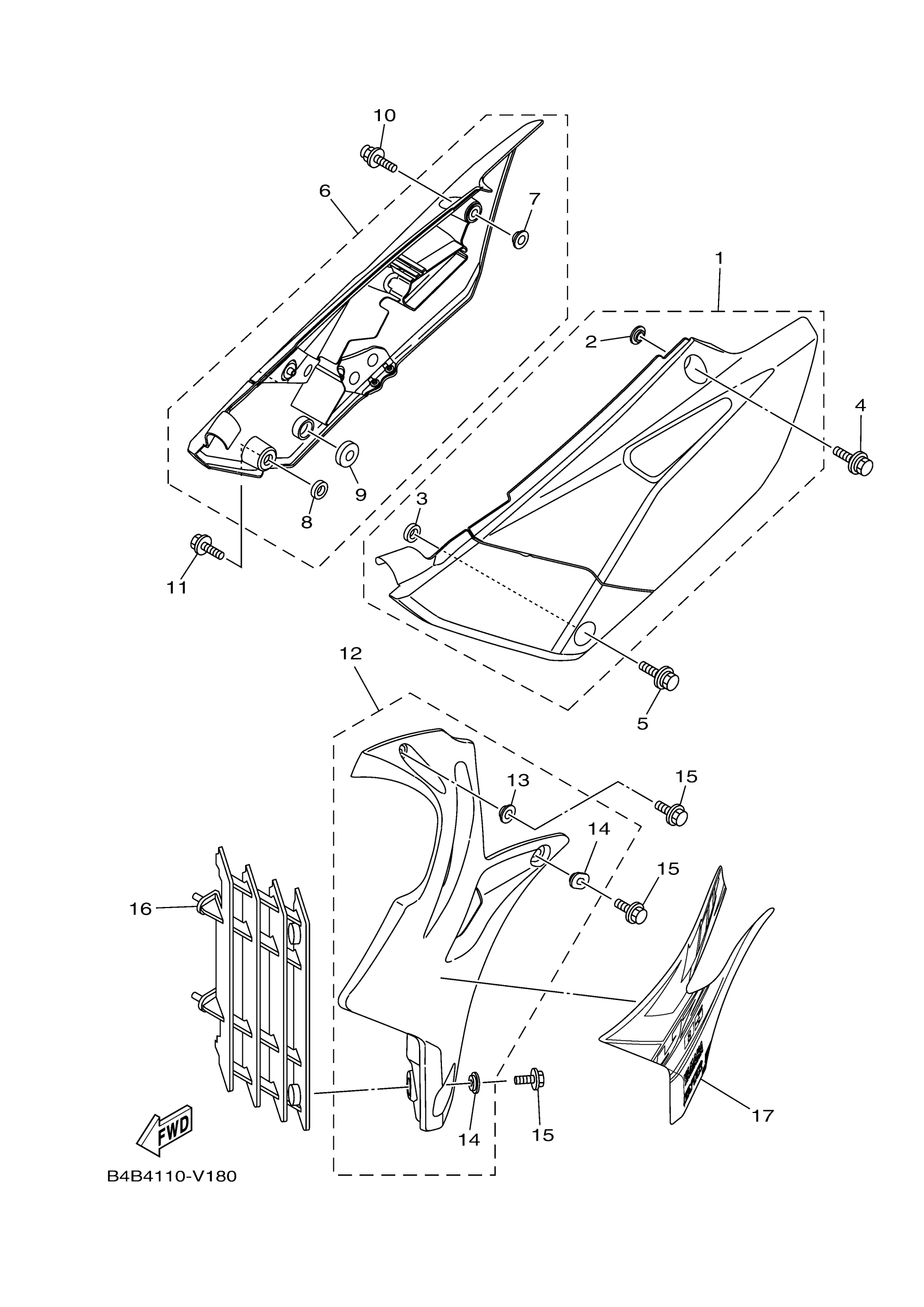

Yamaha YZ85L (YZ85) B4B4 2020 SIDE COVER Diagram

#

Description
Price

1

SIDE COVER ASSY 1

1SN-21710-00-00

$32.89

2

COLLAR

90387-06009-00

$7.37

3

COLLAR

90387-1001B-00

$2.97

4

BOLT, WITH WASHER

90119-06240-00

$2.92

5

BOLT, WITH WASHER(4ES)

90119-06217-00

$4.89

6

SIDE COVER ASSY 2

1SN-21720-00-00

$62.12

7

COLLAR

90387-06009-00

$7.37

8

COLLAR

90387-1001B-00

$2.97

9

GROMMET

1SL-21719-00-00

$12.37

10

BOLT, WITH WASHER

90119-06240-00

$2.92

11

BOLT, WITH WASHER(4ES)

90119-06217-00

$4.89

12

SIDE COVER ASSY 3

1SN-21730-00-00

$32.89

13

COLLAR

90387-06009-00

$7.37

14

COLLAR

5PA-21748-00-00

Unavailable

15

BOLT, FLANGE

90105-06064-00

$2.49

16

PANEL 1

5PH-2172A-11-00

Unavailable

17

GRAPHIC 3

B4B-2174G-10-00

Unavailable
