2020 Yamaha YZ85 (YZ85L) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2020 Yamaha YZ85 (YZ85L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

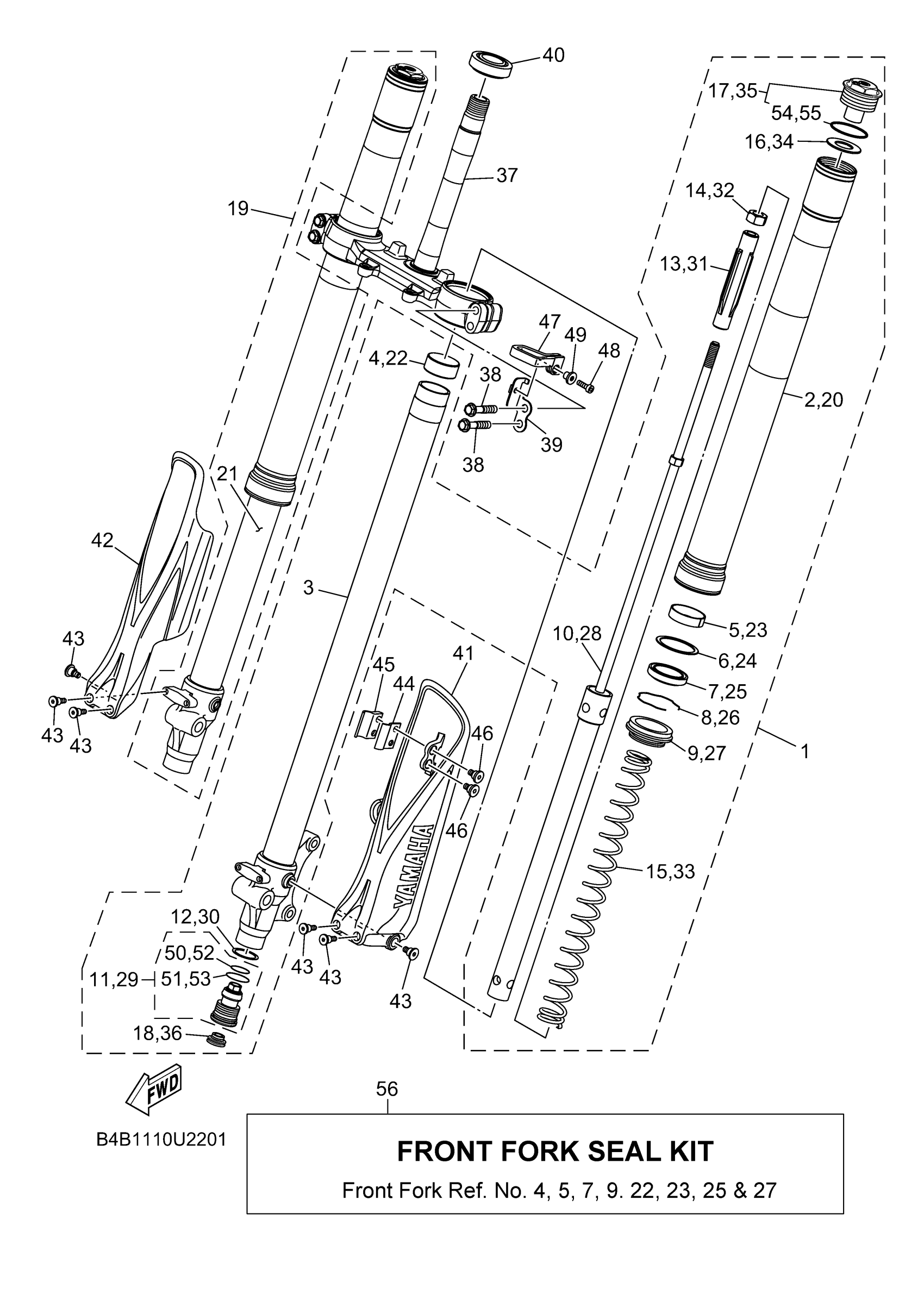

2020 Yamaha YZ85 (YZ85L) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY (L.H)

B4B-23102-00-00

—
Out of stock

2

TUBE, OUTER 2

B4B-23136-00-00

1
Out of stock

3

INNER TUBE COMP.2

B4B-23120-00-00

1
Out of stock

4

PISTON, FRONT FORK

5PA-23171-00-00

1
Out of stock

5

METAL, SLIDE 1

5PA-23125-00-00

1
Out of stock

6

WASHER, SPRING UPPER

5K5-23149-00-00

1
Out of stock

7

OIL SEAL

4ES-23145-00-00

1
Out of stock

8

RING, SNAP

4A1-23156-00-00

1
Out of stock

9

SEAL, DUST

4ES-23144-00-00

1
Out of stock

10

CYLINDER COMP., FRONT FORK

B4B-23170-00-00

—
Out of stock

11

VALVE COMP.

B4B-2316A-00-00

—
Out of stock

12

GASKET

2HH-23158-L0-00

1
Out of stock

13

SEAT, SPRING UPPER

B4B-23142-00-00

—
Out of stock

14

NUT

3XJ-23357-L0-00

1
Out of stock

15

SPRING, FRONT FORK

4ES-23141-80-00

—
Out of stock

16

WASHER, SPRING UPPER

5PA-23149-00-00

—
Out of stock

17

BOLT, CAP

BR8-23111-00-00

—
Out of stock

18

PLUG

3JD-2312G-L0-00

—
Out of stock

19

FRONT FORK ASSY (R.H)

B4B-23103-00-00

—
Out of stock

20

TUBE, OUTER 2

B4B-23136-00-00

1
Out of stock

21

INNER TUBE COMP.1

B4B-23110-00-00

—
Out of stock

22

PISTON, FRONT FORK

5PA-23171-00-00

1
Out of stock

23

METAL, SLIDE 1

5PA-23125-00-00

1
Out of stock

24

WASHER, SPRING UPPER

5K5-23149-00-00

1
Out of stock

25

OIL SEAL

4ES-23145-00-00

1
Out of stock

26

RING, SNAP

4A1-23156-00-00

1
Out of stock

27

SEAL, DUST

4ES-23144-00-00

1
Out of stock

28

CYLINDER COMP., FRONT FORK

B4B-23170-00-00

—
Out of stock

29

VALVE COMP.

B4B-2316A-00-00

—
Out of stock

30

GASKET

2HH-23158-L0-00

1
Out of stock

31

SEAT, SPRING UPPER

B4B-23142-00-00

—
Out of stock

32

NUT

3XJ-23357-L0-00

1
Out of stock

33

SPRING, FRONT FORK

4ES-23141-80-00

—
Out of stock

34

WASHER, SPRING UPPER

5PA-23149-00-00

—
Out of stock

35

BOLT, CAP

BR8-23111-00-00

—
Out of stock

36

PLUG

3JD-2312G-L0-00

—
Out of stock

37

UNDER BRACKET COMP.

BR8-23340-00-00

—
Out of stock

38

BOLT 1

5PA-23346-00-00

—
Out of stock

39

GUIDE, CABLE

BR8-2331E-00-00

—
Out of stock

40

BEARING(4ES)

93332-00079-00

—
Out of stock

41

PROTECTOR 1

B4B-2315H-00-00

—
Out of stock

42

PROTECTOR 2

B4B-2315J-00-00

—
Out of stock

43

BOLT

90109-06232-00

—
Out of stock

44

CLAMP

17D-23466-00-00

—
Out of stock

45

CLAMP

17D-23467-00-00

—
Out of stock

46

BOLT

90109-06232-00

—
Out of stock

47

GUIDE, CABLE

5TJ-23389-80-00

—
Out of stock

48

BOLT, SOCKET

91317-05016-00

—
Out of stock

49

COLLAR

90387-05065-00

—
Out of stock

50

O-RING

4DA-23147-L1-00

—
Out of stock

51

GASKET

276-23114-02-00

—
Out of stock

52

O-RING

4DA-23147-L1-00

—
Out of stock

53

GASKET

276-23114-02-00

—
Out of stock

54

O-RING

4V4-23188-L1-00

—
Out of stock

55

O-RING

4V4-23188-L1-00

—
Out of stock

56

FORK SEAL KIT (TWO FORKS)

4ES-W003B-00-00

—
Out of stock
