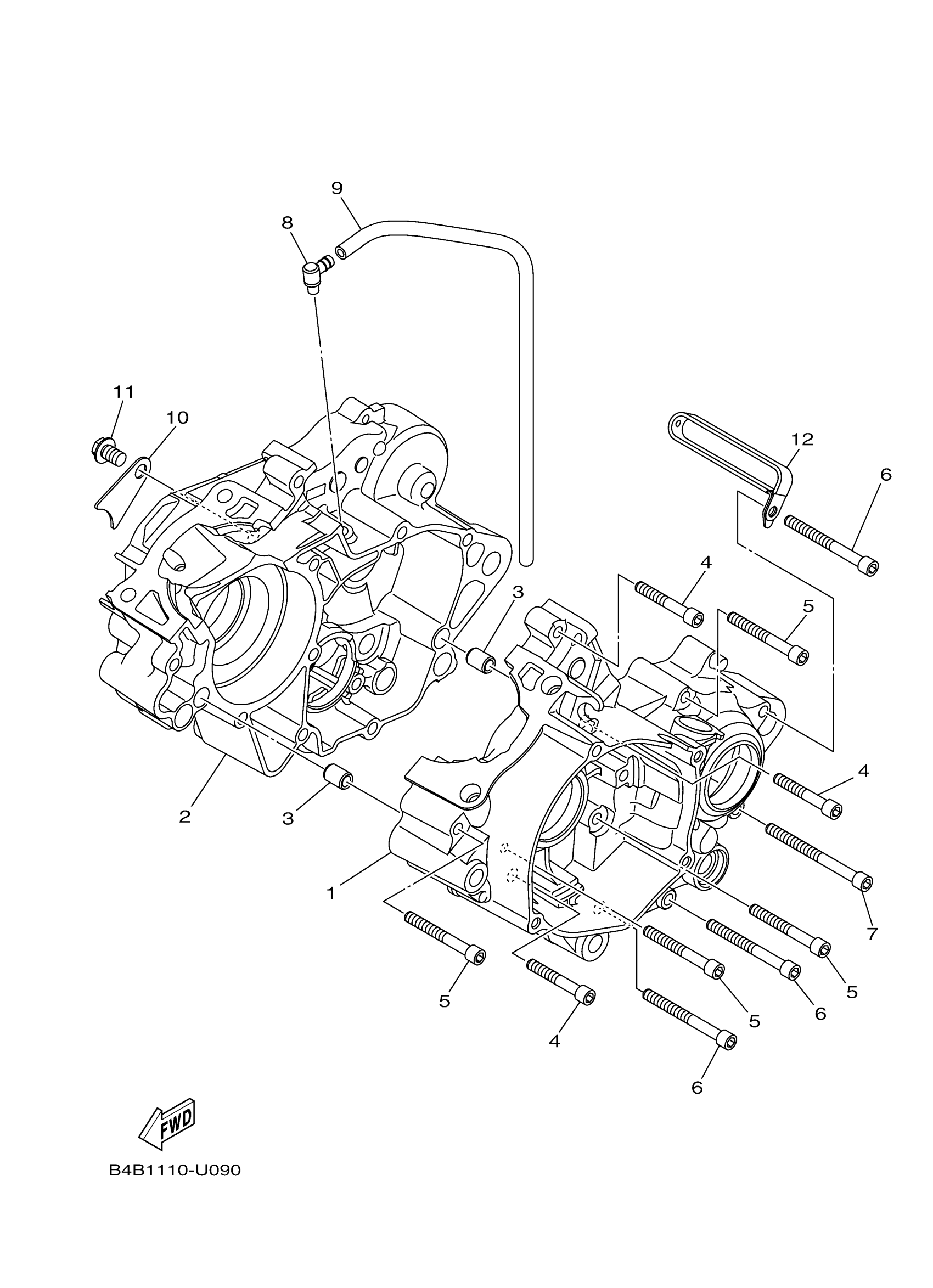

Yamaha YZ85L (YZ85) B4B4 2020 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

B4B-15111-00-00

Unavailable

2

CRANKCASE 2

B4B-15121-00-00

Unavailable

3

PIN, DOWEL(3VD)

99530-10114-00

$2.13

4

BOLT

91342-06040-00

$0.86

5

BOLT

91342-06050-00

Unavailable

6

BOLT

91342-06060-00

Unavailable

7

BOLT

91342-06070-00

$1.15

8

CONNECTOR, SUCTION PIPE

353-13115-01-00

$4.90

9

HOSE (L340)

90445-08684-00

$3.14

10

HOLDER

5PA-15118-00-00

$5.55

11

BOLT, FLANGE

95022-08012-00

$8.86

12

CLAMP(4NX)

90461-10136-00

$18.80
