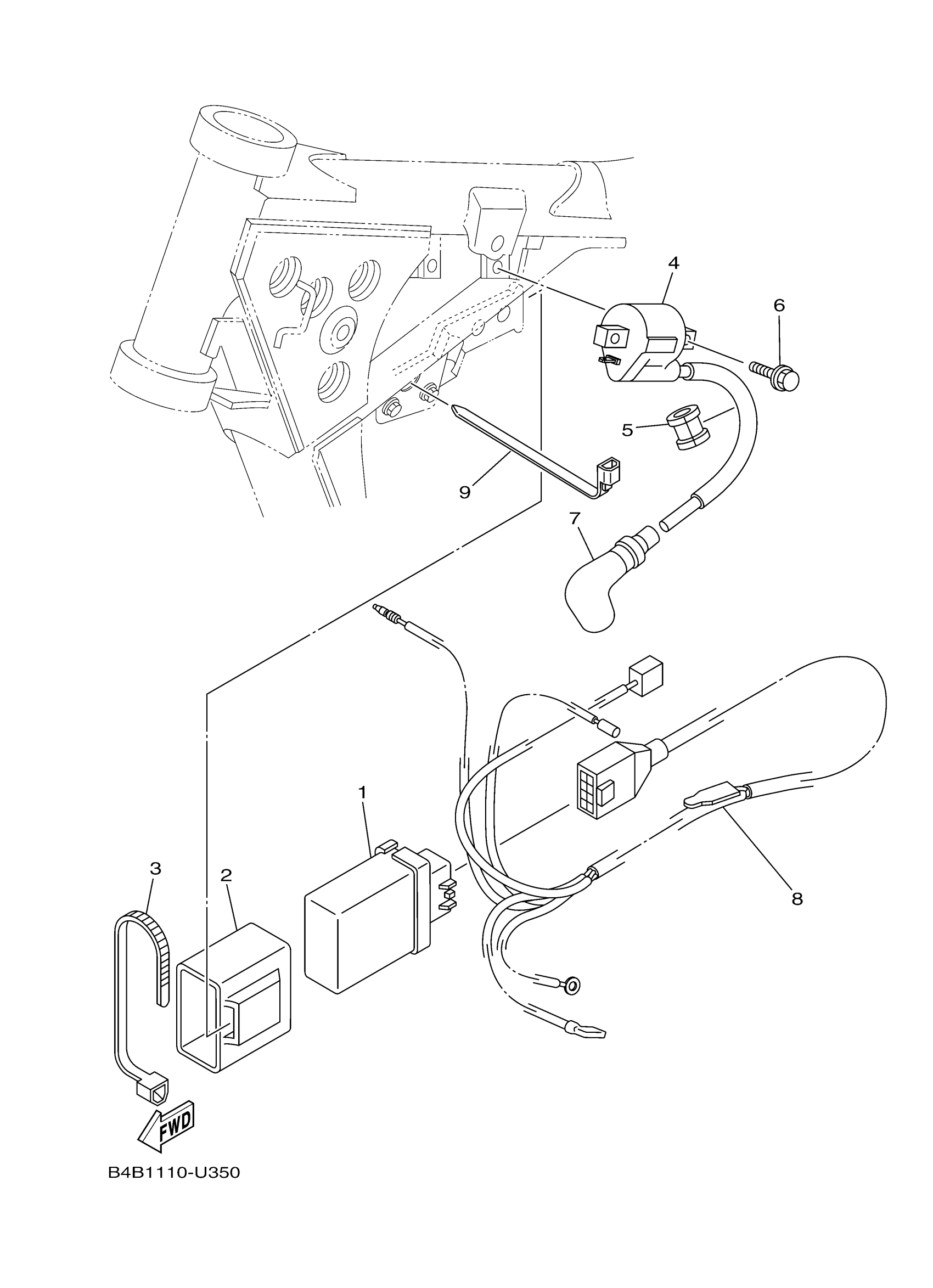

Yamaha YZ85K (YZ85) B4B1 2019 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

B4B-85540-00-00

Unavailable

2

BAND

5PA-85546-00-00

$19.03

3

CLAMP, HOSE(3KJ)

90460-15126-00

$5.63

4

IGNITION COIL ASSY

4JG-82310-04-00

Unavailable

5

GROMMET

90480-11015-00

$3.37

6

BOLT, FLANGE

90105-06180-00

$2.15

7

PLUG CAP ASSY

8DG-82370-00-00

$42.47

8

WIRE, SUB LEAD

B4B-82509-00-00

Unavailable

9

CLAMP(4FM)

90464-15195-00

$2.58
