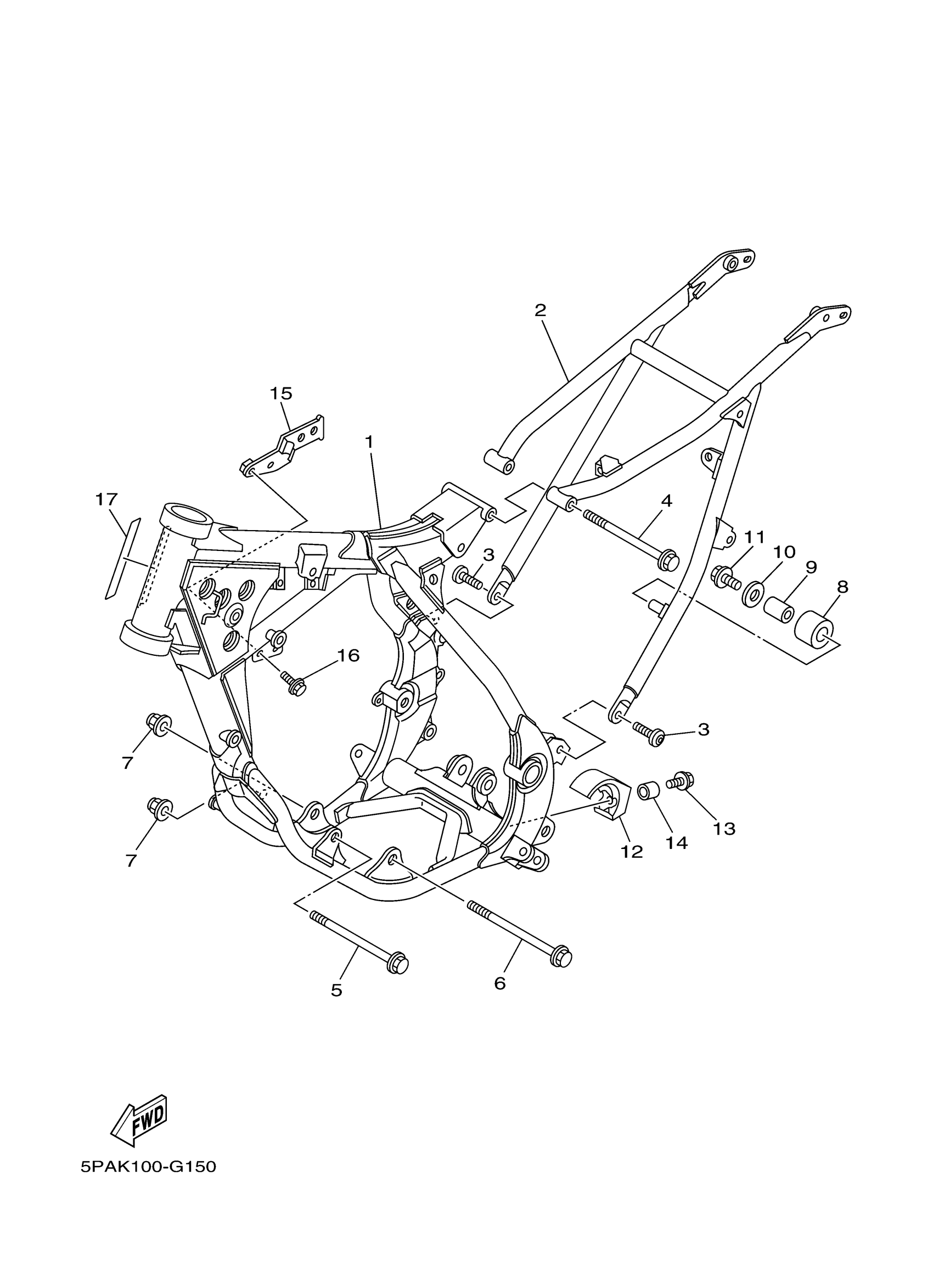

Yamaha YZ85J (YZ85) 1SNK 2018 FRAME Diagram

#

Description
Price

1

FRONT FRAME SET.

99999-04414-00

$1,132.99

2

REAR FRAME COMP.

5PA-21190-02-33

$276.79

3

BOLT

90111-08029-00

$5.87

4

BOLT, FLANGE

95812-08125-00

$3.60

5

BOLT, FLANGE

90105-10220-00

Unavailable

6

BOLT, FLANGE

90105-10219-00

$5.36

7

NUT, S/L FLANGE

95602-10200-00

$2.14

8

TENSIONER

30X-22178-00-00

$29.42

9

BUSH

4V4-22184-00-00

$3.32

10

WASHER, PLATE

90201-08078-00

$3.29

11

BOLT, FLANGE

95022-08012-00

$8.86

12

TENSIONER SET

99999-04397-00

$15.99

13

BOLT, WITH WASHER

90119-06159-00

$5.86

14

COLLAR(51L)

90387-067K6-00

$6.94

15

BRACKET, C.D.I. UNIT

5PA-21274-10-00

$9.12

16

BOLT, FLANGE

95022-06012-00

Unavailable

17

PROTECTOR, FUEL TANK

3HA-24141-00-00

Unavailable
