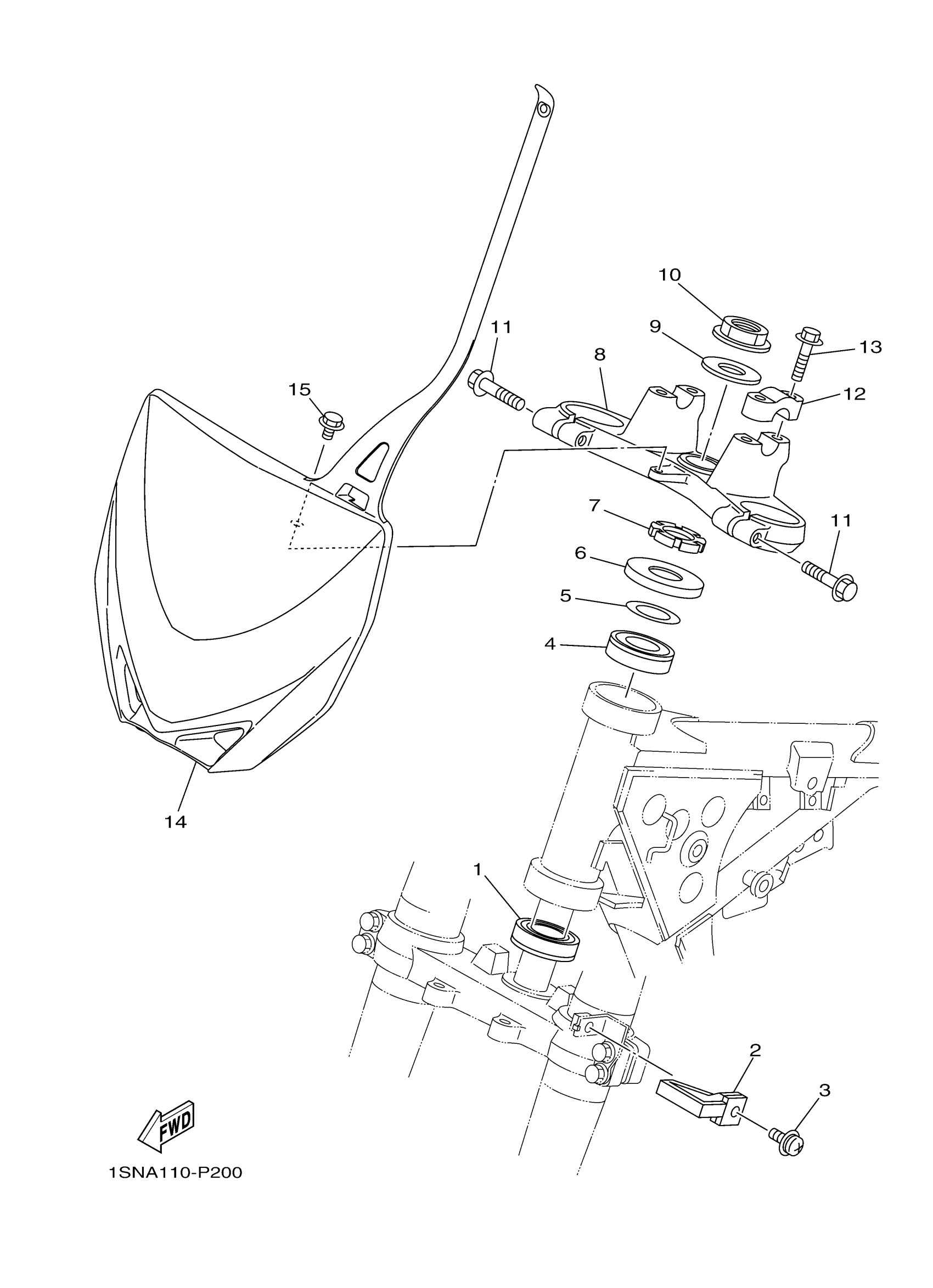

Yamaha YZ85H (YZ85) 1SNG 2017 STEERING Diagram

#

Description
Price

1

BEARING(4ES)

93332-00079-00

$59.36

2

GUIDE, CABLE

4DA-23389-00-00

$22.83

3

SCREW, PAN HEAD(3YL)

98580-05014-00

$6.99

4

BEARING(4ES)

93332-00079-00

$59.36

5

WASHER, PLATE(1FK)

90201-256K5-00

$10.23

6

COVER, BALL RACE 1

1J7-23415-00-00

$6.33

7

NUT

90179-25004-00

$19.41

8

CROWN, HANDLE

1SN-23435-00-00

$118.56

9

WASHER, PLATE

90201-22018-00

$3.82

10

NUT

90179-22025-00

$15.46

11

BOLT, FLANGE(4KG)

95024-08040-00

$5.75

12

HOLDER, HANDLE UPP

1SN-23441-00-00

$17.77

13

BOLT, FLANGE

95022-08030-00

$3.12

14

PLATE, NUMBER

1SN-23485-01-00

Unavailable

15

BOLT, FLANGE

90105-06064-00

$2.49
