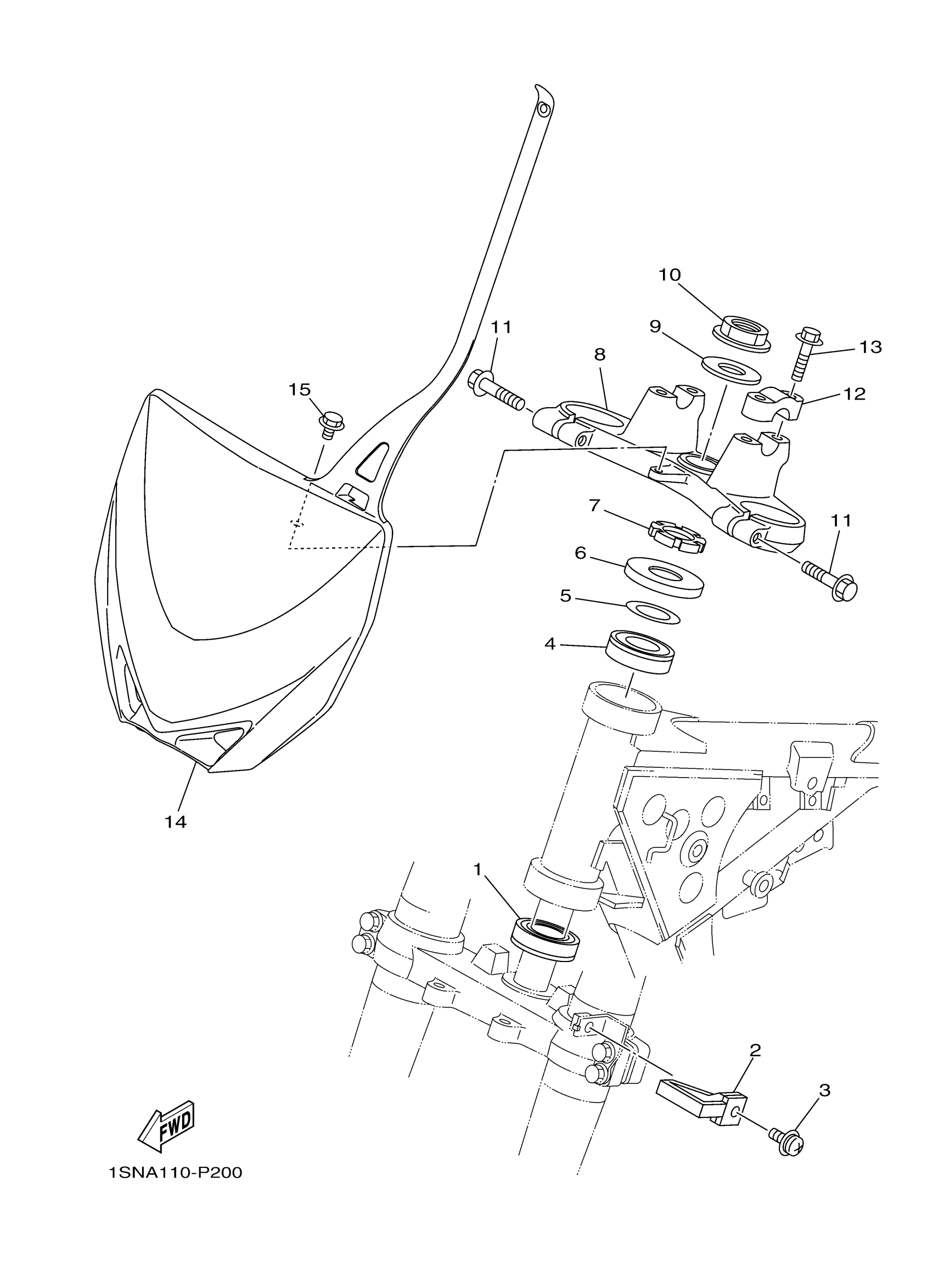

2016 Yamaha YZ85 (YZ85G) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 2016 Yamaha YZ85 (YZ85G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha YZ85 (YZ85G) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BEARING(4ES)

93332-00079-00

1

$61.86

In stock

2

GUIDE, CABLE

4DA-23389-00-00

1
Out of stock

3

SCREW, PAN HEAD(3YL)

98580-05014-00

1

$6.99

In stock

4

BEARING(4ES)

93332-00079-00

1

$61.86

In stock

5

WASHER, PLATE(1FK)

90201-256K5-00

1

$10.38

In stock

6

COVER, BALL RACE 1

1J7-23415-00-00

1

$6.43

In stock

7

NUT

90179-25004-00

1

$20.78

In stock

8

CROWN, HANDLE

1SN-23435-00-00

1
Out of stock

9

WASHER, PLATE

90201-22018-00

1

$4.11

In stock

10

NUT

90179-22025-00

1

$16.55

In stock

11

BOLT, FLANGE(4KG)

95024-08040-00

1

$6.17

In stock

12

HOLDER, HANDLE UPP

1SN-23441-00-00

1
Out of stock

13

BOLT, FLANGE

95022-08030-00

1

$3.33

In stock

14

PLATE, NUMBER

1SN-23485-01-00

—

$60.77

In stock

15

BOLT, FLANGE

90105-06064-00

—

$2.66

In stock
