2015 Yamaha YZ85 (YZ85F) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2015 Yamaha YZ85 (YZ85F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

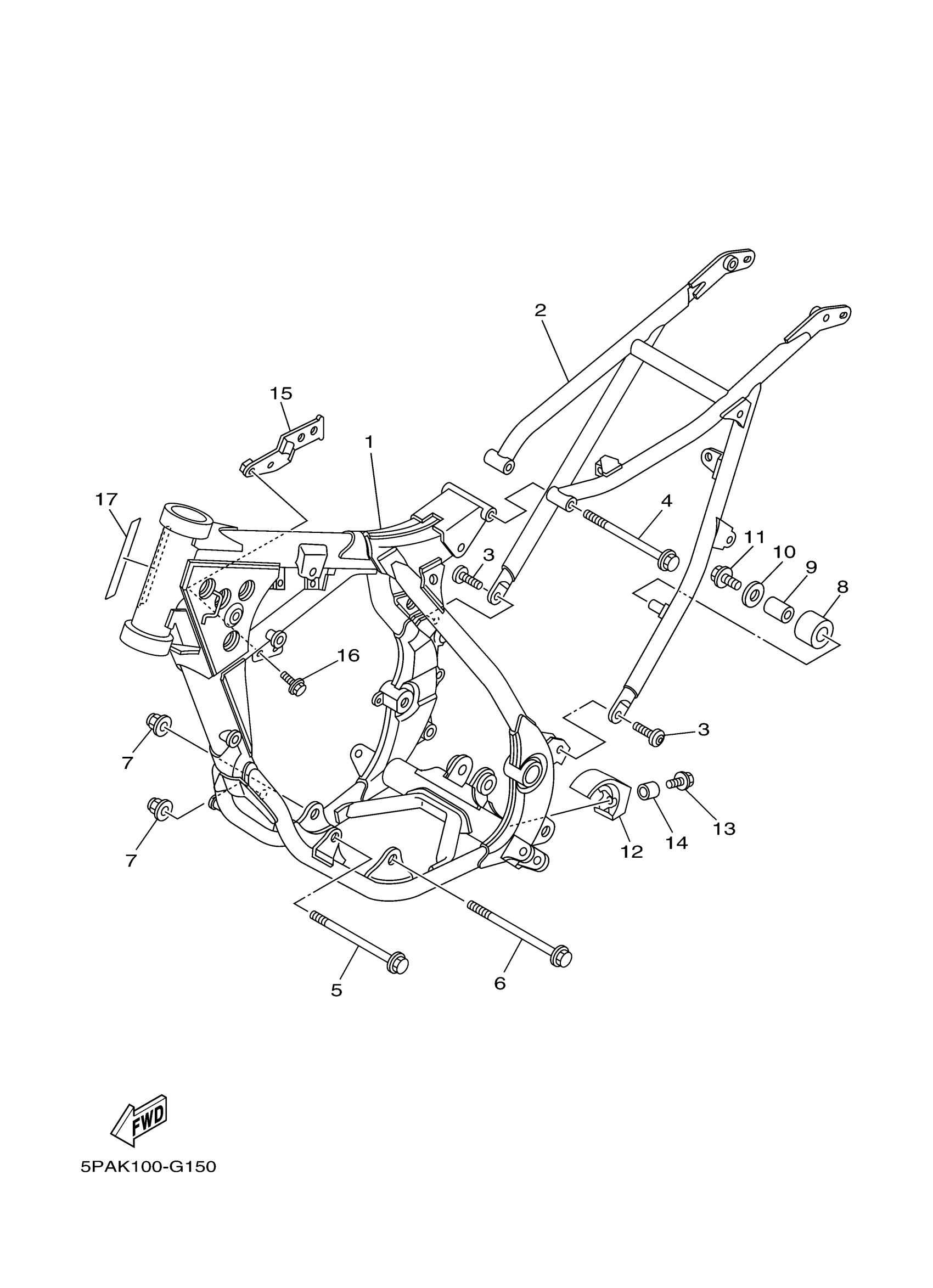

2015 Yamaha YZ85 (YZ85F) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FRAME SET.

99999-04414-00

1
Out of stock

2

REAR FRAME COMP.

5PA-21190-02-33

1

$289.57

In stock

3

BOLT

90111-08029-00

1

$6.31

In stock

4

BOLT, FLANGE

95812-08125-00

1

$3.77

In stock

5

BOLT, FLANGE

90105-10220-00

1

$8.82

In stock

6

BOLT, FLANGE

90105-10219-00

1

$5.74

In stock

7

NUT, S/L FLANGE

95602-10200-00

1

$2.29

In stock

8

TENSIONER

30X-22178-00-00

1
Out of stock

9

BUSH

4V4-22184-00-00

1

$3.57

In stock

10

WASHER, PLATE

90201-08078-00

1

$3.45

In stock

11

BOLT, FLANGE

95022-08012-00

1

$9.51

In stock

12

TENSIONER SET

99999-04397-00

1

$17.12

In stock

13

BOLT, WITH WASHER

90119-06159-00

1

$6.29

In stock

14

COLLAR(51L)

90387-067K6-00

1

$7.43

In stock

15

BRACKET, C.D.I. UNIT

5PA-21274-10-00

1

$9.54

In stock

16

BOLT, FLANGE

95022-06012-00

—

$3.00

In stock

17

PROTECTOR, FUEL TANK

3HA-24141-00-00

—

$11.14

In stock
