Partiron

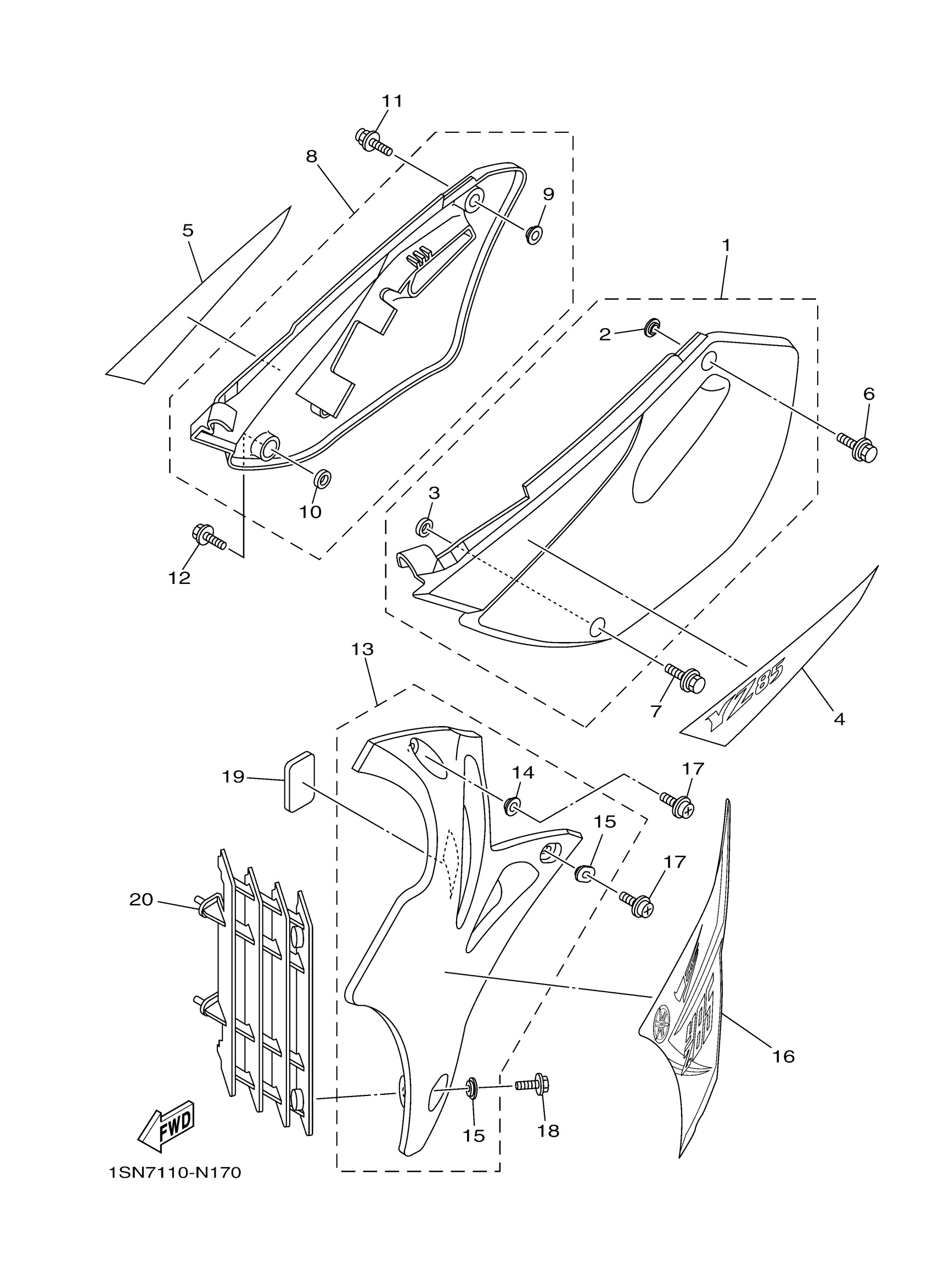

Yamaha YZ85E (YZ85) 1SN7 2014 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

5PA-21711-00-00

Unavailable

2

COLLAR

90387-06009-00

$7.37

3

COLLAR

90387-1001B-00

$2.97

4

GRAPHIC 1

5PA-2173E-30-00

Unavailable

5

GRAPHIC 2

5PA-2173F-30-00

Unavailable

6

BOLT, WITH WASHER

90119-06240-00

$2.92

7

BOLT, WITH WASHER(4ES)

90119-06217-00

$4.89

8

COVER, SIDE 2

5PA-21721-00-00

$39.58

9

COLLAR

90387-06009-00

$7.37

10

COLLAR

90387-1001B-00

$2.97

11

BOLT, WITH WASHER

90119-06240-00

$2.92

12

BOLT, WITH WASHER(4ES)

90119-06217-00

$4.89

13

COVER, SIDE 3

5PA-21731-10-00

$50.55

14

COLLAR

90387-06009-00

$7.37

15

COLLAR

5PA-21748-00-00

Unavailable

16

GRAPHIC 3

1SN-2174G-20-00

Unavailable

17

SCREW, WITH WASHER(3YJ)

90159-06182-00

Unavailable

18

SCREW, WITH WASHER

90159-06021-00

Unavailable

19

DAMPER

1FK-21746-00-00

Unavailable

20

PANEL 1

5PH-2172A-11-00

Unavailable
