FRONT FORK

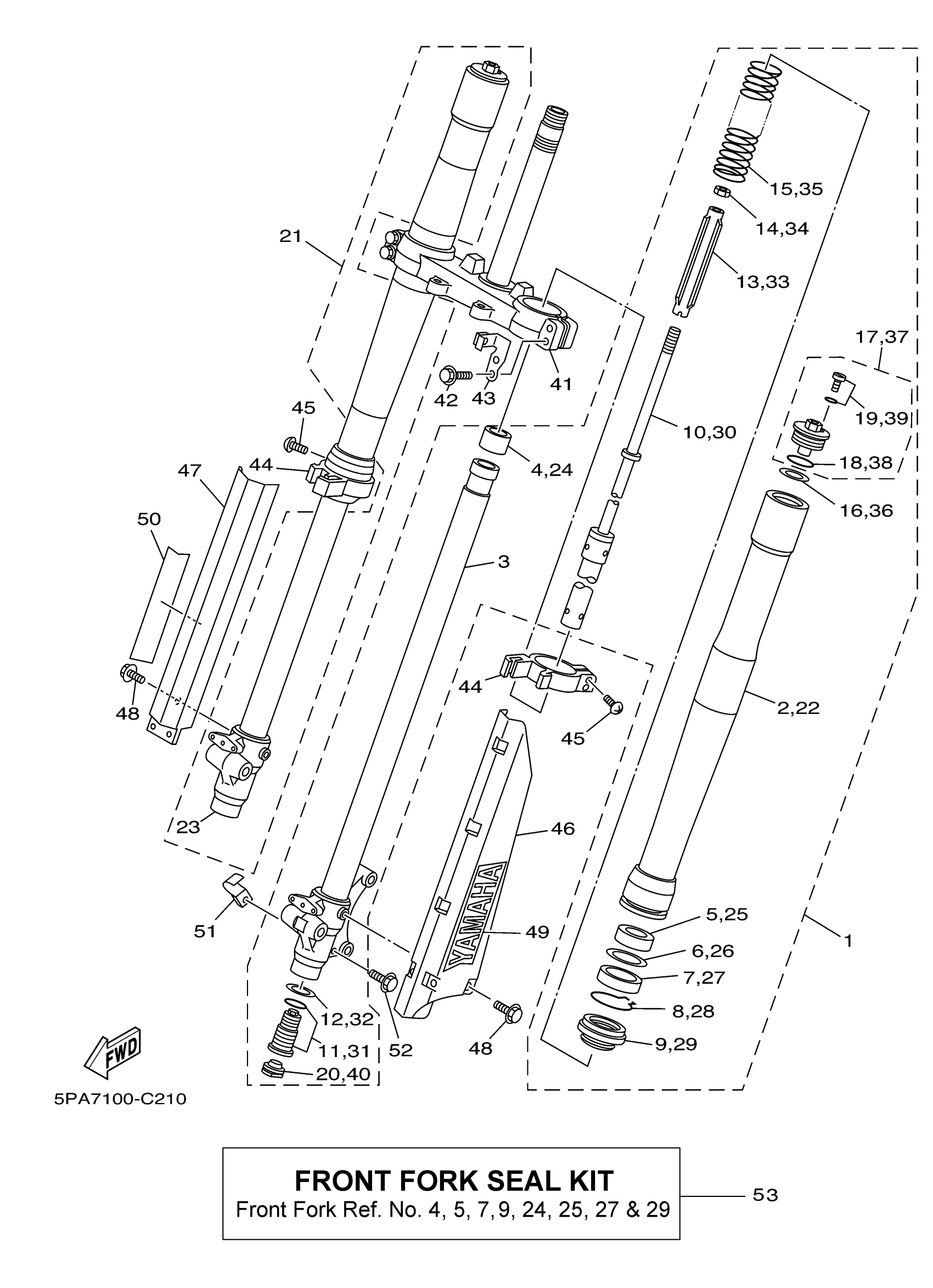

2014 Yamaha YZ85 (YZ85E) Front Fork Diagram
Find the part on the Front Fork diagram for your 2014 Yamaha YZ85 (YZ85E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRONT FORK ASSY (L.H)
5PA-23102-10-00
2
TUBE, OUTER
5PA-23136-10-00
3
INNER TUBE COMP.2
5PA-23120-00-00
10
CYLINDER COMP., FRONT FORK
5PA-23170-00-00
11
VALVE COMP.
5PA-2316A-00-00
13
SEAT, SPRING UPPER
4ES-23142-00-00
17
BOLT, CAP
4ES-23111-10-00
19
B0LT, SPECIAL
3JD-23394-00-00
20
PLUG
3JD-2312G-L0-00
21
FRONT FORK ASSY (R.H)
5PA-23103-10-00
22
TUBE, OUTER
5PA-23136-10-00
23
INNER TUBE COMP.1
5PA-23110-00-00
30
CYLINDER COMP., FRONT FORK
5PA-23170-00-00
31
VALVE COMP.
5PA-2316A-00-00
33
SEAT, SPRING UPPER
4ES-23142-00-00
37
BOLT, CAP
4ES-23111-10-00
39
B0LT, SPECIAL
3JD-23394-00-00
40
PLUG
3JD-2312G-L0-00
41
UNDER BRACKET COMP.
5PA-23340-01-00
43
GUIDE, CABLE
5PA-2331E-10-00
44
PROTECTER GUIDE COMP., 1
4ES-2314F-00-00
46
PROTECTER COMP., 1
5PA-2314H-L0-00
47
PROTECTER COMP., 2
5PA-2314J-L0-00
49
EMBLEM, YAMAHA
4XL-2153A-11-00
50
EMBLEM, YAMAHA
4XL-2153A-11-00
51
HOLDER, CABLE 1
5PA-23318-00-00
53
FORK SEAL KIT (TWO FORKS)
4ES-W003B-00-00
