2014 Yamaha YZ85 (YZ85E) Electrical 1 Diagram

← All diagrams

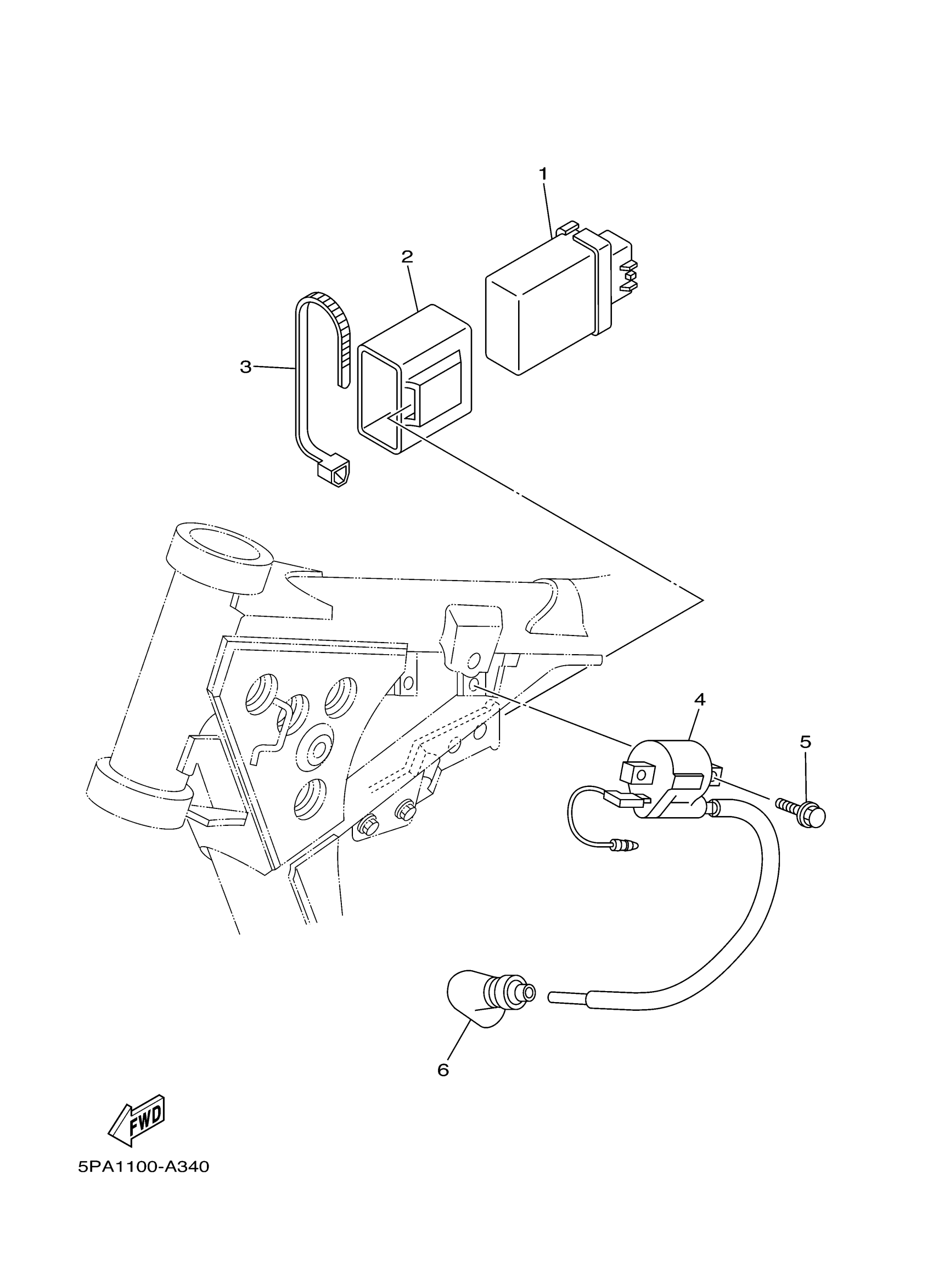

Find the part on the Electrical 1 diagram for your 2014 Yamaha YZ85 (YZ85E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Yamaha YZ85 (YZ85E) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

C.D.I. UNIT ASSY

5PA-85540-02-00

1
Out of stock

2

BAND

5PA-85546-00-00

1

$19.03

In stock

3

CLAMP, HOSE(3KJ)

90460-15126-00

1

$5.63

In stock

4

IGNITION COIL ASSY

5PA-82310-03-00

1
Out of stock

5

BOLT, FLANGE

90105-06180-00

1

$2.15

In stock

6

PLUG CAP ASSY

8DG-82370-00-00

1
Out of stock
