2011 Yamaha YZ85 (YZ85A) Side Cover Diagram

← All diagrams

Find the part on the Side Cover diagram for your 2011 Yamaha YZ85 (YZ85A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

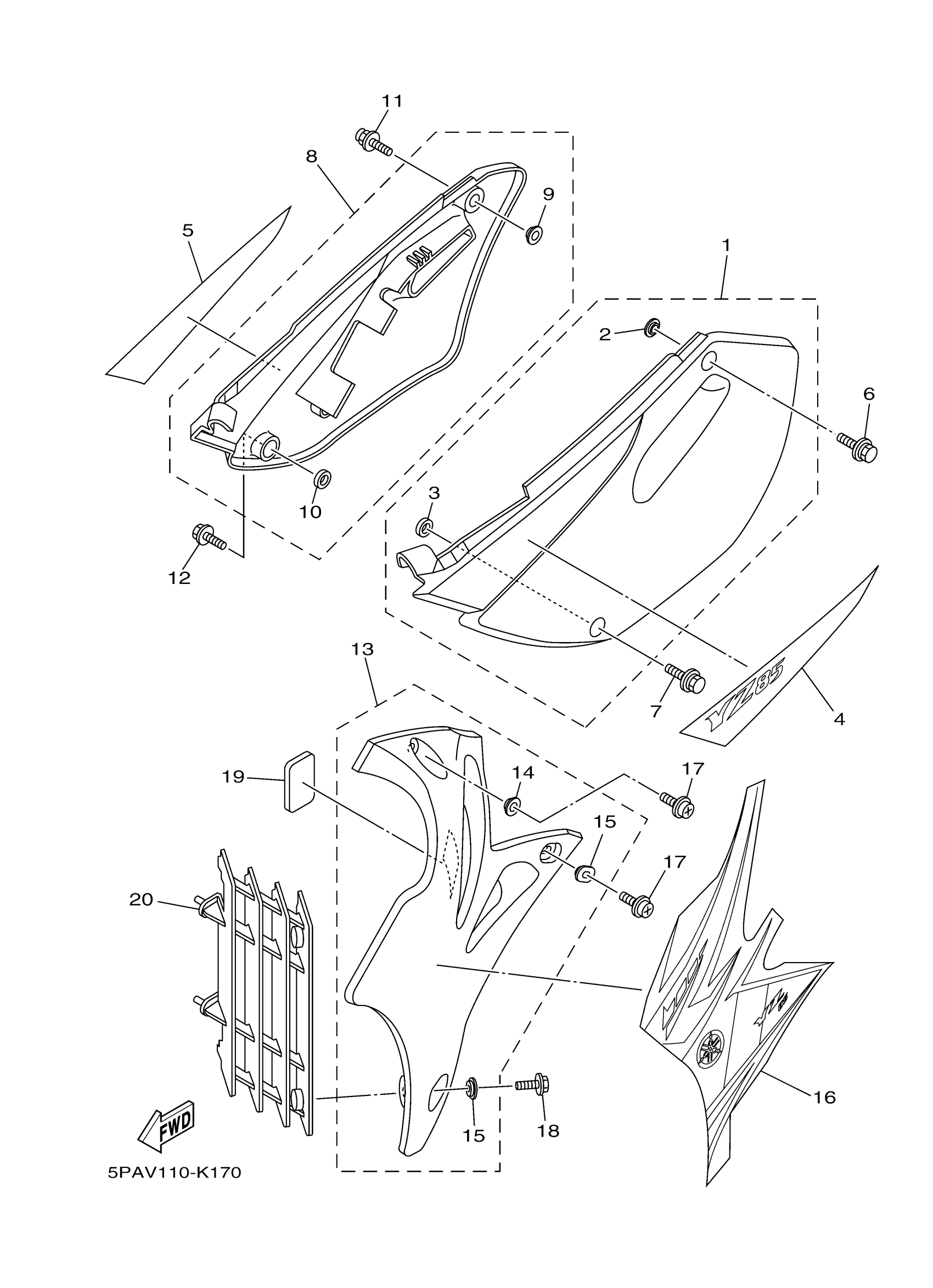

2011 Yamaha YZ85 (YZ85A) Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

5PA-21711-00-00

—
Out of stock

2

COLLAR

90387-06009-00

1

$7.91

In stock

3

COLLAR

90387-1001B-00

1

$3.02

In stock

4

GRAPHIC 1

5PA-2173E-30-00

—
Out of stock

5

GRAPHIC 2

5PA-2173F-30-00

—
Out of stock

6

BOLT, WITH WASHER

90119-06240-00

1

$2.97

In stock

7

BOLT, WITH WASHER(4ES)

90119-06217-00

1

$5.10

In stock

8

COVER, SIDE 2

5PA-21721-00-00

1
Out of stock

9

COLLAR

90387-06009-00

1

$7.91

In stock

10

COLLAR

90387-1001B-00

1

$3.02

In stock

11

BOLT, WITH WASHER

90119-06240-00

1

$2.97

In stock

12

BOLT, WITH WASHER(4ES)

90119-06217-00

1

$5.10

In stock

13

COVER, SIDE 3

5PA-21731-10-00

1
Out of stock

14

COLLAR

90387-06009-00

1

$7.91

In stock

15

COLLAR

5PA-21748-00-00

—

$13.00

In stock

16

GRAPHIC, 3

5PA-2174G-10-00

—
Out of stock

17

SCREW, WITH WASHER(3YJ)

90159-06182-00

—

$6.42

In stock

18

SCREW, WITH WASHER

90159-06021-00

—

$2.51

In stock

19

DAMPER

1FK-21746-00-00

—
Out of stock

20

PANEL 1

5PH-2172A-11-00

—

$18.40

In stock
