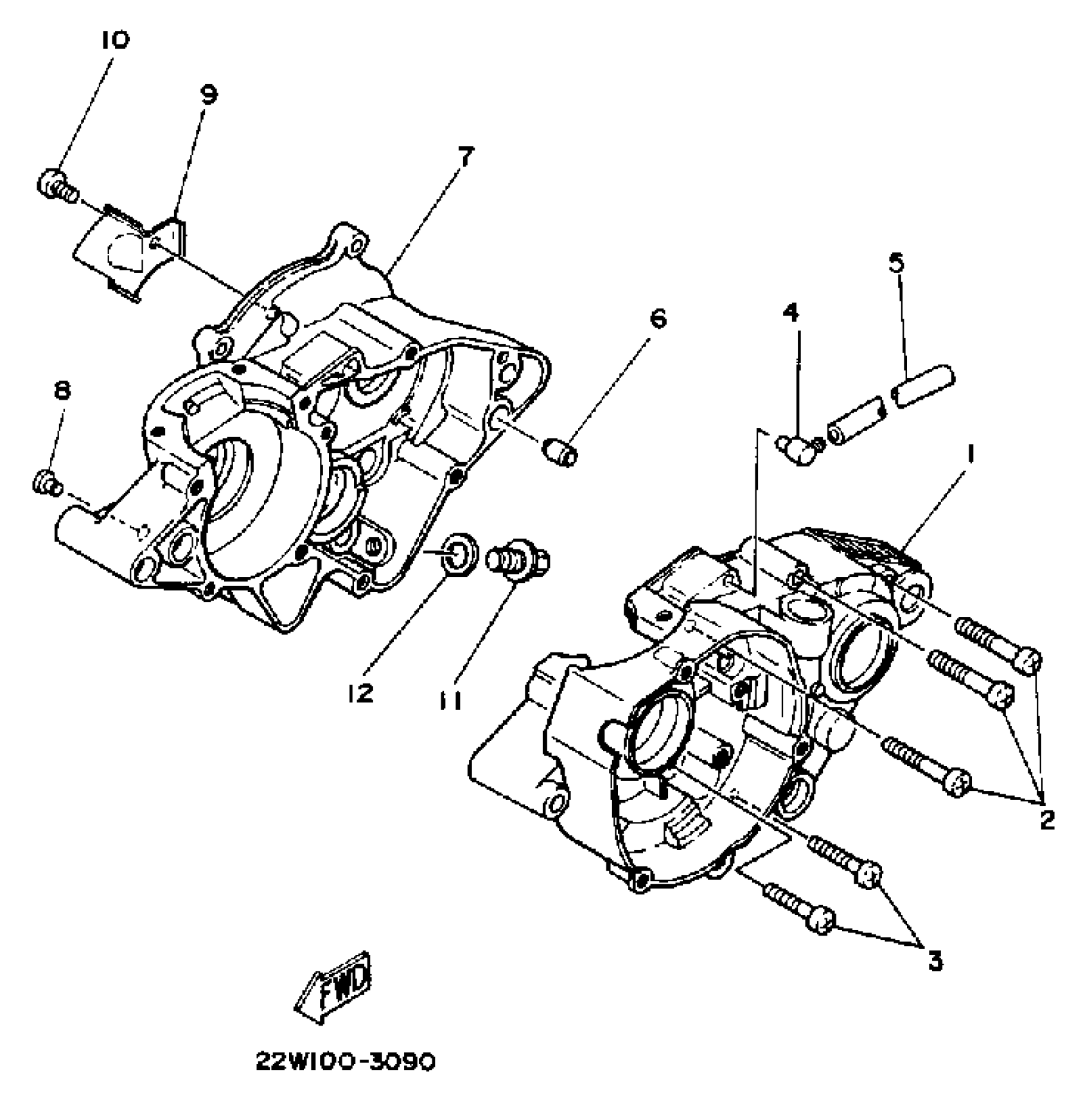

Yamaha YZ80W (YZ80W) 1989 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

2VE-15111-00-00

Unavailable

2

SCREW PAN HEAD

98580-06545-00

$5.55

3

SCREW, PAN HEAD(6H4)

97885-06035-00

$5.40

4

CONNECTOR, SUCTION PIPE

353-13115-01-00

$4.90

5

HOSE (L340)

90445-08684-00

$3.14

6

PIN, DOWEL

99530-12016-00

$3.85

7

CRANKCASE 2

2VE-15121-00-00

Unavailable

8

PLUG (17J)

90338-07124-00

$7.97

9

PLATE

5X2-15113-01-00

Unavailable

10

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

11

PLUG, STRAIGHT SCREW (22F)

90340-12097-00

$2.63

12

GASKET (3JD1)

90430-12207-00

$6.32
