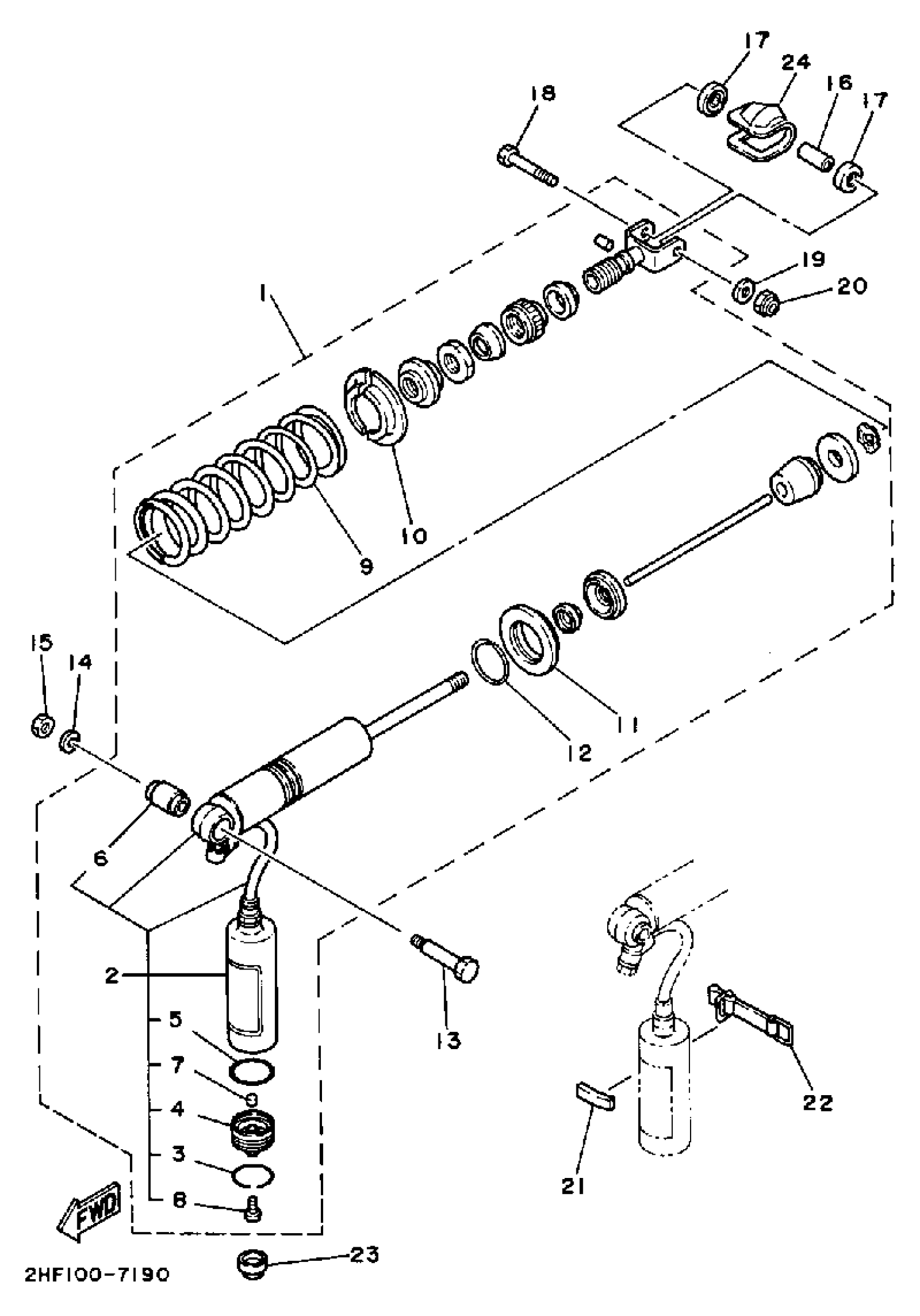

Yamaha YZ80T (YZ80T) 1987 REAR SHOCKS Diagram

#

Description
Price

1

SHK/ABS ASSEMBLY, REAR ASSEMBLY

3ML-22210-00-P0

Unavailable

2

. DAMPER SUB ASSEMBLY

2HF-22201-00-00

Unavailable

3

CIRCLIP (2HF)

(93450-40059-00)

Unavailable

4

CAP, HOUSING

(39K-22412-00-00)

Unavailable

5

O-RING (21A)

93210-34633-00

$9.49

6

.. BUSH, RR SHOCK ABS

2X6-22216-00-00

Unavailable

7

. VALVE, RUBBER

483-22419-01-00

Unavailable

8

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

9

SPRING, R.SHOCK (HARD)

2HF-22212-30-6W

Unavailable

9

SPRING, R.SHOCK (HARD)

2HF-22212-30-6W

Unavailable

9

SPRING, R.SHOCK (HARD)

2HF-22212-30-6W

Unavailable

10

GUIDE, SPRING 1

3P6-22214-10-00

$17.49

11

. SEAT, SPRING LOWER

22W-22223-00-00

Unavailable

12

CIRCLIP (5X2)

93440-42101-00

$2.44

13

BOLT (22W)

90109-10729-00

$7.49

14

WASHER, PLATE

92990-10600-00

Unavailable

15

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

16

COLLAR (22W)

90387-106G0-00

Unavailable

17

COVER, THRUST 2

22W-22129-00-00

Unavailable

18

BOLT (22W)

90109-10689-00

Unavailable

19

WASHER, PLATE

92990-10600-00

Unavailable

20

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

21

DAMPER, SUB TANK

24X-22261-00-00

Unavailable

22

HOLDER, SUB TANK

24X-22262-00-00

Unavailable

23

GROMMET

90480-17359-00

Unavailable

24

BOOT, RUBBER

22W-22189-00-00

Unavailable
