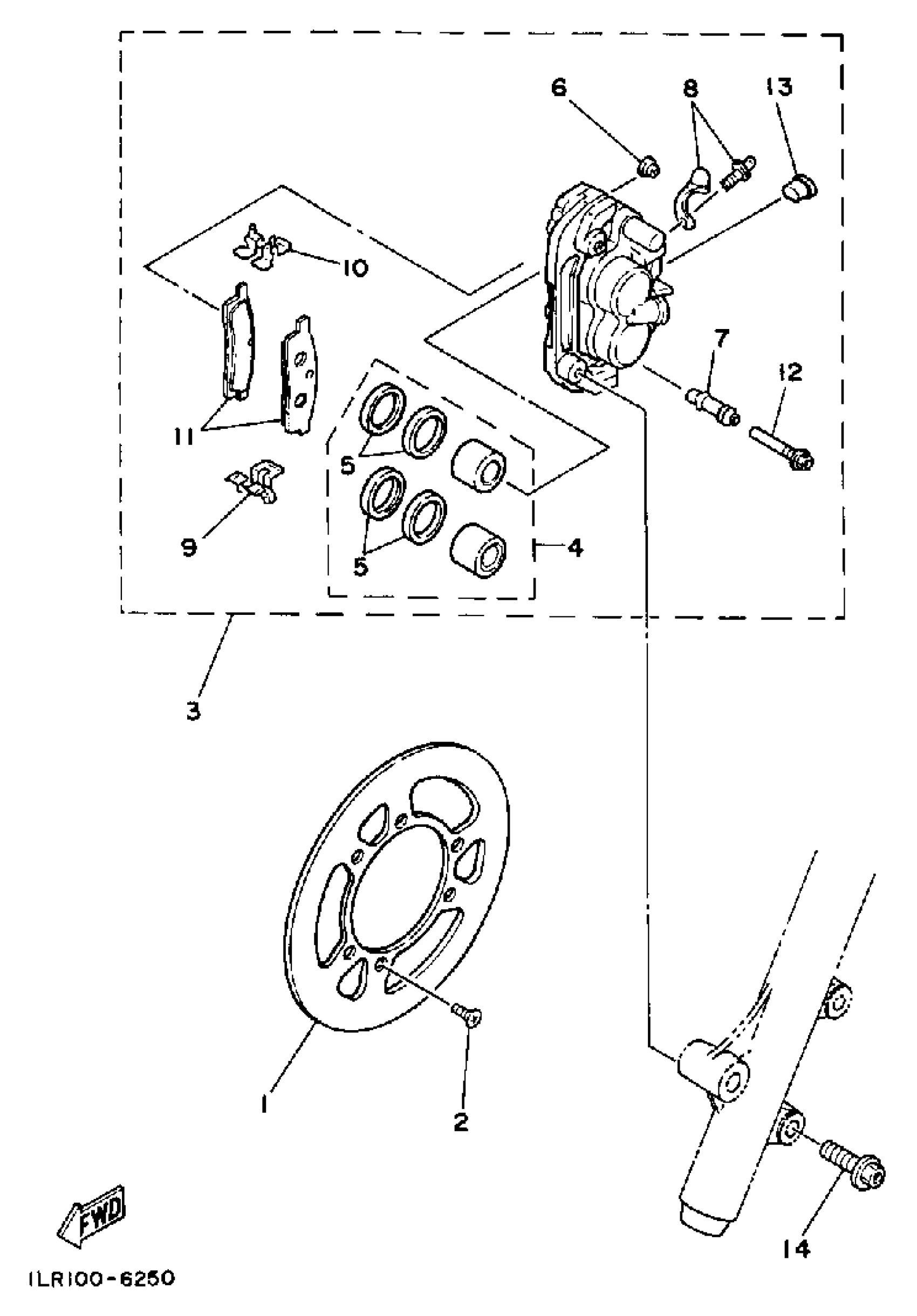

Yamaha YZ80T (YZ80T) 1987 FRONT BRAKE - CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (RT)

1LR-25831-00-00

Unavailable

2

SCREW, FLAT

98707-06012-00

$6.18

3

CALIPER ASSY (LEFT

4ES-2580T-20-00

Unavailable

4

PISTON ASSY, CALIPER

4ES-W0057-10-00

$102.83

5

CALIPER SEAL KIT

4ES-25803-10-00

$57.00

6

BOOT 2

5R2-25937-00-00

$30.21

7

BOOT 2

56A-25937-00-00

$20.28

8

BLEED SCREW KIT

15B-W0048-00-00

$17.96

9

SUPPORT, PAD

56A-25919-00-00

$29.63

10

SUPPORT, PAD

56A-25919-10-00

$26.34

11

BRAKE PAD KIT

4ES-W0045-00-00

Unavailable

12

BOLT

56A-25926-00-00

$11.12

13

CAP, INDICATOR

34X-25845-00-00

$14.55

14

BOLT, FLANGE

95817-08035-00

$4.99
