2000 Yamaha YZ80 (YZ80M1) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2000 Yamaha YZ80 (YZ80M1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

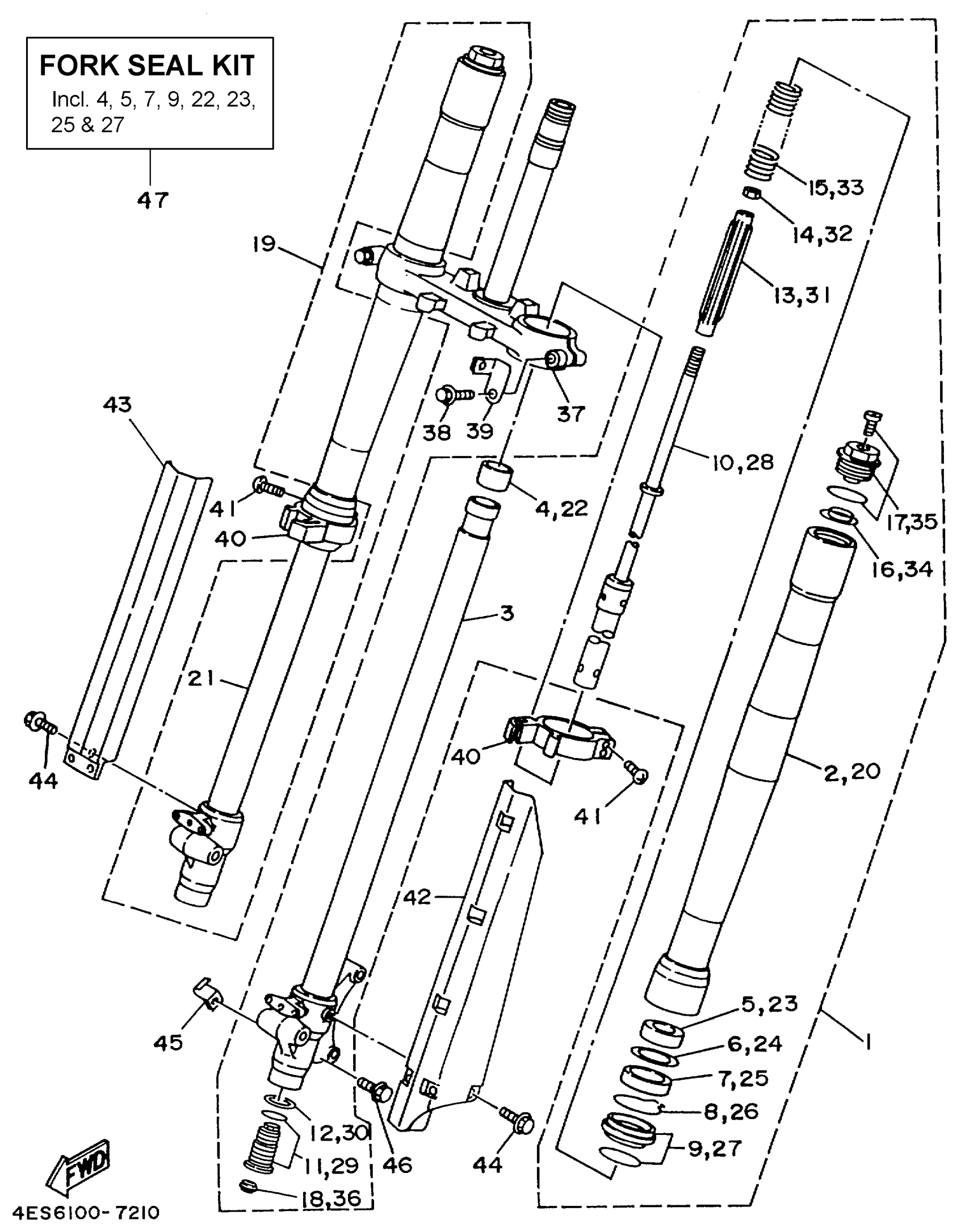

2000 Yamaha YZ80 (YZ80M1) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY (L.H)

4ES-23102-20-00

1
Out of stock

2

. TUBE, OUTER (RIGHT)

4ES-23136-20-00

1
Out of stock

3

. INNER TUBE COMP 2

4ES-23120-00-00

1
Out of stock

4

. PISTON, FRONT FORK

4ES-23171-00-00

1
Out of stock

5

METAL, SLIDE 1

4ES-23125-00-00

1
Out of stock

6

WASHER, SPRING UPPER

5K5-23149-00-00

1

$7.42

In stock

7

OIL SEAL

4ES-23145-00-00

1

$18.57

In stock

8

RING, SNAP

4A1-23156-00-00

1

$4.74

In stock

9

SEAL, DUST

4ES-23144-00-00

1

$19.51

In stock

10

. CYLINDER COMP, FRONT FORK

4ES-23170-10-00

1
Out of stock

11

. VALVE COMP

4ES-2316A-10-00

1
Out of stock

12

GASKET

2HH-23158-L0-00

1

$9.49

In stock

13

SEAT, SPRING UPPER

4ES-23142-00-00

—
Out of stock

14

NUT

3XJ-23357-L0-00

1

$0.72

In stock

15

SPRING, FRONT FORK

4ES-23141-80-00

—

$47.95

In stock

16

SEAT, SPRING UPPER

4V4-23142-L0-00

—
Out of stock

17

BOLT, CAP

4ES-23111-10-00

—
Out of stock

18

PLUG

3JD-2312G-L0-00

—
Out of stock

19

FRONT FORK ASSY (R.H)

4ES-23103-20-00

1
Out of stock

20

. TUBE, OUTER (RIGHT)

4ES-23136-20-00

1
Out of stock

21

. INNER TUBE COMP 1

4ES-23110-00-00

1
Out of stock

22

. PISTON, FRONT FORK

4ES-23171-00-00

1
Out of stock

23

METAL, SLIDE 1

4ES-23125-00-00

1
Out of stock

24

WASHER, SPRING UPPER

5K5-23149-00-00

1

$7.42

In stock

25

OIL SEAL

4ES-23145-00-00

1

$18.57

In stock

26

RING, SNAP

4A1-23156-00-00

1

$4.74

In stock

27

SEAL, DUST

4ES-23144-00-00

1

$19.51

In stock

28

. CYLINDER COMP, FRONT FORK

4ES-23170-10-00

1
Out of stock

29

. VALVE COMP

4ES-2316A-10-00

1
Out of stock

30

GASKET

2HH-23158-L0-00

1

$9.49

In stock

31

SEAT, SPRING UPPER

4ES-23142-00-00

—
Out of stock

32

NUT

3XJ-23357-L0-00

1

$0.72

In stock

33

SPRING, FRONT FORK

4ES-23141-80-00

—

$47.95

In stock

34

SEAT, SPRING UPPER

4V4-23142-L0-00

—
Out of stock

35

BOLT, CAP

4ES-23111-10-00

—
Out of stock

36

PLUG

3JD-2312G-L0-00

—
Out of stock

37

UNDER BRACKET COMP.

4ES-23340-00-00

1
Out of stock

38

BOLT, SMALL FLANGE

95024-10040-00

—

$3.38

In stock

39

GUIDE, CABLE

4ES-2331E-00-00

1
Out of stock

40

PROTECTER GUIDE COMP., 1

4ES-2314F-00-00

—
Out of stock

41

SCREW, PAN HEAD

98517-04025-00

1

$2.94

In stock

42

PROTECTER COMP., 1

5PA-2314H-L0-00

—
Out of stock

43

PROTECTER COMP., 2

5PA-2314J-L0-00

—
Out of stock

44

BOLT, FLANGE(3BM)

95024-06008-00

—
Out of stock

45

HOLDER, CABLE 1

4ES-23318-00-00

—
Out of stock

46

BOLT, WASHER BASED(JA9)

90105-06696-00

—

$6.29

In stock

47

FORK SEAL KIT (TWO FORKS)

4ES-W003B-00-00

—
Out of stock
