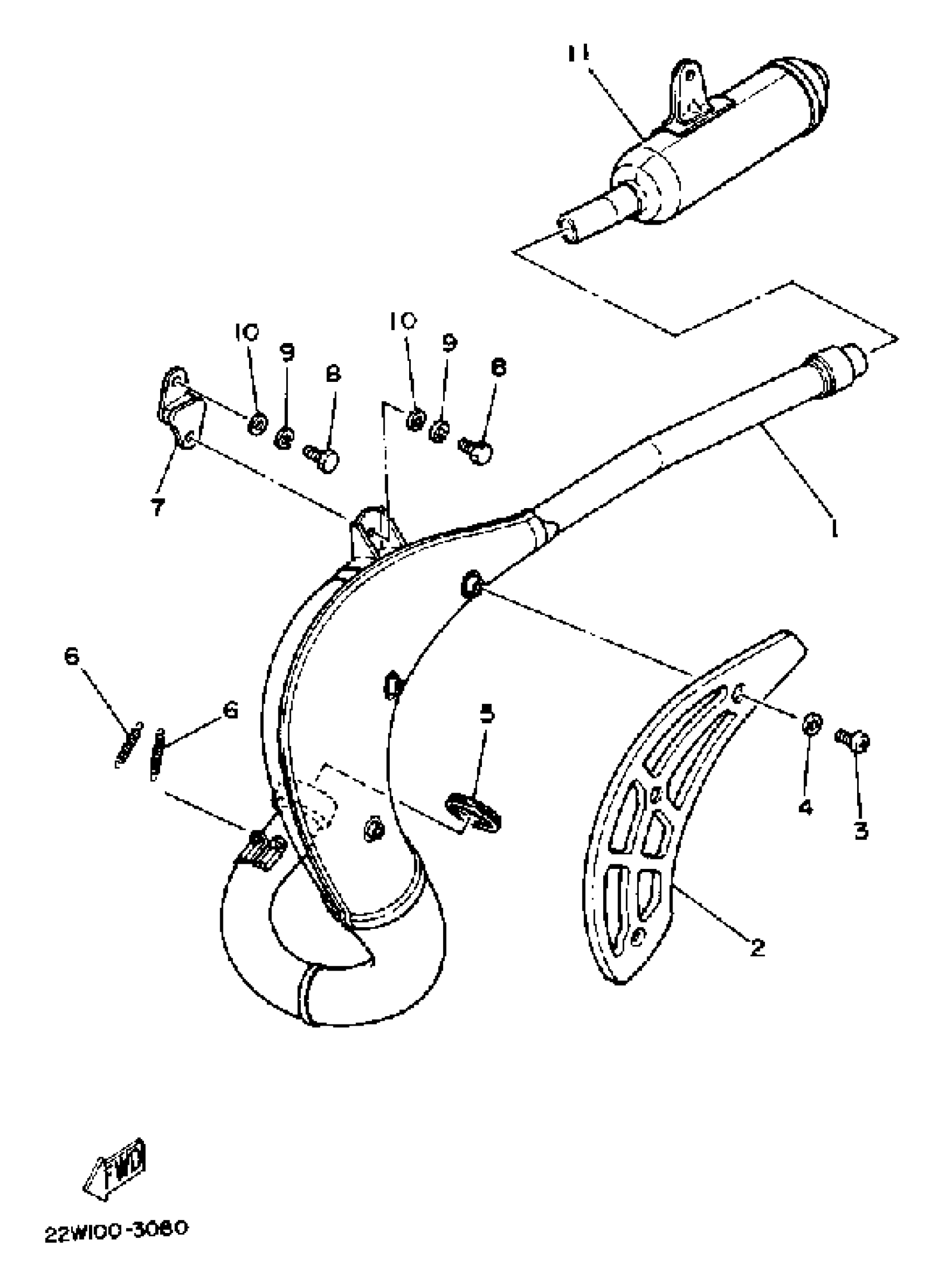

Yamaha YZ80K (YZ80) 1983 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L

22W-14610-00-00

Unavailable

2

PROTECTOR, MUFF 1

22W-14718-00-00

Unavailable

3

SCREW, BIND(2TV)

98980-06008-00

$0.58

4

WASHER, PLATE(3MB)

90202-05187-00

$1.01

5

GASKET, EXHAUST PIPE

4BR-14613-00-00

$5.23

6

SPRING, TENSION (1W4)

90507-20030-00

$11.73

7

STAY, MUFFLER 1

565-14771-01-00

$15.57

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

9

WASHER, SPRING

92995-06100-00

$2.95

10

WASHER, PLAIN (646)

92990-06600-00

$1.84

11

SILENCER, EXHAUST

22W-14753-10-00

Unavailable
