1997 Yamaha YZ80 (YZ80J1) Steering Handle Cable Diagram

← All diagrams

Find the part on the Steering Handle Cable diagram for your 1997 Yamaha YZ80 (YZ80J1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

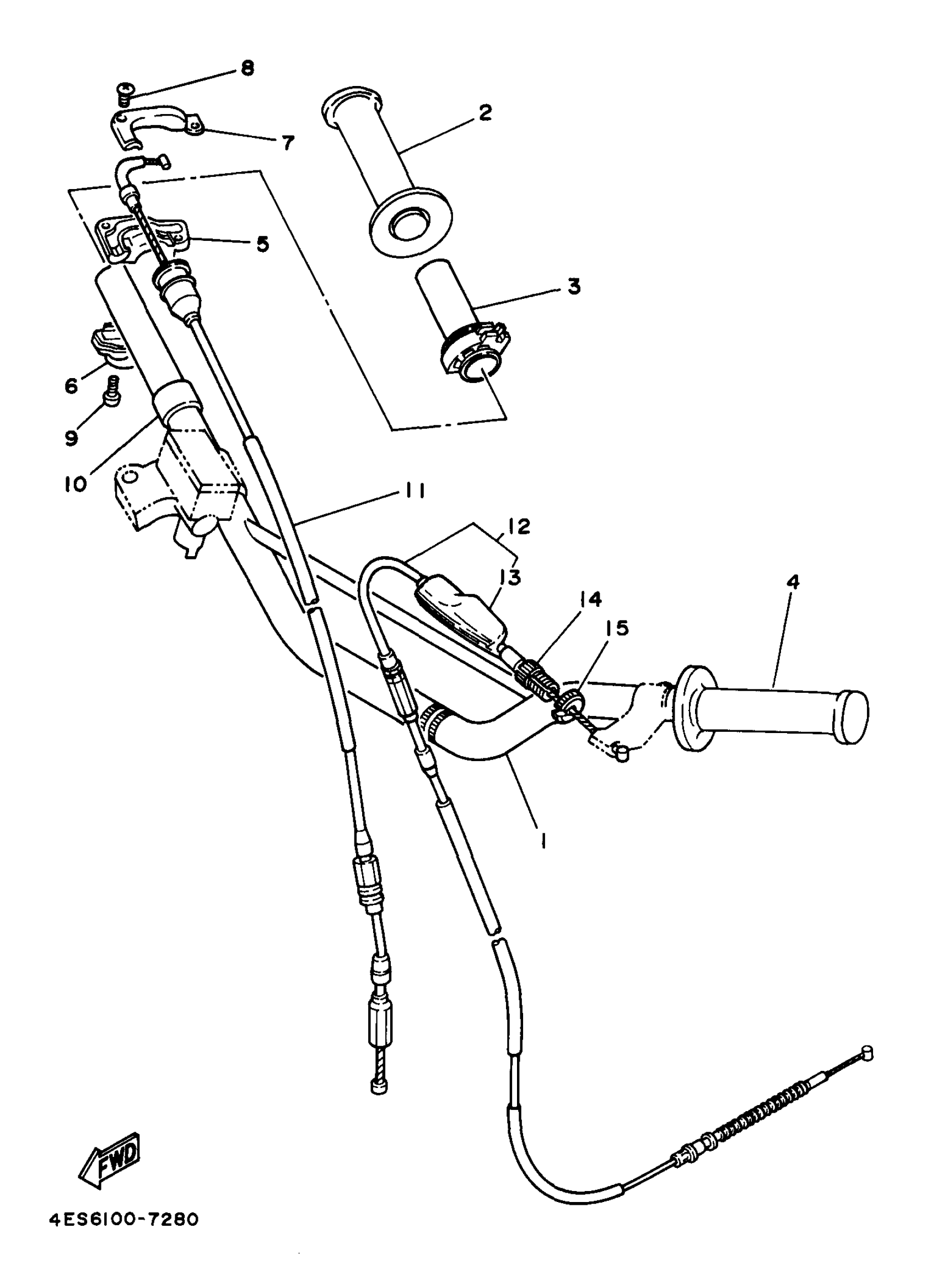

1997 Yamaha YZ80 (YZ80J1) Steering Handle Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

4ES-26111-30-00

1
Out of stock

2

GRIP (RIGHT)

4GY-26242-00-00

1

$25.66

In stock

3

TUBE, THROTTLE GUIDE

22W-26243-00-00

1

$26.34

In stock

4

GRIP (LEFT)

4GY-26241-00-00

1

$25.66

In stock

5

CAP, GRIP UPPER

5X2-26281-00-00

1

$31.34

In stock

6

CAP, GRIP UNDER

322-26282-00-00

1

$23.60

In stock

7

CAP, WIRE

5X2-2628H-01-00

1

$21.62

In stock

8

SCREW, FLAT

98707-04012-00

1

$1.43

In stock

9

SCREW, PAN HEAD(JJ6)

98507-05016-00

1

$1.40

In stock

10

COLLAR (13X)

90387-220G4-00

—
Out of stock

11

CABLE, THROTTLE 1

4ES-26311-01-00

1
Out of stock

12

CABLE, CLUTCH

4ES-26335-11-00

1
Out of stock

13

COVER, LEVER

498-26372-00-00

—

$26.34

In stock

14

BOLT

90123-08002-00

1

$8.93

In stock

15

NUT

90179-08030-00

1

$3.78

In stock
