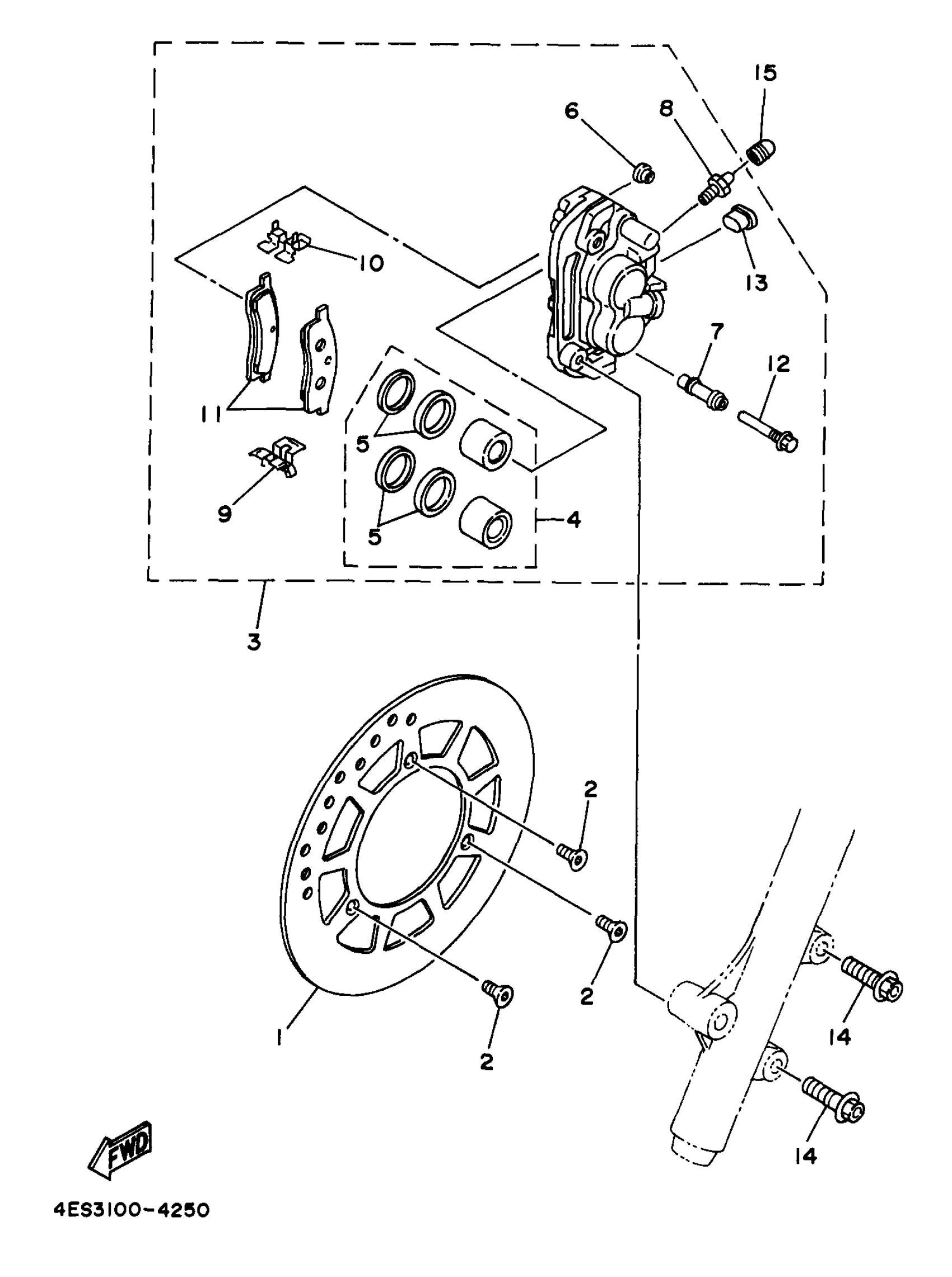

Yamaha YZ80J1 (YZ80) 1997 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE

4ES-2582T-00-00

Unavailable

2

SCREW, COUNTERSUNK

90151-06080-00

$1.18

3

CALIPER ASSY (LEFT

4ES-2580T-20-00

Unavailable

4

PISTON ASSY, CALIPER

4ES-W0057-10-00

$98.29

5

CALIPER SEAL KIT

4ES-25803-10-00

$54.49

6

BOOT 2

5R2-25937-00-00

$30.21

7

BOOT 2

56A-25937-00-00

$19.38

8

SCREW, BLEED

47X-25824-01-00

$12.16

9

SUPPORT, PAD

56A-25919-00-00

$29.63

10

SUPPORT, PAD

56A-25919-10-00

$26.34

11

BRAKE PAD KIT

4ES-W0045-20-00

Unavailable

12

BOLT

56A-25926-00-00

$10.63

13

CAP, INDICATOR

34X-25845-00-00

$13.91

14

BOLT, WASHER BASED (11H)

90105-08211-00

$2.17

15

CAP

1D7-25825-00-00

$6.10
