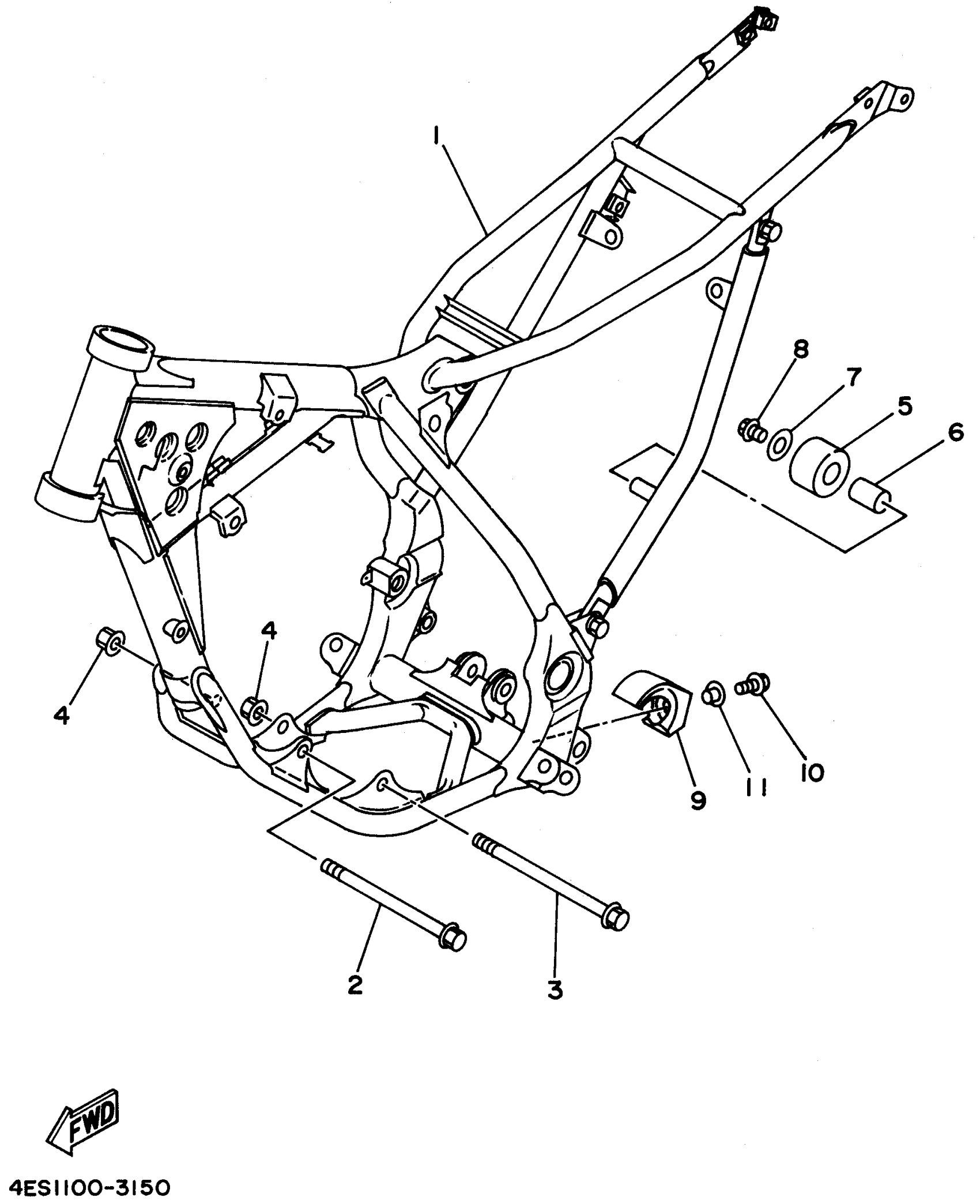

Yamaha YZ80H1 (YZ80H1) 1996 FRAME Diagram

#

Description
Price

1

FRAME YZ80E1

4ES-21110-01-UJ

Unavailable

2

BOLT, FLANGE

95817-08125-00

$7.72

3

BOLT,FLANGE

95817-08135-00

Unavailable

4

NUT, SELF-LOCKING

90185-08169-00

$7.09

5

TENSIONER

30X-22178-00-00

$29.42

6

BUSH

4V4-22184-00-00

$3.57

7

WASHER, PLATE(8AT)

90201-081R9-00

$6.32

8

BOLT, SMALL FLANGE

95027-08012-00

$6.89

9

TENSIONER SET

99999-04397-00

$17.12

10

BOLT, WITH WASHER(81H)

90119-06118-00

$6.17

11

COLLAR (3H5)

90387-060A3-00

$7.22
