1993 Yamaha YZ80E (YZ80E1) Shift Shaft Diagram

← All diagrams

Find the part on the Shift Shaft diagram for your 1993 Yamaha YZ80E (YZ80E1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

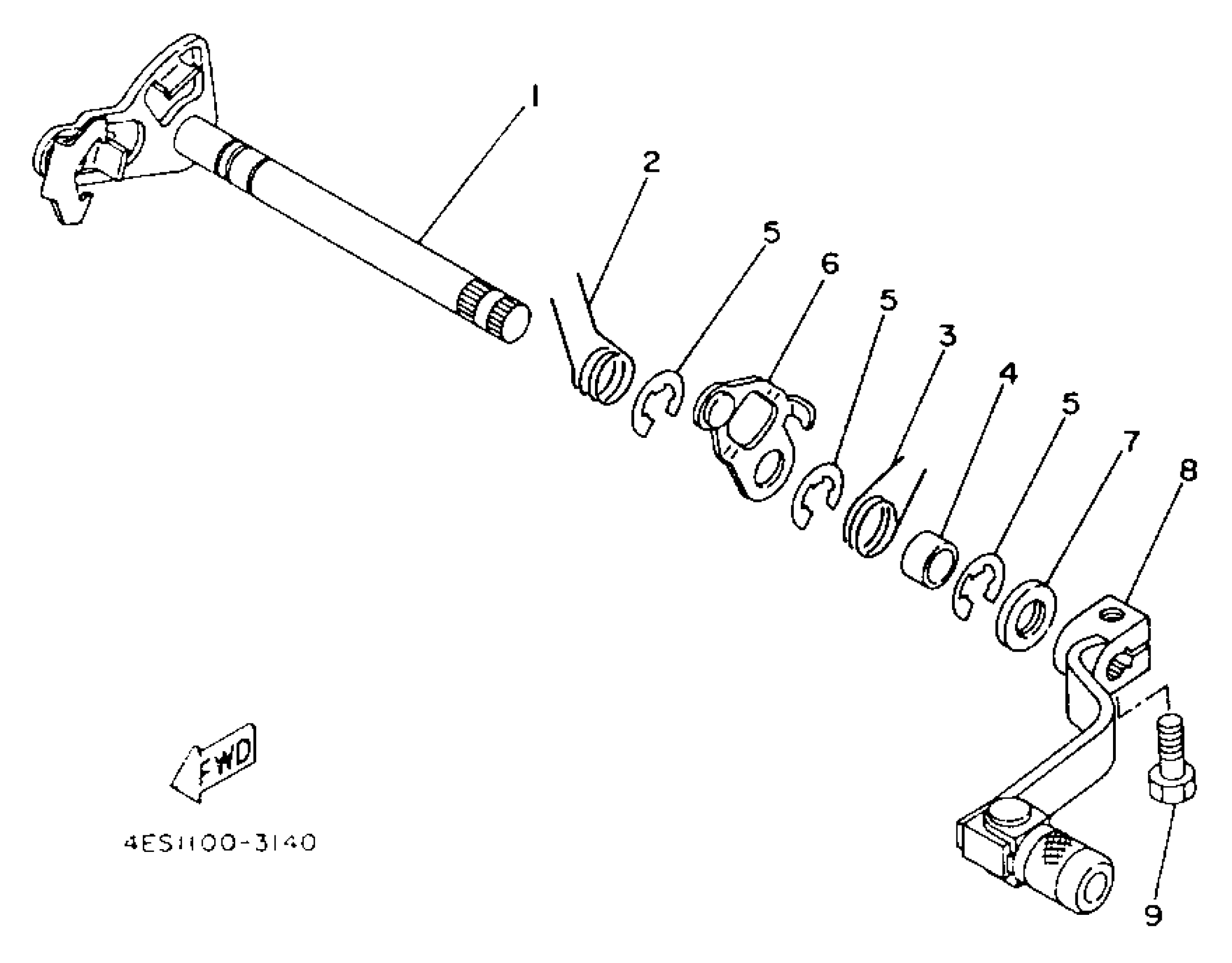

1993 Yamaha YZ80E (YZ80E1) Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT SHAFT ASSY

4ES-18101-00-00

1
Out of stock

2

SPRING, TORSION (10V)

90508-32553-00

1
Out of stock

3

SPRING, TORSION

90508-242A6-00

1
Out of stock

4

COLLAR

90387-126Y7-00

1
Out of stock

5

CIRCLIP

99006-10600-00

1

$6.91

In stock

6

STOPPER LEVER ASSY

4BA-18140-00-00

1
Out of stock

7

OIL SEAL

93101-12173-00

1
Out of stock

8

SHIFT PEDAL ASSY

2HF-18110-02-00

1

$52.56

In stock

9

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock
