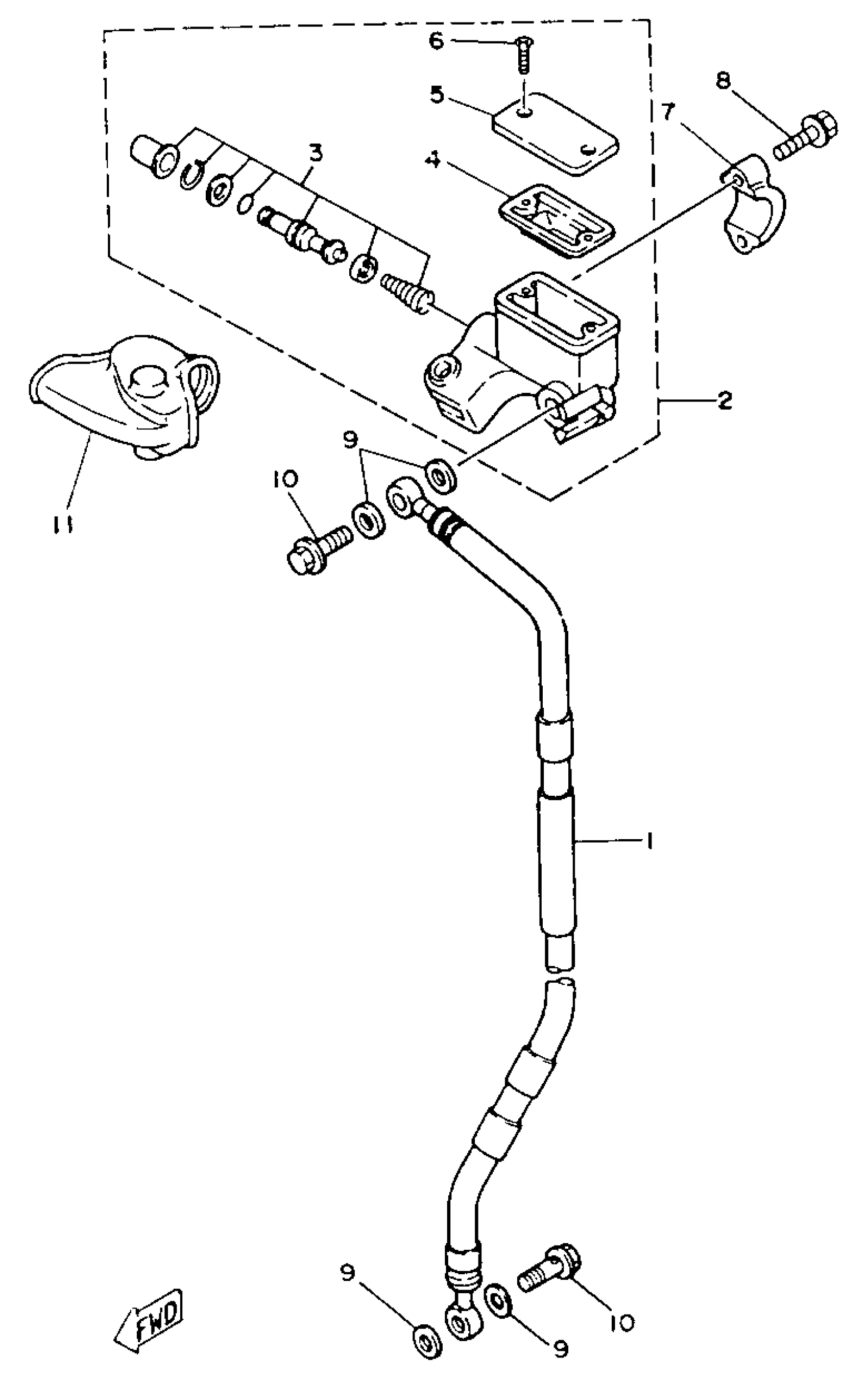

Yamaha YZ80E1 (YZ80E) 1993 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

HOSE,BRAKE 1

99999-02972-00

Unavailable

2

MSTR CYLND SUB ASY

2VN-25870-01-00

Unavailable

3

CYLINDER KIT, MASTER

56A-W0041-00-00

$56.31

4

DIAPHRAGM, RESERVOIR

56A-25854-00-00

$31.22

5

CAP, RESERVOIR

2VN-25852-02-00

$13.60

6

SCREW, FLAT

98707-04012-00

$1.34

7

BRACKET, MASTER CYLINDER

56A-25867-00-00

$23.01

8

BOLT, SMALL FLANGE

95027-06025-00

$2.95

9

WASHER, PLATE(481)

90201-10118-00

Unavailable

10

BOLT, UNION(3GM)

90401-10159-00

$8.26

11

COVER, HANDLE LEVER 1

56A-26372-01-00

$20.00
