2025 Yamaha YZ65 (YZ65S) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 2025 Yamaha YZ65 (YZ65S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

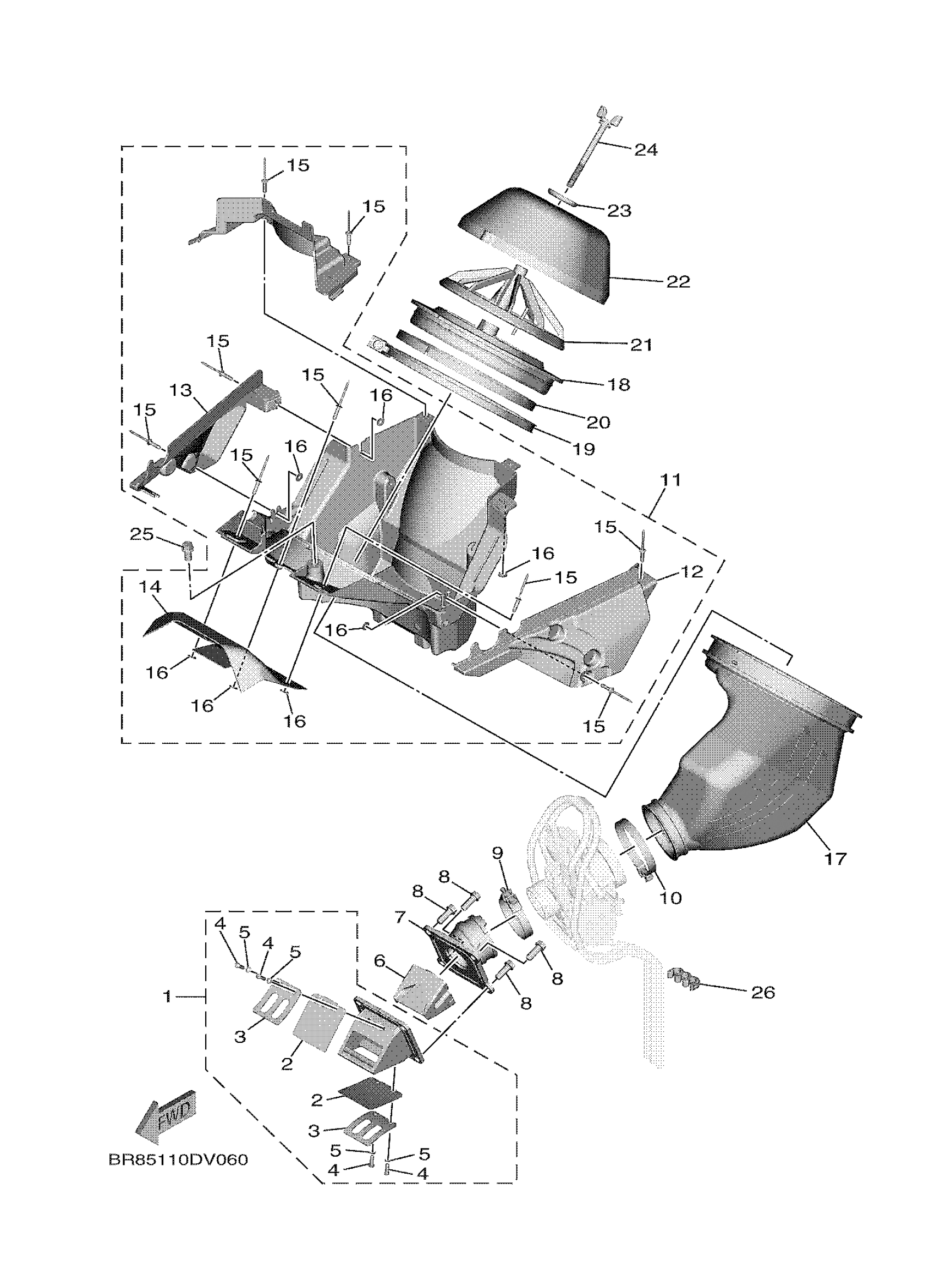

2025 Yamaha YZ65 (YZ65S) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

BR8-13610-00-00

1

$89.92

In stock

2

REED, VALVE

BR8-13613-00-00

1

$9.23

In stock

3

STOPPER, REED VALVE

4ES-13616-00-00

1

$12.20

In stock

4

SCREW, PAN HEAD(78G)

98580-03006-00

—

$6.91

In stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

SPACER, REED VALVE

BR8-13625-00-00

—

$13.08

In stock

7

JOINT, CARBURETOR

BR8-13565-00-00

1

$44.68

In stock

8

BOLT, FLANGE DEEP RECESS

95E32-06016-00

1
Out of stock

9

BAND

4TR-13474-02-00

1

$9.52

In stock

10

HOSE CLAMP ASSY

90450-56001-00

1

$14.77

In stock

11

AIR CLEANER CASE ASSY

BR8-14401-01-00

—

$66.52

In stock

12

COVER, CLEANER CASE 1

BR8-1441A-00-00

1

$9.66

In stock

13

COVER, CLEANER CASE 2

BR8-1441E-00-00

1

$5.71

In stock

14

COVER 1

BR8-14417-01-00

—

$9.97

In stock

15

RIVET, BLIND

90267-32196-00

1

$0.89

In stock

16

WASHER, PLATE 8077743700

90201-03313-00

—

$5.20

In stock

17

JOINT, AIR CLEANER 1

BR8-14453-01-00

—

$71.58

In stock

18

HOLDER, GUIDE

BR8-14459-00-00

—

$17.23

In stock

19

BAND

BR8-14455-00-00

—

$32.63

In stock

20

SPACER

BR8-14442-00-00

—

$5.46

In stock

21

GUIDE

BR8-14458-00-00

—

$10.66

In stock

22

ELEMENT, AIR CLEANER

BR8-14451-01-00

—

$42.00

In stock

23

WASHER (4H7)

90209-06096-00

—
Out of stock

24

BOLT, WING

90122-06005-00

—

$10.05

In stock

25

BOLT, FLANGE DEEP RECESS

95E32-06012-00

—

$0.88

In stock

26

CLAMP

90464-07M05-00

1

$2.92

In stock
