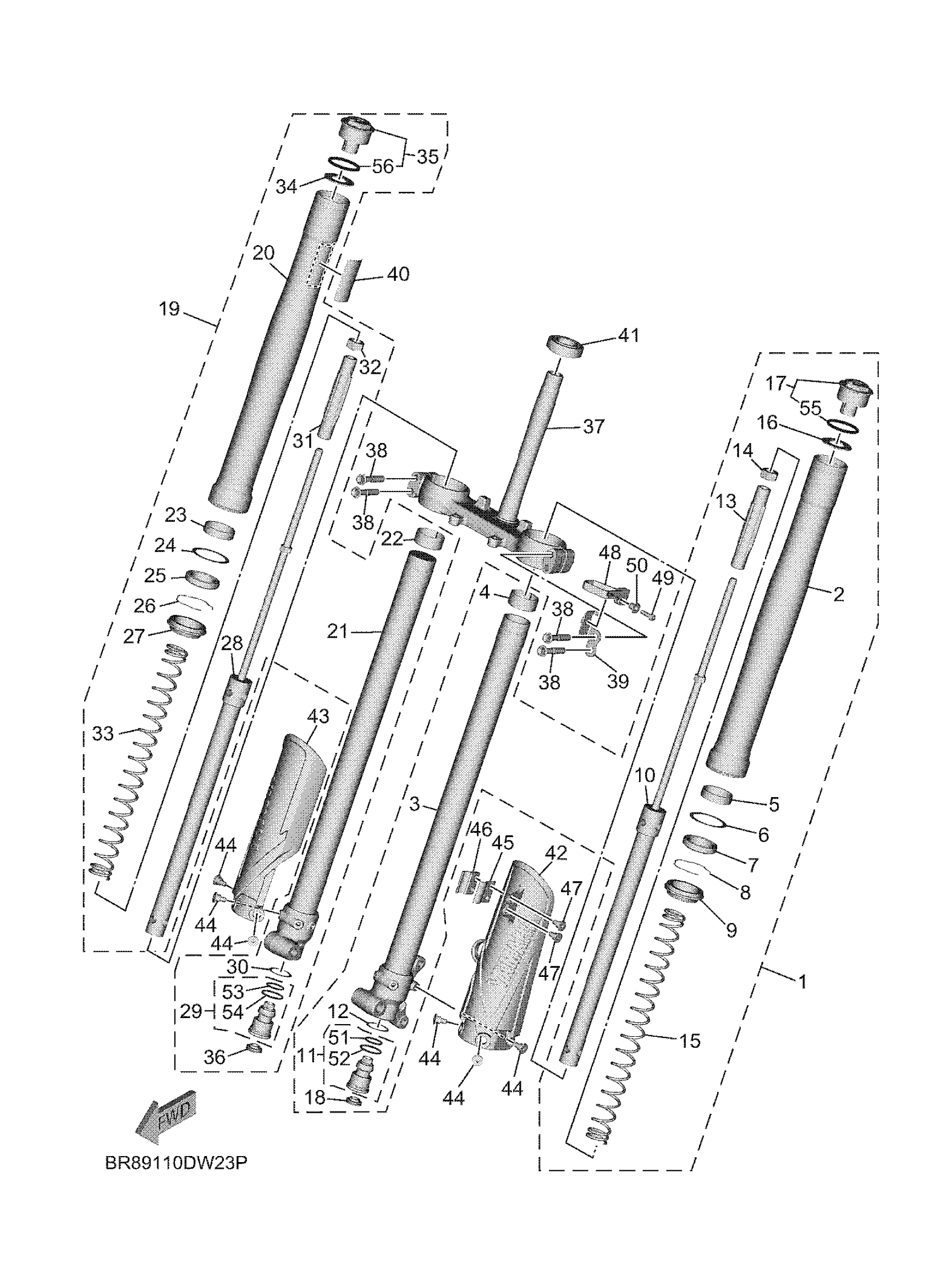

Yamaha YZ65P (YZ65) BR8L 2023 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L

BR8-23102-02-00

$599.99

2

TUBE, OUTER 2

BR8-23136-00-00

Unavailable

3

INNER TUBE COMP.2

BR8-23120-00-00

Unavailable

4

PISTON, FRONT FORK

5PA-23171-00-00

$25.18

5

METAL, SLIDE 1

5PA-23125-00-00

$12.09

6

WASHER, SPRING UPPER

5K5-23149-00-00

$7.30

7

OIL SEAL

4ES-23145-00-00

$17.34

8

RING, SNAP

4A1-23156-00-00

$4.44

9

SEAL, DUST

4ES-23144-00-00

$19.21

10

CYLINDER COMP., FR

BR8-23170-01-00

$206.80

11

VALVE COMP.

BR8-2316A-01-00

Unavailable

12

GASKET

2HH-23158-L0-00

$8.88

13

SEAT, SPRING UPPER

BR8-23142-01-00

$20.29

14

NUT

3XJ-23357-L0-00

$0.72

15

SPRING, FRONT FORK

BR8-23141-20-00

$44.17

16

WASHER, SPRING UPPER

5PA-23149-00-00

Unavailable

17

BOLT, CAP

BR8-23111-01-00

Unavailable

18

PLUG, HOLE

3JD-2312G-L1-00

Unavailable

19

FRONT FORK ASSY (R

BR8-23103-02-00

Unavailable

20

TUBE, OUTER 2

BR8-23136-00-00

Unavailable

21

INNER TUBE COMP.1

BR8-23110-00-00

Unavailable

22

PISTON, FRONT FORK

5PA-23171-00-00

$25.18

23

METAL, SLIDE 1

5PA-23125-00-00

$12.09

24

WASHER, SPRING UPPER

5K5-23149-00-00

$7.30

25

OIL SEAL

4ES-23145-00-00

$17.34

26

RING, SNAP

4A1-23156-00-00

$4.44

27

SEAL, DUST

4ES-23144-00-00

$19.21

28

CYLINDER COMP., FR

BR8-23170-01-00

$206.80

29

VALVE COMP.

BR8-2316A-01-00

Unavailable

30

GASKET

2HH-23158-L0-00

$8.88

31

SEAT, SPRING UPPER

BR8-23142-01-00

$20.29

32

NUT

3XJ-23357-L0-00

$0.72

33

SPRING, FRONT FORK

BR8-23141-20-00

$44.17

34

WASHER, SPRING UPPER

5PA-23149-00-00

Unavailable

35

BOLT, CAP

BR8-23111-01-00

Unavailable

36

PLUG, HOLE

3JD-2312G-L1-00

Unavailable

37

UNDER BRACKET COMP.

BR8-23340-00-00

Unavailable

38

BOLT 1

5PA-23346-00-00

Unavailable

39

GUIDE, CABLE

BR8-2331E-00-00

Unavailable

40

SEAL

BR8-21268-00-00

Unavailable

41

BEARING(4ES)

93332-00079-00

Unavailable

42

PROTECTER COMP., 1

BR8-2314H-20-00

Unavailable

43

PROTECTER COMP., 2

BR8-2314J-20-00

Unavailable

44

BOLT

90109-06232-00

Unavailable

45

CLAMP

17D-23466-00-00

Unavailable

46

CLAMP

17D-23467-00-00

Unavailable

47

BOLT

90109-06232-00

Unavailable

48

GUIDE, CABLE

5TJ-23389-80-00

Unavailable

49

BOLT, SOCKET

91317-05016-00

Unavailable

50

COLLAR

90387-05065-00

Unavailable

51

O-RING

4DA-23147-L1-00

Unavailable

52

GASKET

276-23114-02-00

Unavailable

53

O-RING

4DA-23147-L1-00

Unavailable

54

GASKET

276-23114-02-00

Unavailable

55

O-RING

4V4-23188-L1-00

Unavailable

56

O-RING

4V4-23188-L1-00

Unavailable
