2020 Yamaha YZ65 (YZ65L) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 2020 Yamaha YZ65 (YZ65L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

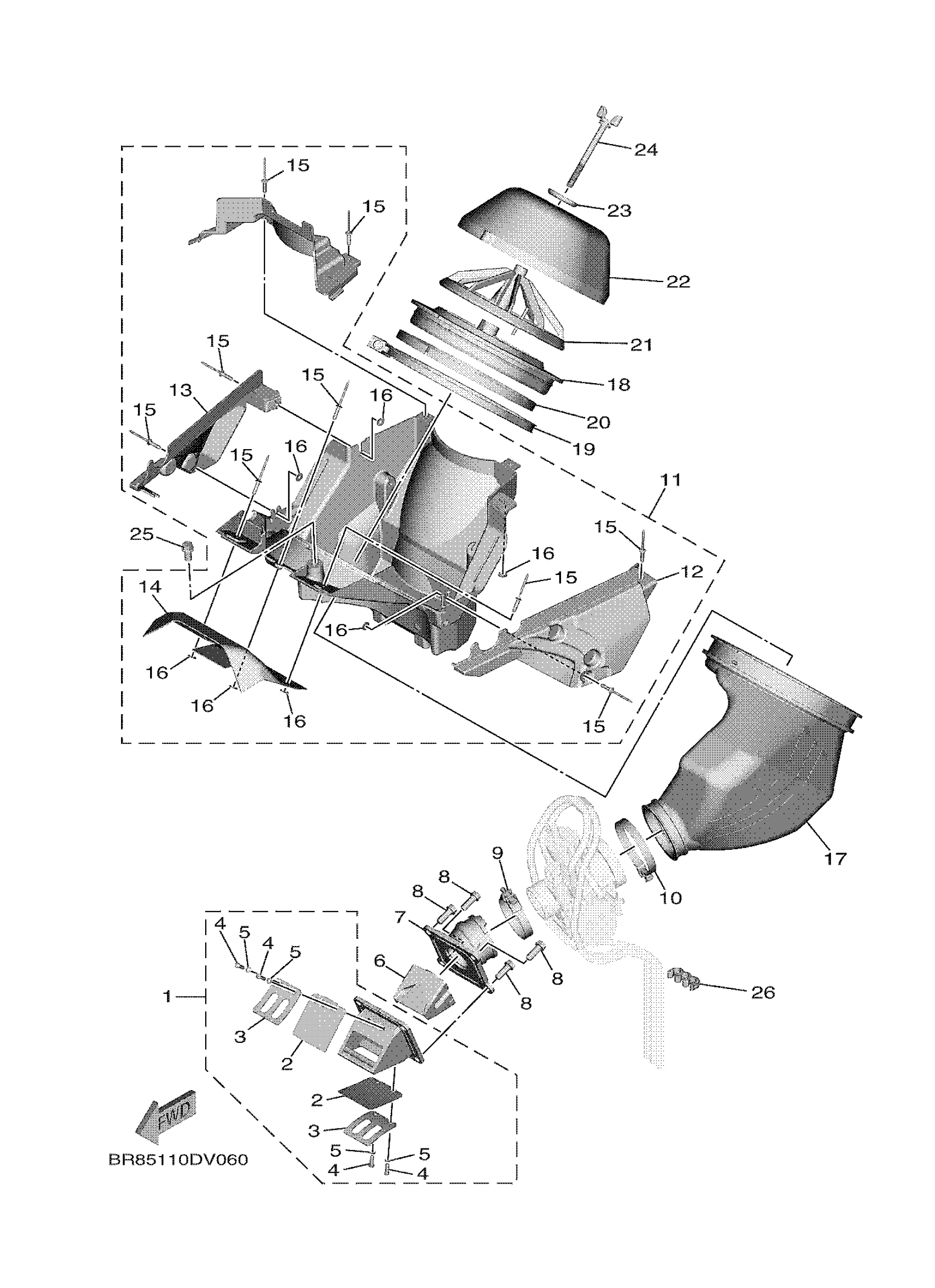

2020 Yamaha YZ65 (YZ65L) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

BR8-13610-00-00

1
Out of stock

2

REED, VALVE

BR8-13613-00-00

1
Out of stock

3

STOPPER, REED VALVE

4ES-13616-00-00

1
Out of stock

4

SCREW, PAN HEAD(78G)

98580-03006-00

—
Out of stock

5

WASHER, SPRING

92990-03100-00

1
Out of stock

6

SPACER, REED VALVE

BR8-13625-00-00

—
Out of stock

7

JOINT, CARBURETOR

BR8-13565-00-00

1
Out of stock

8

BOLT, FLANGE DEEP RECESS

95E32-06016-00

1
Out of stock

9

BAND

4TR-13474-02-00

1
Out of stock

10

HOSE CLAMP ASSY

90450-56001-00

1
Out of stock

11

AIR CLEANER CASE ASSY

BR8-14401-00-00

—
Out of stock

12

COVER, CLEANER CASE 1

BR8-1441A-00-00

1
Out of stock

13

COVER, CLEANER CASE 2

BR8-1441E-00-00

1
Out of stock

14

COVER 1

BR8-14417-00-00

1
Out of stock

15

RIVET, BLIND

90267-32196-00

1
Out of stock

16

WASHER, PLATE 8077743700

90201-03313-00

—
Out of stock

17

JOINT, AIR CLEANER 1

BR8-14453-00-00

—
Out of stock

18

HOLDER, GUIDE

BR8-14459-00-00

—
Out of stock

19

BAND

BR8-14455-00-00

—
Out of stock

20

SPACER

BR8-14442-00-00

—
Out of stock

21

GUIDE

BR8-14458-00-00

—
Out of stock

22

ELEMENT, AIR CLEANER

BR8-14451-01-00

—
Out of stock

23

WASHER (4H7)

90209-06096-00

—
Out of stock

24

BOLT, WING

90122-06005-00

—
Out of stock

25

BOLT, FLANGE DEEP RECESS

95E32-06012-00

—
Out of stock

26

CLAMP

90464-07M05-00

1
Out of stock
