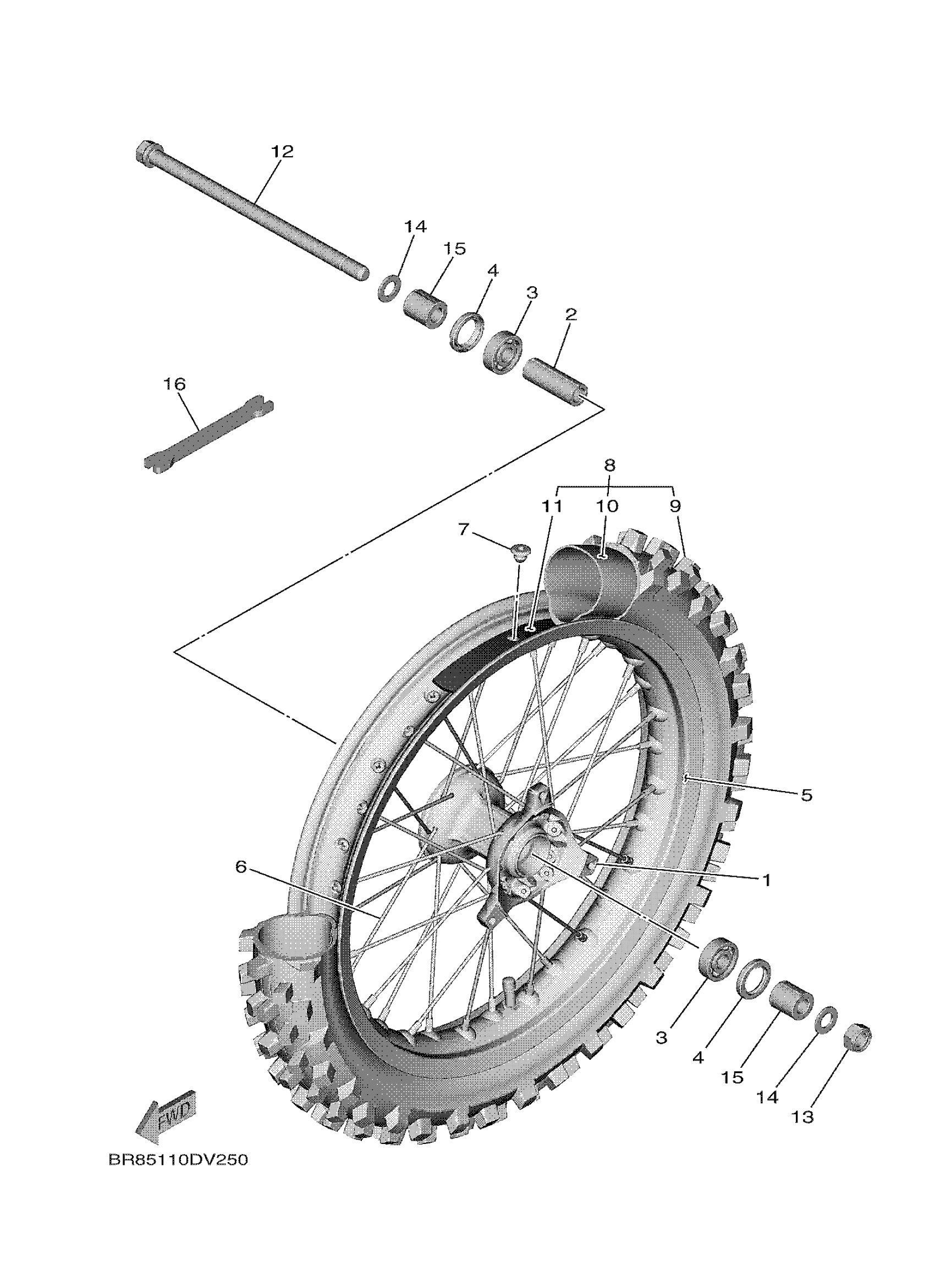

Yamaha YZ65L (YZ65) BR85 2020 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

4ES-25111-01-00

$165.82

2

SPACER, BEARING

BR8-25117-00-00

$22.25

3

BEARING(3WF)

93306-20119-00

$27.33

4

OIL SEAL (22X32X5-818)

93102-22087-00

$10.25

5

RIM (1.60-14)

94416-14007-00

$245.34

6

SPOKE SET, FRONT

BR8-25104-00-00

$42.62

7

GROMMET (397)

90480-10068-00

$6.32

8

FRONT TIRE SET

BR8-25108-01-00

$85.74

12

BOLT, FLANGE

90105-12120-00

$15.50

13

NUT, SELF-LOCKING

90185-12010-00

$6.70

14

WASHER, PLATE

90201-12055-00

$5.96

15

COLLAR, WHEEL

BR8-25183-00-00

$13.16

16

WRENCH, HEXAGON

1RH-28166-00-00

$4.65
