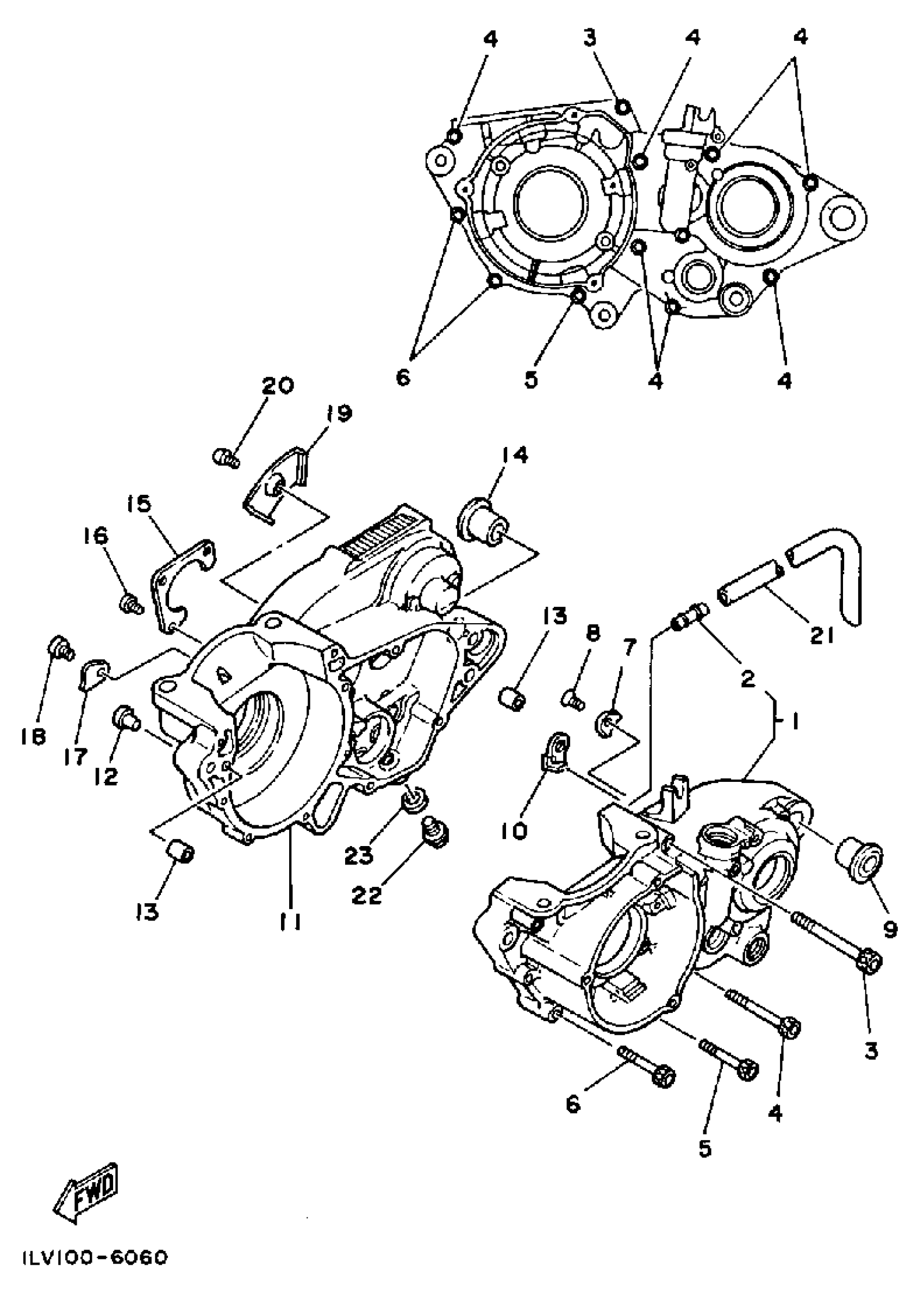

Yamaha YZ490T (YZ490T) 1987 CRANKCASE Diagram

#

Description
Price

1

. CRANKCASE 1

3R5-W1511-01-00

Unavailable

2

. CONNECTOR, SUCTION PIPE

137-13115-01-00

$3.31

3

BOLT, SOCKET

91317-06075-00

$3.82

4

BOLT,SOCKET

91317-06060-00

$3.26

5

BOLT,SOCKET

91317-06050-00

$3.37

6

BOLT,SOCKET

91317-06045-00

$3.37

7

PLATE, BEARING COVER

3SP-15381-00-00

Unavailable

8

SCREW, FLAT

98707-06012-00

$6.18

9

COLLAR

90387-160H4-00

Unavailable

10

HOLDER

3R4-26393-00-00

$86.99

11

. CRANKCASE 2

3R5-15121-05-00

Unavailable

12

PLUG (17J)

90338-07124-00

$8.55

13

PIN, DOWEL

99530-12016-00

$4.12

14

COLLAR

90387-160H4-00

Unavailable

15

PLATE, BEARING COVER

23X-15381-00-00

Unavailable

16

SCREW, PAN HEAD(62J)

97885-06012-00

$2.78

17

HOLDER

4V4-15118-00-00

Unavailable

18

SCREW PAN HEAD

98580-06010-00

Unavailable

19

PLATE

3R4-15113-00-00

Unavailable

20

SCREW, PAN HEAD(62J)

97885-06012-00

$2.78

21

HOSE (L1500)

90445-084J0-00

Unavailable

22

PLUG, STRAIGHT SCREW (22F)

90340-12097-00

Unavailable

23

GASKET (3JD1)

90430-12207-00

Unavailable
