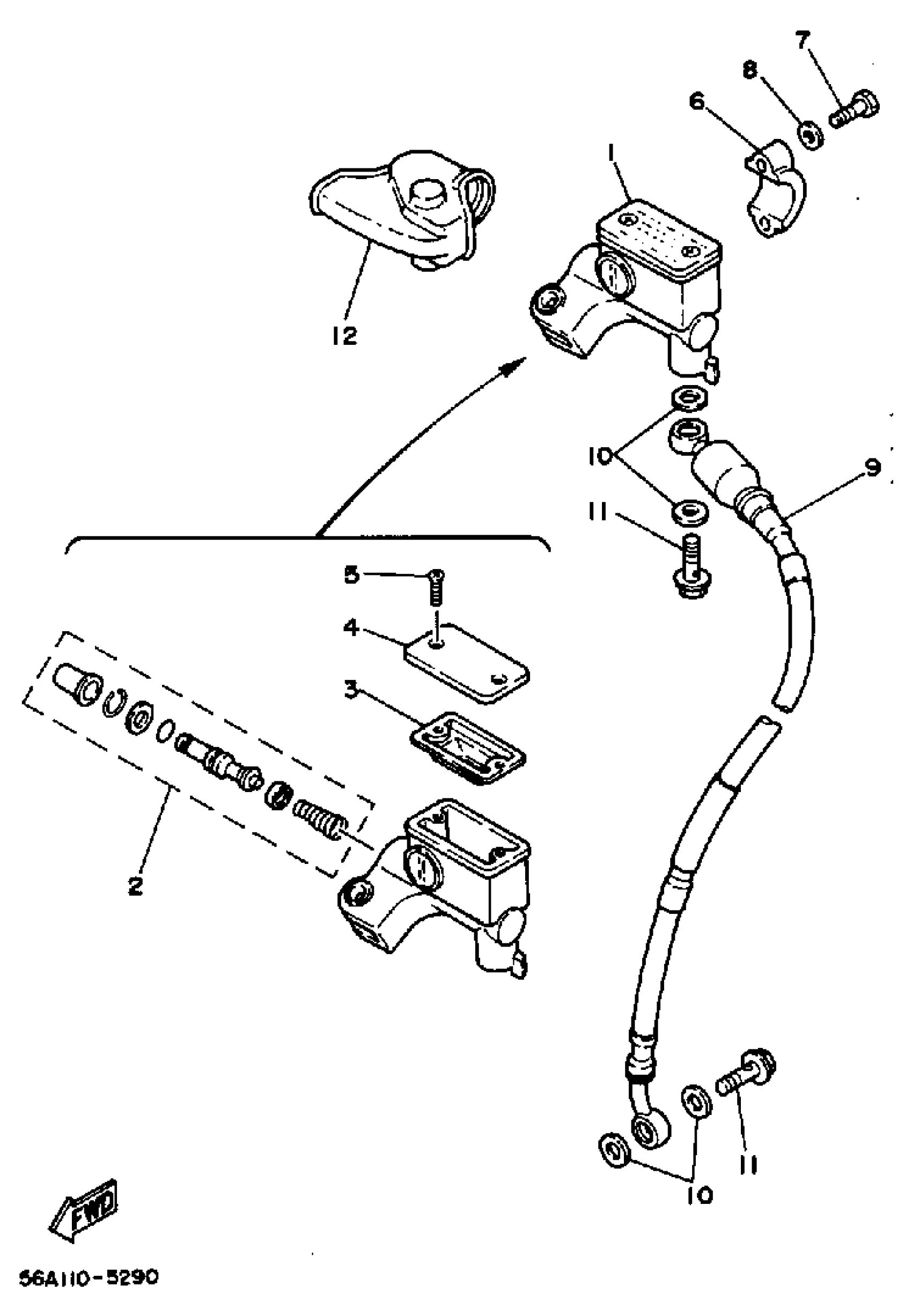

Yamaha YZ490S (YZ490) 1986 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB-ASSEMBLY

56A-25870-01-00

Unavailable

2

CYLINDER KIT, MASTER

56A-W0041-00-00

$56.31

3

DIAPHRAGM, RESERVOIR

56A-25854-00-00

$31.22

4

CAP, RESERVOIR

2VN-25852-02-00

$13.60

5

SCREW, FLAT

98707-04012-00

$1.34

6

BRACKET, MASTER CYLINDER

56A-25867-00-00

$23.01

7

BOLT, HEXAGON

97017-06025-00

$2.78

8

WASHER(6TA)

92907-06600-00

$0.73

9

HOSE, BRAKE 1

56A-25872-00-00

Unavailable

10

WASHER, PLATE(481)

90201-10118-00

Unavailable

11

BOLT, UNION(3GM)

90401-10159-00

Unavailable

12

COVER, HANDLE LEVER 1

56A-26372-01-00

$20.00
