1985 Yamaha YZ490N (YZ490N) Side Cover Diagram

← All diagrams

Find the part on the Side Cover diagram for your 1985 Yamaha YZ490N (YZ490N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

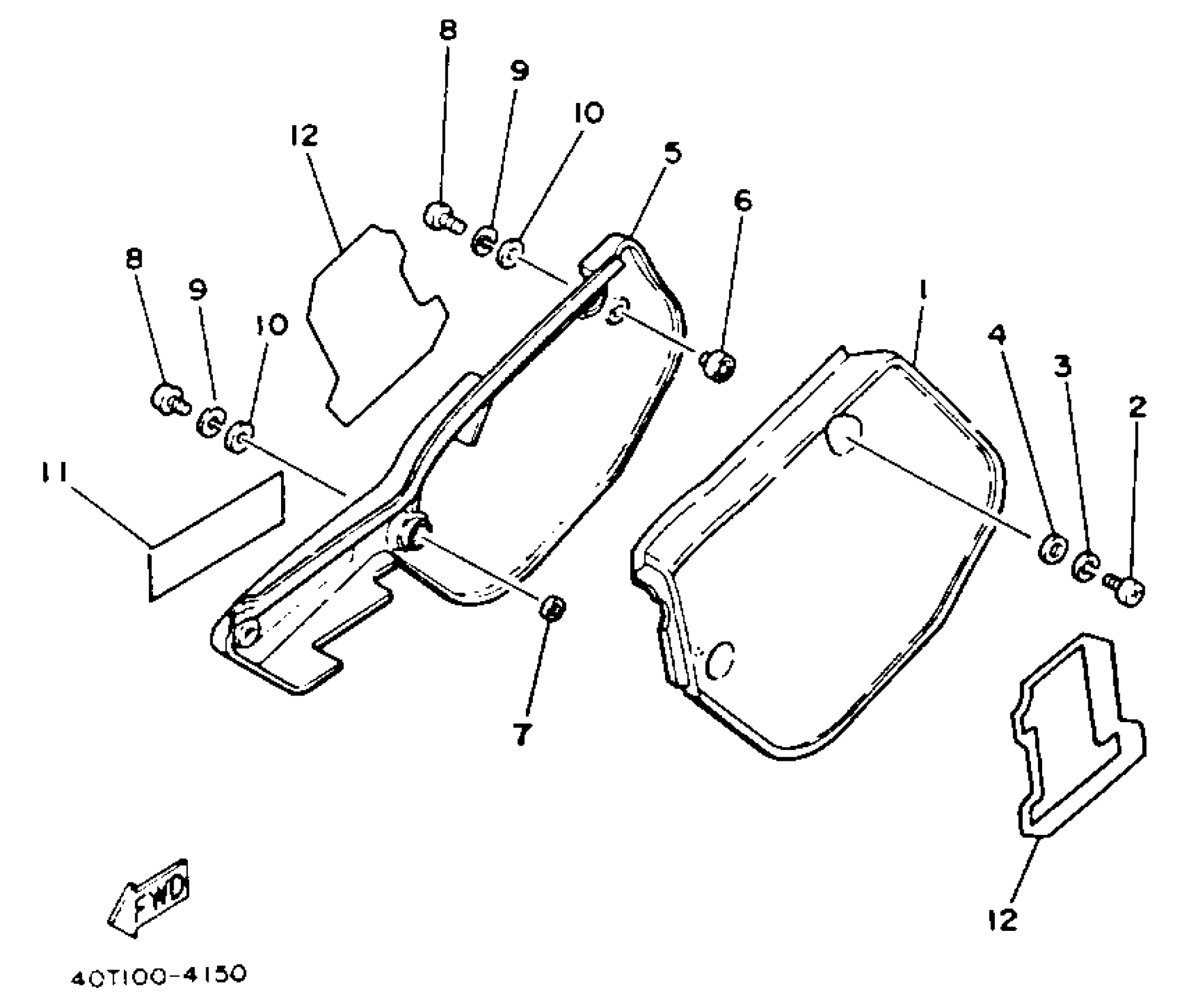

1985 Yamaha YZ490N (YZ490N) Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

39X-21711-11-98

1
Out of stock

2

SCREW, PAN

98507-06014-00

1
Out of stock

3

WASHER, SPRING

92995-06100-00

1
Out of stock

4

WASHER, PLATE (583 REAR FENDER

90201-06571-00

1
Out of stock

5

COVER, SIDE 2

39X-21721-11-98

1
Out of stock

6

DAMPER, LOCATING 1

22W-24181-00-00

1
Out of stock

7

WASHER, PLAIN

92990-08200-00

1
Out of stock

7

SCREW, PAN

98507-06014-00

1
Out of stock

9

WASHER, SPRING

92995-06100-00

1
Out of stock

10

WASHER, PLATE (583 REAR FENDER

90201-06571-00

1
Out of stock

11

EMBLEM

40T-21737-10-00

1
Out of stock

12

EMBLEM 2

3R2-21782-00-00

1
Out of stock
