1985 Yamaha YZ490N (YZ490N) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1985 Yamaha YZ490N (YZ490N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

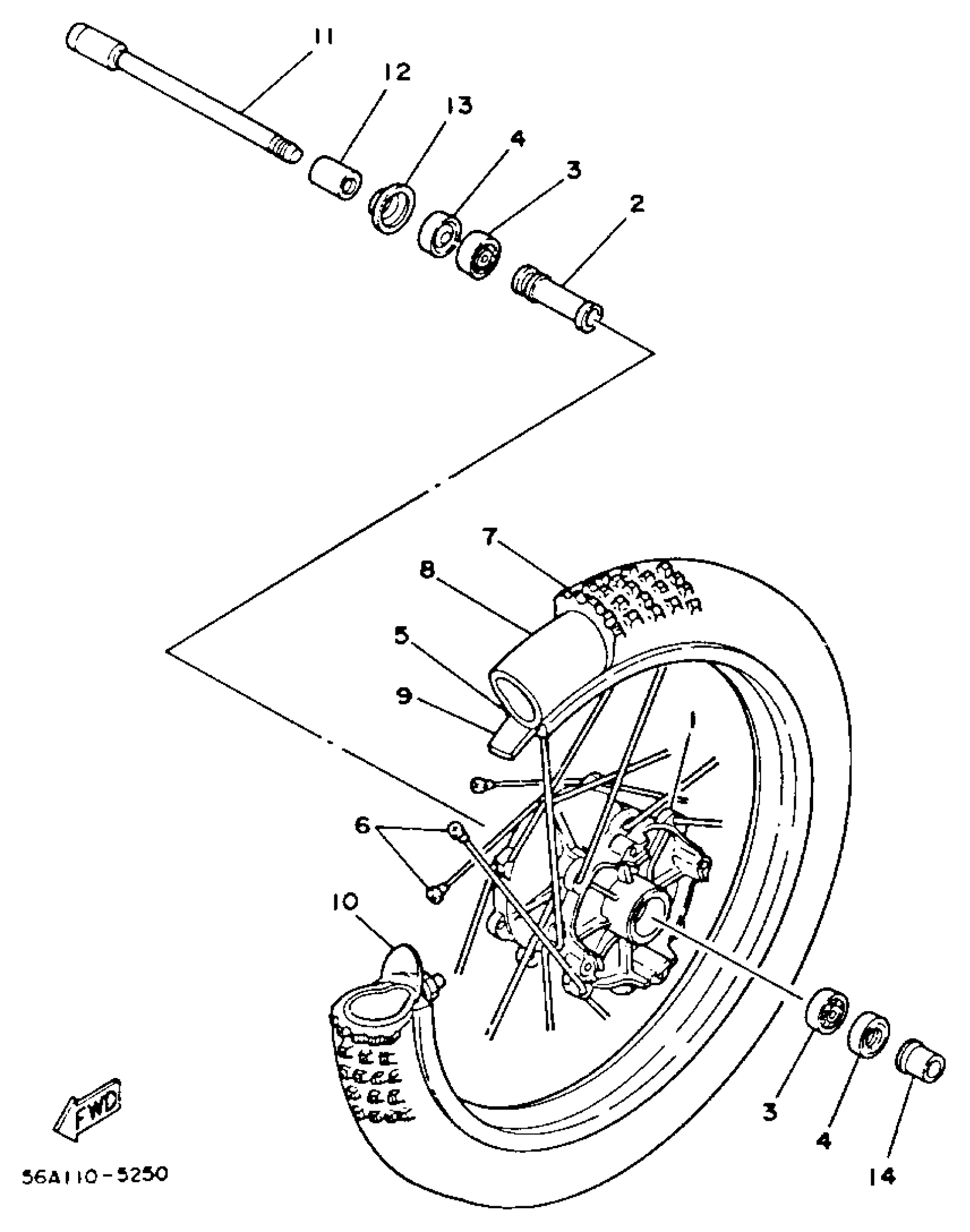

1985 Yamaha YZ490N (YZ490N) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(56A-25111-00-98)

1
Out of stock

2

SPACER

90560-15116-00

1
Out of stock

3

BEARING

93306-20205-00

1

$32.63

In stock

4

OIL SEAL(38V)

93106-20021-00

1

$11.48

In stock

5

RIM 1.60

94416-21412-00

1
Out of stock

6

SPOKE SET, FRONT

56A-25104-00-00

1
Out of stock

7

100/90-21 M23 (TT)

(94110-210F9-00)

1
Out of stock

8

TUBE 90190-21

94209-21229-00

—

$34.40

In stock

9

BAND, RIM (2A6)

94330-21084-00

1

$13.89

In stock

10

SPACER, BEAD

4V5-25194-00-00

1
Out of stock

11

AXLE, WHEEL

3R4-25181-01-00

1
Out of stock

12

COLLAR (34L)

90387-152J3-00

1

$18.75

In stock

13

COVER, HUB DUST

322-25118-00-00

1

$16.17

In stock

14

COLLAR

90387-157L9-00

1
Out of stock
