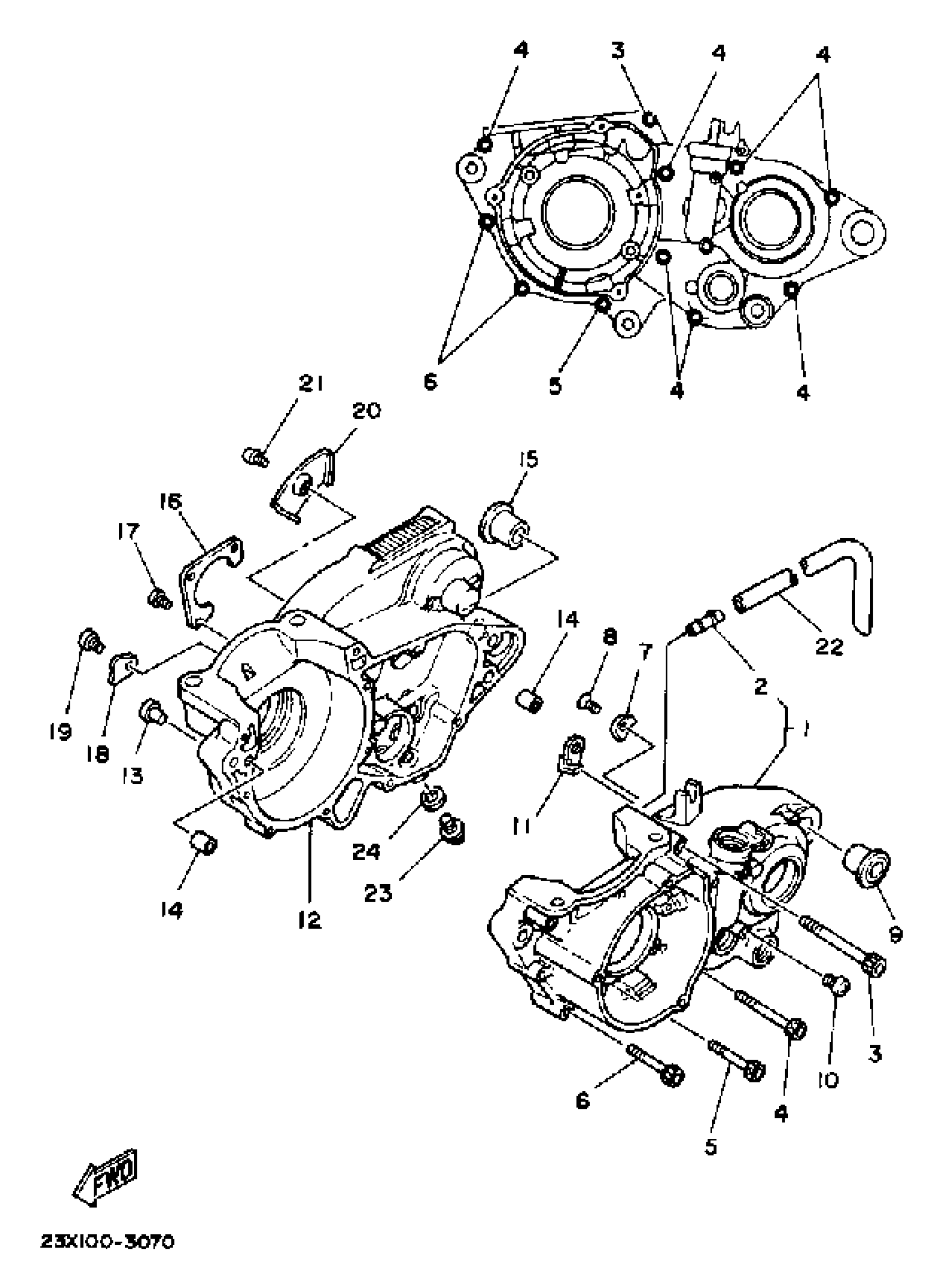

Yamaha YZ490L (YZ490L) 1984 CRANKCASE Diagram

#

Description
Price

1

. CRANKCASE 1

3R5-W1511-01-00

Unavailable

2

. CONNECTOR, SUCTION PIPE

137-13115-01-00

$3.26

3

BOLT, SOCKET

91317-06075-00

$3.56

4

BOLT,SOCKET

91317-06060-00

$3.05

5

BOLT,SOCKET

91317-06050-00

$3.14

6

BOLT,SOCKET

91317-06045-00

$3.14

7

PLATE, BEARING COVER

3AK-15383-01-00

$7.79

8

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

Unavailable

9

COLLAR

90387-160H4-00

Unavailable

10

SCREW, PAN

98517-06012-00

$2.93

11

HOLDER

3R4-26393-00-00

$83.59

12

. CRANKCASE 2

3R5-15121-05-00

Unavailable

13

PLUG (17J)

90338-07124-00

$7.97

14

PIN, DOWEL

99530-12016-00

$3.85

15

COLLAR

90387-160H4-00

Unavailable

16

PLATE, BEARING COVER

23X-15381-00-00

Unavailable

17

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

18

HOLDER

4V4-15118-00-00

Unavailable

19

SCREW PAN HEAD

98580-06010-00

Unavailable

20

PLATE

3R4-15113-00-00

Unavailable

21

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

22

HOSE (L1500)

90445-084J0-00

Unavailable

23

PLUG, STRAIGHT SCREW (22F)

90340-12097-00

Unavailable

24

GASKET (3JD1)

90430-12207-00

Unavailable
