1981 Yamaha YZ465H (YZ465H) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1981 Yamaha YZ465H (YZ465H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

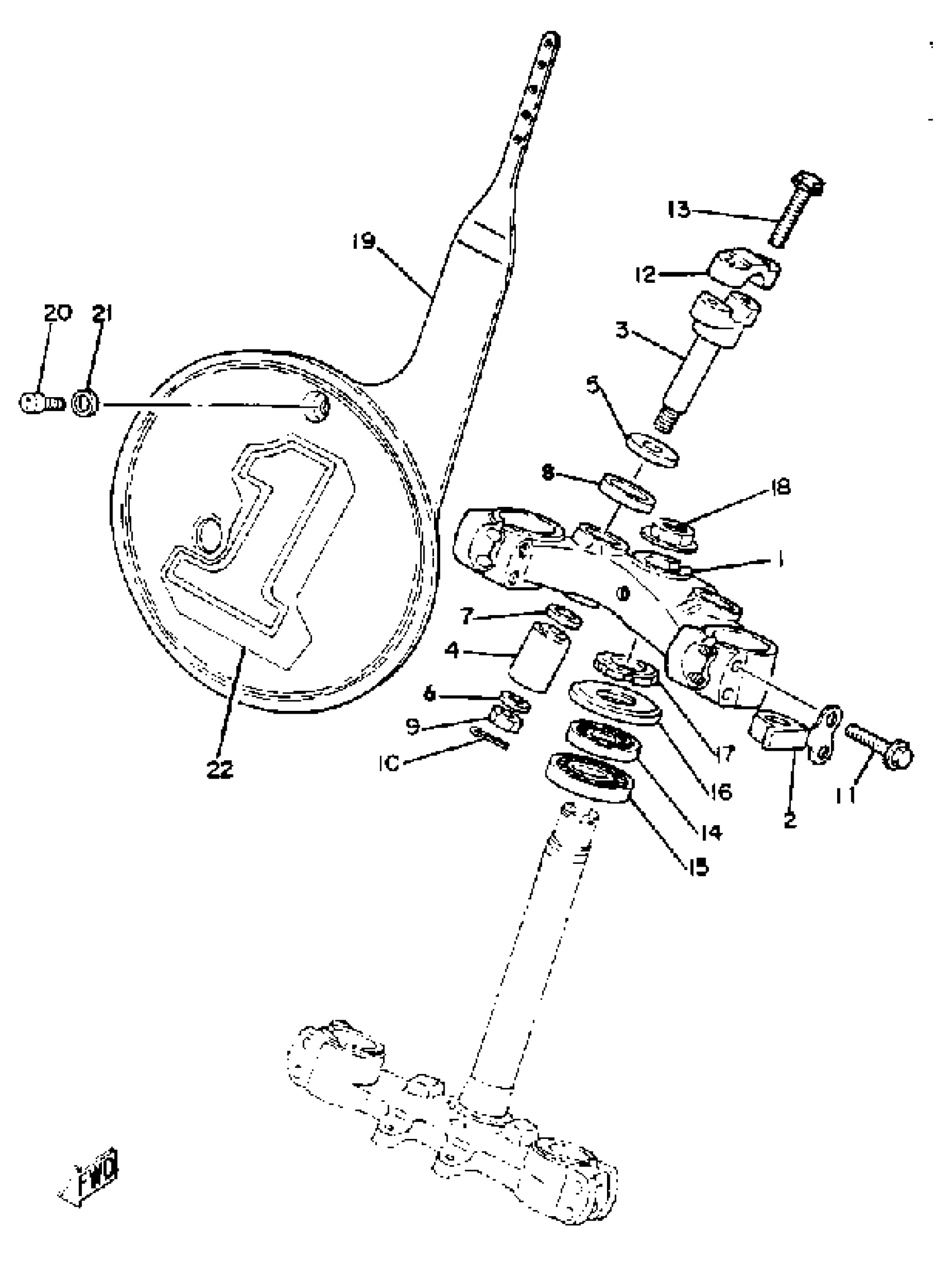

1981 Yamaha YZ465H (YZ465H) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CROWN, HANDLE

4V4-23435-00-98

1
Out of stock

2

HOLDER, WIRE

3R4-23317-00-00

1

$29.67

In stock

3

HOLDER, HANDLE LOWER

4AA-23442-01-98

1
Out of stock

4

BUSHING,REAR ARM

307-22123-00-00

1

$18.21

In stock

5

WASHER, PLATE

90201-123E8-00

1
Out of stock

6

WASHER, PLATE (3J6)

90201-100A1-00

1

$6.71

In stock

7

COLLAR (4V4)

90387-121E8-00

1

$12.06

In stock

8

WASHER, PLATE (462)

90202-14077-00

1

$3.57

In stock

9

NUT, U

90185-10037-00

1

$6.68

In stock

10

PIN, COTTER

91490-20025-00

1

$1.31

In stock

11

BOLT, FLANGE

95814-08040-00

1

$3.15

In stock

12

HOLDER, HANDLE UPPER

1E6-23441-00-00

1

$22.38

In stock

13

BOLT, FLANGE

95817-08035-00

1

$6.68

In stock

14

BRG, TAPERED ROLLER (409)

93332-00001-00

1
Out of stock

15

1

$60.13

In stock

16

COVER, BALL RACE 2

1W1-23416-00-00

—

$25.83

In stock

17

NUT

90179-25004-00

—

$20.78

In stock

18

NUT

90179-22330-00

1
Out of stock

19

PLATE, NUMBER

5X6-23485-01-00

1
Out of stock

20

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

21

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

22

EMBLEM 2

(4V4-21782-00-00)

1
Out of stock
