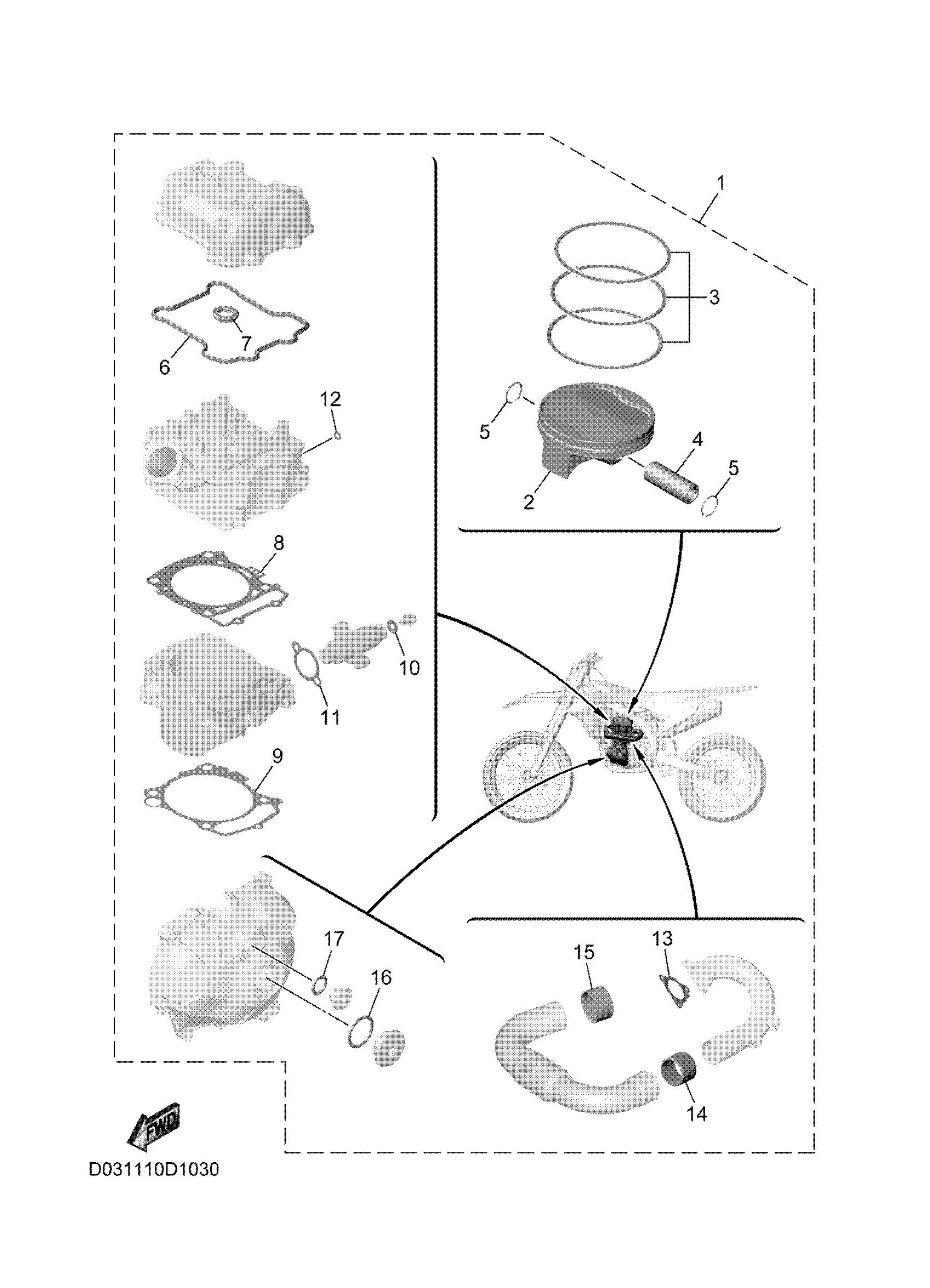

Yamaha YZ450FTL (YZ450F) D031 2026 4 PISTON REBUILT KIT Diagram

PISTON REBUILT KIT

BHR-WB033-00-00

$305.99

PISTON (STD)

BHR-11631-00-00

$104.70

PISTON RING SET (STD)

B2W-11603-00-00

$37.78

PIN, PISTON

BR9-11633-10-00

$56.42

CIRCLIP (2F1)

93450-19052-00

$5.17

GASKET, HEAD COVER 1

BHR-11193-00-00

$19.05

GASKET, HEAD COVER 2

1SM-11194-00-00

$13.33

GASKET, CYLINDER HEAD 1

BHR-11181-00-00

$23.36

GASKET, CYLINDER

BHR-11351-00-00

$14.11

GASKET

5SL-12214-00-00

$5.96

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.05

GASKET 256113960000

90430-06014-00

Unavailable

GASKET, EXHAUST PIPE

33D-14613-00-00

$5.87

GASKET, MUFFLER

5XD-14714-00-00

$24.60

GASKET, MUFFLER

1SL-14714-00-00

$23.98

O-RING(1KT)

93210-27778-00

Unavailable

O-RING (2H9)

93210-14369-00

Unavailable
